Quick Details
-
Capacity:
-
200
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
OEM
-
Model Number:
-
CS-WH-IVS
-
Product name:
-
stainless steel solar water heater
-
Inner tank material:
-
SUS304-2B/SS316L
-
Application:
-
Domestic Hot Water
-
Inner tank:
-
Food Grade Stainless Steel SUS304-2B
-
Outer tank:
-
Stainelss Steel
-
Frame:
-
1.5mm Galvanized Steel
-
Name:
-
Solar Water Heater System
-
Item:
-
Sun Power Solar Water Heater
-
Warranty:
-
System /15 Years
-
Use:
-
Energy Saving Product
Quick Details
-
Type:
-
Evacuated Tube
-
Circulation Type:
-
Direct / Open Loop (Active)
-
Heating System:
-
Batch / ICS (Passive)
-
Capacity:
-
200
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
OEM
-
Model Number:
-
CS-WH-IVS
-
Product name:
-
stainless steel solar water heater
-
Inner tank material:
-
SUS304-2B/SS316L
-
Application:
-
Domestic Hot Water
-
Inner tank:
-
Food Grade Stainless Steel SUS304-2B
-
Outer tank:
-
Stainelss Steel
-
Frame:
-
1.5mm Galvanized Steel
-
Name:
-
Solar Water Heater System
-
Item:
-
Sun Power Solar Water Heater
-
Warranty:
-
System /15 Years
-
Use:
-
Energy Saving Product
High Quality Vacuum Tube Stainless Steel Low Pressure integrated non-pressure stainless steel Solar Water Heater :
1. Solar water heater of all glass evacuated tube collector integrated with storage tank, are ideal for use in houses and other applications where cheap, reliable hot water supply is required. They are simple, economic and practical.
2. As the specific gravities of hot water and cold water are different, cold water goes downward and hot water goes upward.
3. When cold water in evacuated tubes is heated, it becaomes lighter and goes to the water tank, while cold water in the tank goes down to the evacuated tubes.
4. Through this circulation, the cold water in the water tank will be gradually heated
.
S tainless Steel Low Pressure integrated Solar Water Heater Features:
1. Cheap and reliable solution, Simple structure, Easy installation
2. High efficiency
3. Withstands water pressure no more than 0.1MPa
4. Operated without any power supplying
5. Electric heater can be used as back up in rainy days
6. Hot water can be used directly, or can be used as a pre-heated
The design of this type is easy operate. The assistant tank is used to fill the cold water automatically. The design is scientific and reasonable, it could always provide hot water.
|
Place of Origin |
China |
Model Number |
CS-WH-IVS |
|
Price Terms |
FOB, C&F, CIF |
Brand Name |
OEM |
|
Payment Terms |
T/T, L/C |
Minimum Order |
1 set as sample |
|
Supply Ability |
3500sets/month |
Delivery Lead Time |
10-15 days |
|
Item No. |
Solar Vacuum Tube |
Capacity |
Loading Qty / sets |
|||
|
qty / pcs |
size / mm |
absorber |
( L) |
20GP |
40HQ |
|
|
CS-WH-IVS4718
|
18 |
Ø47×1500 |
AL-N/SS/CU (Tri-elements) |
125 |
67 |
160 |
|
CS-WH-IVS4720 |
20 |
140 |
62 |
147 |
||
|
CS-WH-IVS4724 |
24 |
170 |
53 |
127 |
||
|
CS-WH-IVS4730 |
30 |
210 |
43 |
102 |
||
|
CS-WH-IVS5818 |
18 |
Ø58 X 1800 |
180 |
48 |
113 |
|
|
CS-WH-IVS5820 |
20 |
200 |
43 |
103 |
||
|
CS-WH-IVS5824 |
24 |
240 |
38 |
90 |
||
|
CS-WH-IVS5830 |
30 |
300 |
31 |
73 |
||

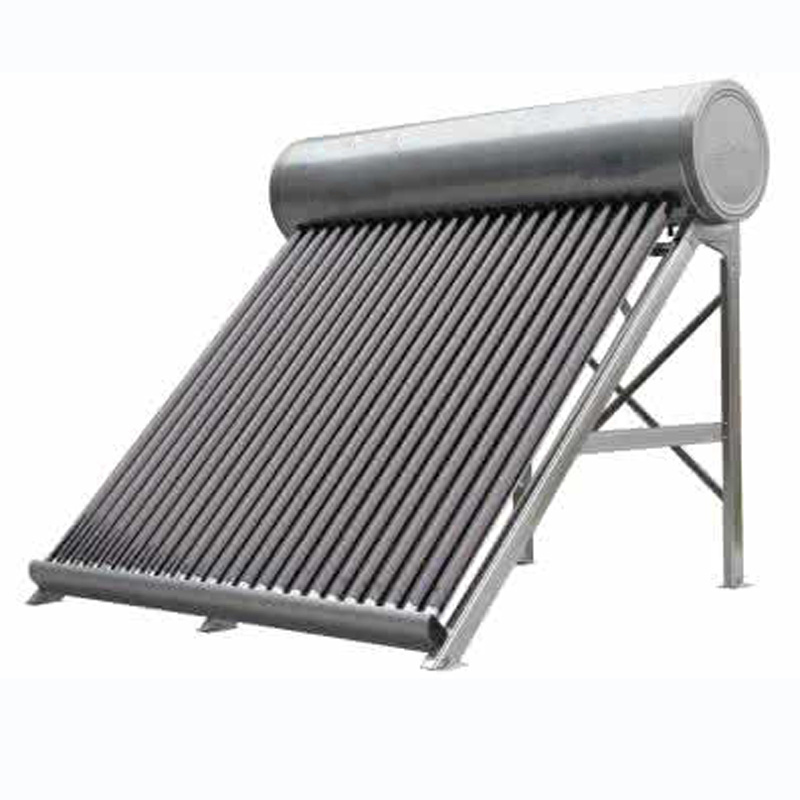

Stainless steel solar water heater Picture:
Century Sun Solar , Your Best Choice !
