Quick Details
-
Application:
-
Office Building
-
Design Style:
-
Modern
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BRT
-
Model Number:
-
BG001
-
Product Name:
-
PDLC Smart Film
-
Color:
-
Milky White
-
Thickness:
-
0.38mm
-
Advantage:
-
UV Blocking
-
Size:
-
Support Customization
-
MOQ:
-
1 Square Meter
-
Certificate:
-
ISO9001
-
Working Voltage:
-
AC48V~65V/50Hz
-
Package:
-
Carton Package
Quick Details
-
Warranty:
-
2 years
-
After-sale Service:
-
Online technical support, Free spare parts, Return and Replacement
-
Project Solution Capability:
-
graphic design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Office Building
-
Design Style:
-
Modern
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BRT
-
Model Number:
-
BG001
-
Product Name:
-
PDLC Smart Film
-
Color:
-
Milky White
-
Thickness:
-
0.38mm
-
Advantage:
-
UV Blocking
-
Size:
-
Support Customization
-
MOQ:
-
1 Square Meter
-
Certificate:
-
ISO9001
-
Working Voltage:
-
AC48V~65V/50Hz
-
Package:
-
Carton Package

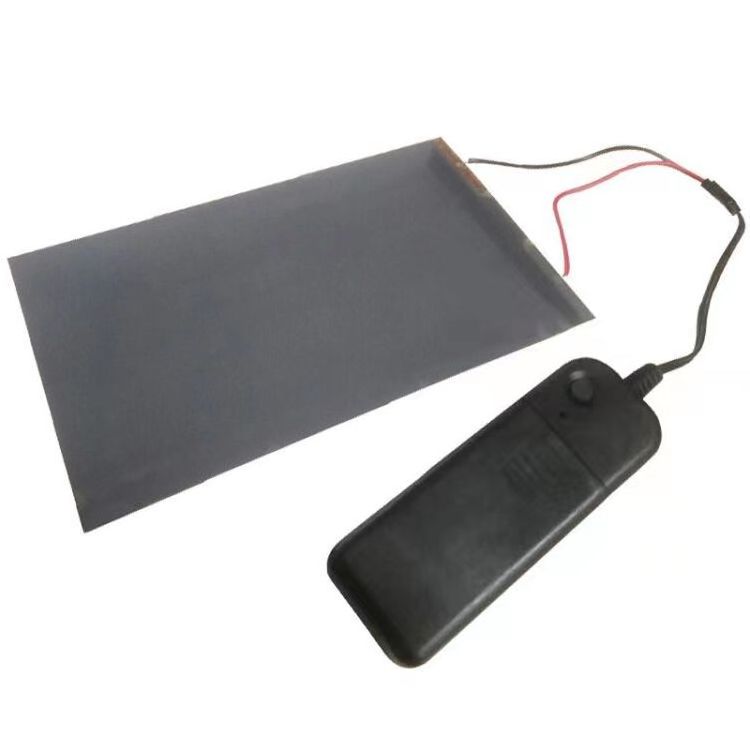

Smart PDLC film also known as self-adhesive PDLC (Polymer Dispersed Liquid Crystal) film, is an interior decorative material that can be pasted on existing glass surface. It ’ s working principle is power on -transparent, power off-opaque. It can satisfy not only customer ’ s requirements for transparency , but can also protect their privacy . and meanwhile has the function of explosion-proof, heat-insulation, sound-blocking, being as a projection screen ect....
As for the common glass installation , we recommend smart film , it ’ s easy and convenient to install on the glasses. Besides obtain the function of smart glass, do not need to re-install glasses.
| Item |
Mode |
Remarks |
|
|
Optical Properties |
Visible light Transmittance |
ON |
>87% |
|
OFF |
>55% |
||
|
Parallel light transmittance |
ON |
>81% |
|
|
OFF |
<3% |
||
|
Haze |
ON |
<2.5% |
|
|
OFF |
>90% |
||
|
UV Blocking |
ON/OFF |
>99% |
|
| IR Blocking |
ON/OFF |
>60% | |
|
Electrical Properties |
Operating Voltage |
ON |
48V / 65V |
|
Power Consumption |
ON |
4W/m2 |
|
|
Switching Speed |
ON-OFF |
<20ms |
|
|
OFF-ON |
<200ms |
||
|
Lifespan |
|
>10 years |
|
|
Viewing Angle |
160° |
||
|
Operating Temperature |
-25℃ to 85℃ |
||
|
Storage Temperature |
-30℃ to 75℃ |
||
|
Product Dimension |
Thickness |
0.5mm |
|
|
Length & Width |
Customized |
||
|
Controlling Ways |
Switch, voice, remote control, remote network control are available, any combination can be worked out according to customer request. |
||
