Quick Details
-
Max. Wheel Weight:
-
65kg
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
AUTOCARE
-
Model Number:
-
AG-400
-
Warranty:
-
18 Months
-
Product Name:
-
3D Wheel Alignment
-
Application:
-
Tire Workshop
-
Function:
-
Wheel Angles Adjust
-
Language:
-
Global Multi-language
-
Certification:
-
CE ISO
-
Software:
-
Independent
-
Computer:
-
LENOVO
-
Printer:
-
HP
-
Color:
-
Customised
-
Software Support:
-
Lifetime
Quick Details
-
Power:
-
250W
-
Power Supply:
-
220V/110V
-
Balancing Speed:
-
0
-
Max. Wheel Weight:
-
65kg
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
AUTOCARE
-
Model Number:
-
AG-400
-
Warranty:
-
18 Months
-
Product Name:
-
3D Wheel Alignment
-
Application:
-
Tire Workshop
-
Function:
-
Wheel Angles Adjust
-
Language:
-
Global Multi-language
-
Certification:
-
CE ISO
-
Software:
-
Independent
-
Computer:
-
LENOVO
-
Printer:
-
HP
-
Color:
-
Customised
-
Software Support:
-
Lifetime

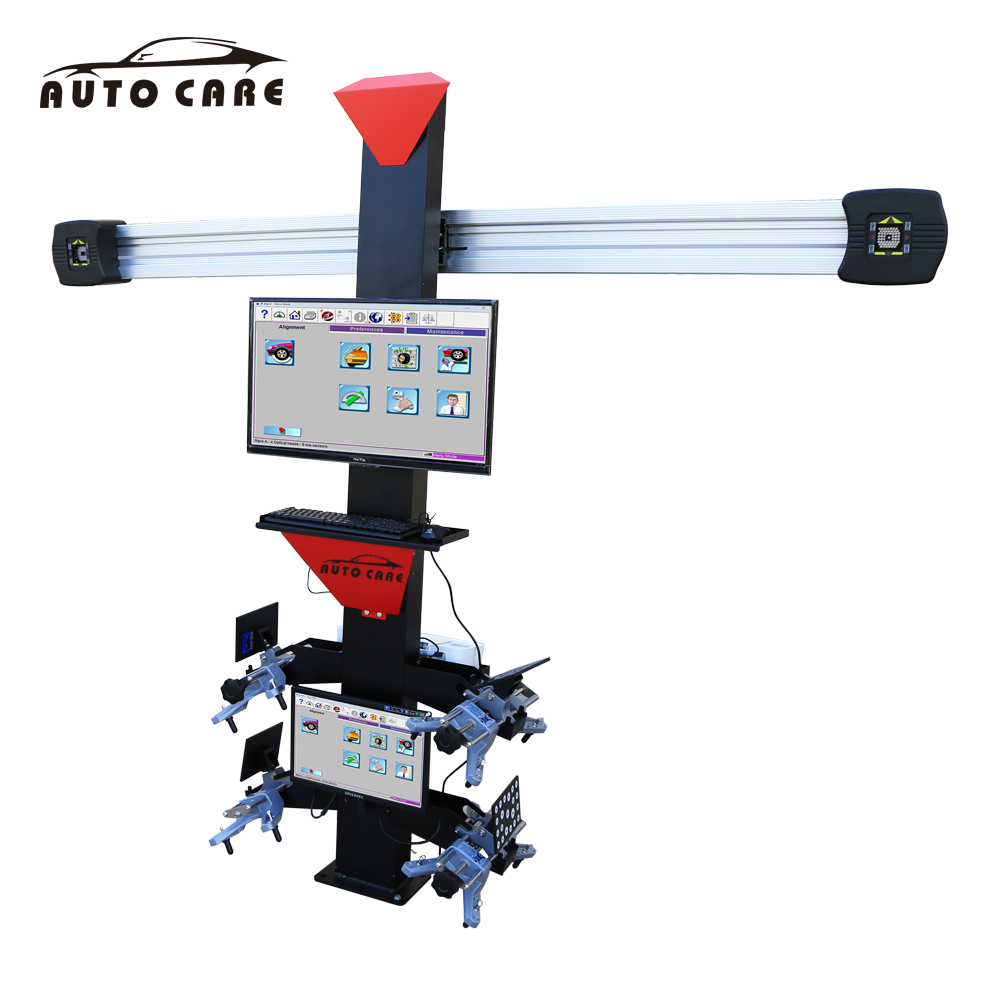

Autocare AG-400 Alignment Machine 3D for Car Wheel Repair
Products Description
Wheel Alignment Specifications
|
Measuring Project
|
Accuracy of Measurement
|
Measuring Range
|
|
Display Precision
|
0.1mm/0.01°
|
-
|
|
The Total TOE
|
±0.01°
|
±40°
|
|
Camber
|
±0.01°
|
±45°
|
|
Caster
|
±0.02°
|
±45°
|
|
S.A.I
|
±0.02°
|
±45°
|
|
Thrust
|
±0.01°
|
±40°
|
|
Set Back
|
±0.01°
|
±40°
|
|
The Max. Steering
|
±0.02°
|
±50°
|
|
Track Width
|
±2mm
|
1219mm-2438mm
|
|
Wheelbase
|
±2mm
|
2006mm-4572mm
|
Features:
1. Windows 7 System,operation process can be easily guided by "Next step" instruction.
2. Exceed 20,000 data base around the world and with a life time update service.
3. Repeat measurement accuracy is ± 0.01，which be a world's leading level.
4. Measurement Angle: Toe, Camber, Caster, S.A.I, thrust angle, Setback angle, Max turning angle, Wheel tread, Wheel base,Wheel rolling redius.
5. Fast installation,suitable for all rims between12”-23”. Double chuck,which can install both on iron and aluminum wheel hub.
6. 5 million high definition camera:it can also assure accurate alignment measurement when target plates get smaller.Intelligent LED navigation system:the operator doesn’t need to check the screen for the instruction of intelligent LED navigation system and can easily complete wheel alignment operation.
7. Double display LCDs can make sure the operator clear recognize the data on the screen in any angle and condition during
operation, thus improving the working efficiency.
8. Vehicle data update with free charge. Customers can download the software “ALPEMIX”, and our engineers will remote on line updation.
2. Exceed 20,000 data base around the world and with a life time update service.
3. Repeat measurement accuracy is ± 0.01，which be a world's leading level.
4. Measurement Angle: Toe, Camber, Caster, S.A.I, thrust angle, Setback angle, Max turning angle, Wheel tread, Wheel base,Wheel rolling redius.
5. Fast installation,suitable for all rims between12”-23”. Double chuck,which can install both on iron and aluminum wheel hub.
6. 5 million high definition camera:it can also assure accurate alignment measurement when target plates get smaller.Intelligent LED navigation system:the operator doesn’t need to check the screen for the instruction of intelligent LED navigation system and can easily complete wheel alignment operation.
7. Double display LCDs can make sure the operator clear recognize the data on the screen in any angle and condition during
operation, thus improving the working efficiency.
8. Vehicle data update with free charge. Customers can download the software “ALPEMIX”, and our engineers will remote on line updation.
Details Images
Package
1. LCD Monitor*2: 32"+19", 2. Host Computer*1; 3. Camera with fixed beam; 4. Iron Pillar; 5. Target Plate*4; 6. Hanger for
clamp*4; 7. Turn Table*2; 8. Wedge*2; 9. HP Printer*1; 10. Brake Lock*1; 11. Steering Wheel Lock*1; 12. Manual & Videos
clamp*4; 7. Turn Table*2; 8. Wedge*2; 9. HP Printer*1; 10. Brake Lock*1; 11. Steering Wheel Lock*1; 12. Manual & Videos
