Quick Details
-
Brand Name:
-
Minle
-
Motor Power:
-
5.5kw
-
Charging Capacity:
-
800L
-
Reclaiming capacity:
-
500L
-
Speed of Mixing Drum:
-
14r/min
-
Water Supply Mode:
-
automatically
-
Working Cycle Period:
-
55
-
Discharge Way:
-
automatically
-
Outline Dimension:
-
7800*2150*3100mm
-
Weight (KG):
-
7560 kg
-
Product name:
-
concrete mixer pump truck
-
Keyword:
-
concrete pump and mixer
-
Application:
-
mixing and pumping concrete
-
Chassis model:
-
Foton or your request
-
Name:
-
concrete pump mixer truck
-
Function:
-
Building House
-
Usage:
-
Building Project
-
Feature:
-
High Efficience
-
Driven mode:
-
diesel and electric motor
Quick Details
-
Mixing Power:
-
18.5 KW
-
Productivity:
-
40m3/h, 40m3/h
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Minle
-
Motor Power:
-
5.5kw
-
Charging Capacity:
-
800L
-
Reclaiming capacity:
-
500L
-
Speed of Mixing Drum:
-
14r/min
-
Water Supply Mode:
-
automatically
-
Working Cycle Period:
-
55
-
Discharge Way:
-
automatically
-
Outline Dimension:
-
7800*2150*3100mm
-
Weight (KG):
-
7560 kg
-
Product name:
-
concrete mixer pump truck
-
Keyword:
-
concrete pump and mixer
-
Application:
-
mixing and pumping concrete
-
Chassis model:
-
Foton or your request
-
Name:
-
concrete pump mixer truck
-
Function:
-
Building House
-
Usage:
-
Building Project
-
Feature:
-
High Efficience
-
Driven mode:
-
diesel and electric motor
JS500 Twin Shaft Mixer 40m3/h Double Diesel & Electric Concrete Mixer Pump Truck 450l Discharging Capacity Plc Core Components
WhatsApp: 008615066732025

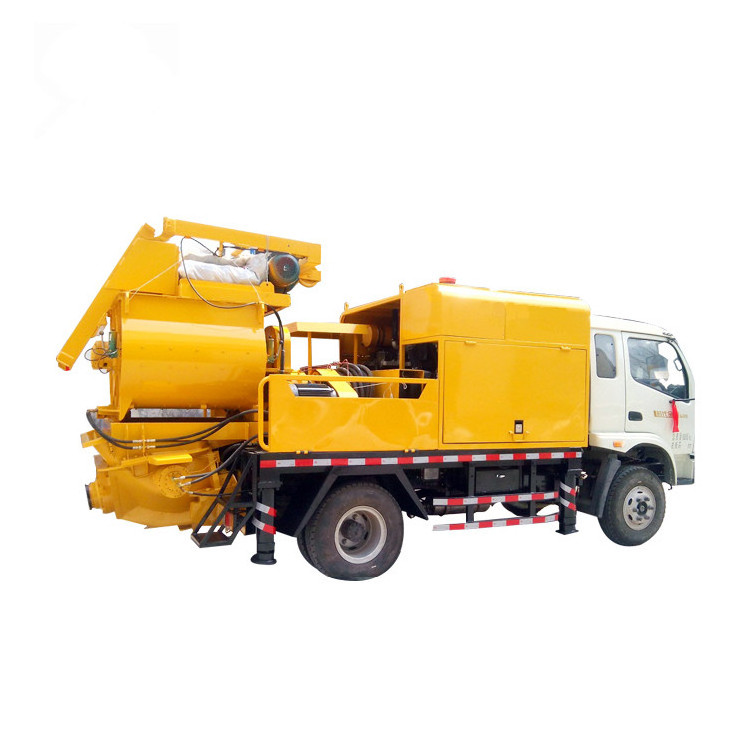

40m3/h Double Diesel & Electric Concrete Mixer Pump Truck, the feeding capacity is 800L, its discharge capacity is 450L, very big capacity with high working efficiency, that was also called the truck mounted concrete mixer pump, combines concrete mixer and concrete pump in the single machine, and integrally mounted on the truck chassis with high mobility and flexible operation-concrete mixer pump with truck!
Diesel gnenerator mounted on the concrete mixer pump truck, the power supply!!!
|
item |
unit |
MLJBT40 |
|
Theoretical Max output |
m³/h |
40 |
|
concrete slump |
mm |
120-230 |
|
Aggregates size |
mm |
pebble<50,gravel<40 |
|
The type of distribution valve |
|
S Tube valve |
|
speed |
kpm |
2300 |
|
delivery pipe diameter |
mm |
Φ125 |
|
Hopper Capacity |
m3 |
0.5 |
|
Maximum theoretical delivery Horizontal distance |
M |
50 0 |
|
Maximum theoretical delivery Vertical distance |
M |
150 |
|
improving motor |
kw |
4.5 |
| generator |
KW |
92 |
|
water pump motor |
kw |
0.75 |
|
Length ×width ×height |
mm |
6 000 X2 050 X2 300 |
|
Weight |
kg |
6500 |
Concrete mixer/pump truck are integrated and mounted on the single truck, flexible and easy to the place you want.
One operator for the concrete mixing, conveying process.
Import famous brand hydraulic pump like Roxroth, Kawasaki, etc.,
Semens, Mitsubishi, Schneider brand electric units.
Concrete pump is engineered with latest differential pressure induction control technology.
Hydraulic double-cylinder piston system, more stable concrete flowing and pumping.
Simplified working procedure, improved working efficiency.
Contact: Michael
Mobile/WhatsApp: 86-15066732025
Factory supply MLJBT35 concrete mixer pump truck
1.Power system 40m3/h diesel concrete mixer pump truck
Hydraulic oil pump: Germany Rexroth or Japan Kawasaki are adjusted. Diesel power: Germany Deutz, Weichai, Yuchai, .etc
2.Electronic control 40m3/h diesel concrete mixer pump truck
Japan Mitsubishi Programmable Logic Controller (PLC) electronic control system. Main electric elements are imported original Schneider, Siemens, OMRON, LG etc.
3.Hydraulic system 40m3/h diesel concrete mixer pump truck
The unique open hydraulic system and hydraulic cushion technology contribute to the smaller exchange impact and less heat of the system. Meanwhile, with the famous brand of main pump and hydraulic valve, the safety and reliability of the concrete pump are guaranteed. The hydraulic pipeline selects the high performance seamless steel pipes and all pipe joints and high-pressure hoses are of the famous brands.
4.Pumping system 40m3/h diesel concrete mixer pump truck
Pumping displacement variable adjustment: Change the pumping displacement according to the construction to meet the requirement of the condition. Reducing design of the hopper could release the reducing pressure of the concrete into the delivery pipe maximally, and prolong the service life of the S pipe outlet.
5.Lubrication 40m3/h diesel concrete mixer pump truck
The patented central automatic lubrication system comes with a piston grease-pump, features high pressure and reliability, which can realize automatic lubrication of piston. The filters at the outlet and the inlet of oil ports as double protections guarantee the system reliability.
6.Cooling System 40m3/h diesel concrete mixer pump truck
Compulsory air-cooled heat exchanger keeps the temperature of the hydraulic oil below 60 degree,that ensures the whole hydraulic system works at normal status.
Advanced hydraulic system. Automatic and intensive lubrication system ensures effective lubrication during the operation. Powerful mixing ability.
High reliability and wear resistance components
imported brand main hydraulic components.
Intelligent controller, high speed and reliable operation.
More reliable redundant control design.
Easy to move and operate.
High quality, competitive factory price.
