Quick Details
-
Max. Loading Capacity:
-
10000
-
Weight (KG):
-
300 KG
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JCT-powder machine
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
500*800*1000~2000*3000*5000
-
Power (kW):
-
75 kW
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
applications:
-
powder mixing machine
-
motor:
-
explosion-proof
-
mixing system:
-
conical twin screw
-
discharging mode:
-
dislocation bottom valve, butterfly bamper
-
other device:
-
outer jacket for heating and cooling, nebulizer
-
material:
-
SS304, SS316, Q235
-
rotated speed:
-
0-63rpm
-
color:
-
White or According to customer requirement
-
vacuum degree:
-
0-0.096MPa
Quick Details
-
Barrel Volume (L):
-
50 L
-
Max. Loading Volume (L):
-
15000 L
-
Range of Spindle Speed(r.p.m):
-
1 - 100 r.p.m
-
Max. Loading Capacity:
-
10000
-
Weight (KG):
-
300 KG
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JCT-powder machine
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
500*800*1000~2000*3000*5000
-
Power (kW):
-
75 kW
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
applications:
-
powder mixing machine
-
motor:
-
explosion-proof
-
mixing system:
-
conical twin screw
-
discharging mode:
-
dislocation bottom valve, butterfly bamper
-
other device:
-
outer jacket for heating and cooling, nebulizer
-
material:
-
SS304, SS316, Q235
-
rotated speed:
-
0-63rpm
-
color:
-
White or According to customer requirement
-
vacuum degree:
-
0-0.096MPa
spray drying detergent powder plant making machine

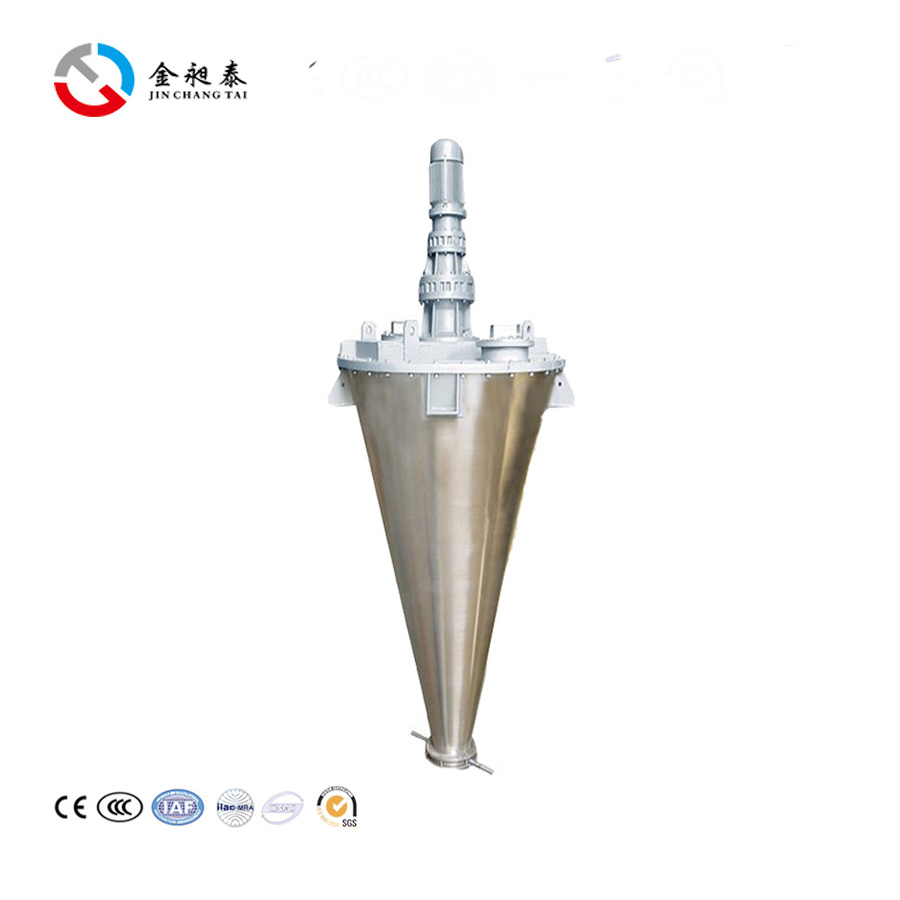

1) Conical twin screw with mixing machine mixing components for two asymmetrical cantilever screw, they around its axis of rotation (rotation) and at the same time, also around the conical container center shaft, with the help of a jib rotating in the cone surface of planetary motion (revolution).
2) The equipment through the revolution of the screw, rotation so materials again and again, to produce shear in the cone, convection, diffusion, etc compound movement, so as to achieve mixed purposes.
3) Products can be designed according to the outer jacket (heating, cooling), spray, etc.
4) Widely used in chemical, pharmaceutical, pesticide, pigment, building materials, such as powder mixed with powder. series instant coffee powder mixer/mix tank
5) DSH-0.1 mean 0.1m3 , 0.1m3 mean the volume 100L. series instant coffee powder mixer/mix tank
6) the mixing machine the touch material part make from stainless steel 304. series instant coffee powder mixer/mix tank
7) If you need more requirement , we can according to your require to design. series instant coffee dr ffeeowderixer/mix tank
| type | design volume (L) | loading volume | motive power | discharge method | other require |
| DSH-0.1 | 100 | 60 | 1.1 | Displacement at the bottom of the valve or butterfly valve | Can design according to the jacket, the atomizer |
| DSH-0.3 | 300 | 180 | 1.5 | Displacement at the bottom of the valve or butterfly valve | Can design according to the jacket, the atomizer |
| DSH-05 | 500 | 300 | 2.2 | Displacement at the bottom of the valve or butterfly valve | Can design according to the jacket, the atomizer |
| DSH-1 | 1000 | 600 | 3-4 | Displacement at the bottom of the valve or butterfly valve | Can design according to the jacket, the atomizer |
| DSH-2 | 2000 | 1200 | 5.5-7.5 | Displacement at the bottom of the valve or butterfly valve | Can design according to the jacket, the atomizer |
| DSH-3 | 3000 | 1800 | 5.5-7.5 | Displacement at the bottom of the valve or butterfly valve | Can design according to the jacket, the atomizer |
| DSH-5 | 5000 | 3000 | 11-15 | Displacement at the bottom of the valve or butterfly valve | Can design according to the jacket, the atomizer |
| DSH-6 | 6000 | 3600 | 15-18.5 | Displacement at the bottom of the valve or butterfly valve | Can design according to the jacket, the atomizer |
| DSH-8 | 8000 | 4800 | 18.5-22 | Displacement at the bottom of the valve or butterfly valve | Can design according to the jacket, the atomizer |
| DSH-10 | 10000 | 6000 | 22-30 | Displacement at the bottom of the valve or butterfly valve | Can design according to the jacket, the atomizer |
powder mixer
