Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Baishun
-
Model Number:
-
Z3050*16
-
Voltage:
-
380V
-
Power (kW):
-
4
-
Weight (KG):
-
3500 KG
-
Marketing Type:
-
Hot Product 2024
-
Product name:
-
Radial Drill Machine For Sale
-
Machine type:
-
Z3050*16
-
Max.drilling diameter(mm):
-
50
-
Spindle travel(mm):
-
350
-
Spindle taper(morse):
-
MT5
-
Main motor(kw):
-
4
-
Application:
-
Metal Processing
-
Keyword:
-
Vertical Drilling Tapping Machine
-
Function:
-
Tapping Holes
-
Color:
-
Customers' Requirement
Quick Details
-
type:
-
Radial Drilling Machine
-
Max. Drilling Dia. (mm):
-
125
-
Range of Spindle Speed(r.p.m):
-
78 - 1100 r.p.m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Baishun
-
Model Number:
-
Z3050*16
-
Voltage:
-
380V
-
Power (kW):
-
4
-
Weight (KG):
-
3500 KG
-
Marketing Type:
-
Hot Product 2024
-
Product name:
-
Radial Drill Machine For Sale
-
Machine type:
-
Z3050*16
-
Max.drilling diameter(mm):
-
50
-
Spindle travel(mm):
-
350
-
Spindle taper(morse):
-
MT5
-
Main motor(kw):
-
4
-
Application:
-
Metal Processing
-
Keyword:
-
Vertical Drilling Tapping Machine
-
Function:
-
Tapping Holes
-
Color:
-
Customers' Requirement
Product Description

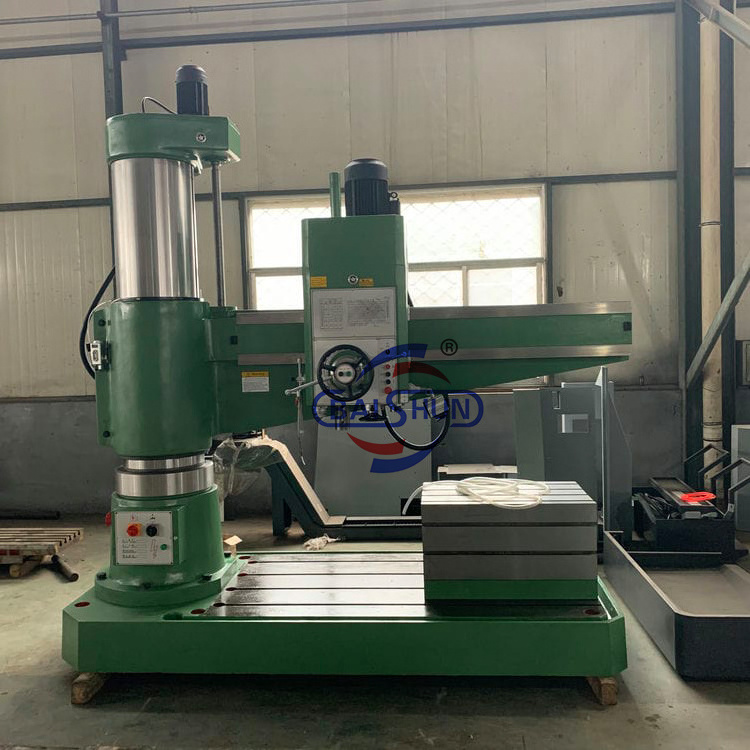

Industrial Radial Drilling Machine Hydraulic Radial Drilling Machine Mechanical Radial Arm
The spindle box can move left and right on the rocker arm and rotate around the column with the rocker arm. The rocker arm can also be lifted up and down along the outer column to adapt to the processing of workpieces with different heights. Smaller workpieces can be installed on the workbench, and larger workpieces can be directly placed on the machine base or the ground. Radial drilling machine bed is widely used in single and small batch production to process large volume and weight of workpieces.Rocker arm drilling machine processing range is wide, can be used to drill large workpieces of various screw holes, thread bottom holes and oil holes.Rocker arm drill bed is used to process small and medium-sized holes on heavy workpiece or porous workpiece, mainly composed of base, column, rocking arm, spindle box, spindle workpiece table, etc.When the rocker drill bed works, the rocker arm can rotate around the column, and the spindle box can be moved radially on the rocker arm.This points the drill bit to the axis of each processed hole for hole processing.Use more flexible.Generally, when the workpiece is drilling, the workpiece is often clamped on the workbench.When the large workpiece is processed, the workpiece can be clamped on the drill bed base.Depending on the height of the workpiece, the rocking arm can be moved along the column up and down after the locking device is loosened, so that the main shaft box and the drill bit are in the appropriate height position.
Product Parameters
|
Specification
|
Z3032X10
|
Z3040X14
|
Z3050X16
|
Z3063X18
|
Z3080X20
|
|
Max drilling diameter (mm)
|
32
|
40
|
50
|
63
|
80
|
|
Distance between spindle axis and column (mm)
|
170-1100
|
260-1210
|
350-1500
|
400-1600
|
550-1600
|
|
Spindle travel(mm)
|
120
|
260
|
350
|
400
|
450
|
|
Spindle speed(r/min)
|
108-1000
|
75-1200
|
78-1100
|
16-1250
|
16-1250
|
|
Spindle taper(morse)
|
MT4
|
MT4
|
MT5
|
MT6
|
MT6
|
|
Number of spindle speeds
|
6
|
12
|
12
|
16
|
16
|
|
Steps of spindle feeds
|
3
|
3
|
4
|
16
|
16
|
|
Radial ratation angle
|
360
|
360
|
360
|
180
|
180
|
|
Main motor (kw)
|
1.5
|
2.2
|
4
|
5.5
|
7.5
|
|
Machine weight(kg)
|
1080
|
2000
|
3500
|
6300
|
7000
|
Detailed Images
Our Factory Workshop
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
FAQ
Q: Why Choose Us?
1). We are manufacturer with own factory for many years with CE Certification
2). With professional design and sales team, we can serve you perfect solution with competitive direct factory price.
3). Our machines are popular among customers around the world ( India, Pakistan, Spain, Italy, Korea, Mexico, UK etc).
1). We are manufacturer with own factory for many years with CE Certification
2). With professional design and sales team, we can serve you perfect solution with competitive direct factory price.
3). Our machines are popular among customers around the world ( India, Pakistan, Spain, Italy, Korea, Mexico, UK etc).
Q: What Is Our Service?
1). Pre-Sale Service
According to the customers' special requirements,we provide the most suitable project design, process design and the purchase program. Guide customers to choose the best and economical plant, recover investment within short time.
2). Sales Service
You are welcome to visit our factory to test the machine. And we will customize the equipment strictly according to your special requirements and arrange the timely delivery.
3). After-Sale Service
We will provide one year warranty for our machine.According to your need,we will dispatch our engineers to your factory to guide the installation,commissioning and training your workers.
Q: How Do You Ensure The Machine Quality?
A: You can send your sample scrap materials to us and we will test the machine for you
without charging the fees. And we can send the machine test video to you. According to your time, you can pay a visit to our factory to test our machine.
1). Pre-Sale Service
According to the customers' special requirements,we provide the most suitable project design, process design and the purchase program. Guide customers to choose the best and economical plant, recover investment within short time.
2). Sales Service
You are welcome to visit our factory to test the machine. And we will customize the equipment strictly according to your special requirements and arrange the timely delivery.
3). After-Sale Service
We will provide one year warranty for our machine.According to your need,we will dispatch our engineers to your factory to guide the installation,commissioning and training your workers.
Q: How Do You Ensure The Machine Quality?
A: You can send your sample scrap materials to us and we will test the machine for you
without charging the fees. And we can send the machine test video to you. According to your time, you can pay a visit to our factory to test our machine.
Q:What is the machine voltage or power of machine ?
A:
Usually in our country is 220v,50hz, single phase , or 380v, 50hz, 3 phase .if you have the special requirement , pls tell us before you confime order ,we will customize the voltage according to your requirement.
Q:
How can I choose the most suitable machines ?
A: You can choose the exact model by yourself. Or you can tell us your specifications, to let us choose the best model for you,too.You can also send us the product drawing, and we will choose the most suitable machines for you.
Q: When do you deliver?
A: You can choose the exact model by yourself. Or you can tell us your specifications, to let us choose the best model for you,too.You can also send us the product drawing, and we will choose the most suitable machines for you.
Q: When do you deliver?
A:
It depends on the machine and model you choose. Mostly 1.5 months - 2 months. All machines are brand new, made according to your order. Occasionally there will be a few machines available from stock. You can send us a message or mail to check exact delivery time.Our manufactory is very high degree of modernization, brand positioning the global market,production capacity is very strong, conventional models try to ensure that the spot.
Q:Does your company provide testing before shipment?
A:
Yes, we provide testing videos in factory for each machine before shipment.
