Quick Details
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1300x900mm
-
Cutting Thickness:
-
0-30mm
-
Control Software:
-
Ruida 6332M
-
Place of Origin:
-
China
-
Brand Name:
-
VANK
-
Weight (KG):
-
550 KG
-
Product name:
-
co2 mixed laser cutting machine
-
Laser Power:
-
150W,180W,200W,250W,350w,400w,500w
-
Application meterial:
-
Metal.Non-material.Acrylic
-
metal cutting thickness:
-
Max.3mm
-
Non metal cutting thickness:
-
Max. 40mm
-
Laser source:
-
Co2 Glass Tube / Laser Generator
-
Driving system:
-
Leadshine Stepper Motor
-
Control system:
-
Ruida Control System
-
Software supported:
-
CorelDraw.AutoCAD
-
Voltage:
-
AC220V 50-60 HZ
Quick Details
-
Laser Type:
-
CO2 Laser
-
Cutting Speed:
-
0-60000mm/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1300x900mm
-
Cutting Thickness:
-
0-30mm
-
Control Software:
-
Ruida 6332M
-
Place of Origin:
-
China
-
Brand Name:
-
VANK
-
Weight (KG):
-
550 KG
-
Product name:
-
co2 mixed laser cutting machine
-
Laser Power:
-
150W,180W,200W,250W,350w,400w,500w
-
Application meterial:
-
Metal.Non-material.Acrylic
-
metal cutting thickness:
-
Max.3mm
-
Non metal cutting thickness:
-
Max. 40mm
-
Laser source:
-
Co2 Glass Tube / Laser Generator
-
Driving system:
-
Leadshine Stepper Motor
-
Control system:
-
Ruida Control System
-
Software supported:
-
CorelDraw.AutoCAD
-
Voltage:
-
AC220V 50-60 HZ
Product Description

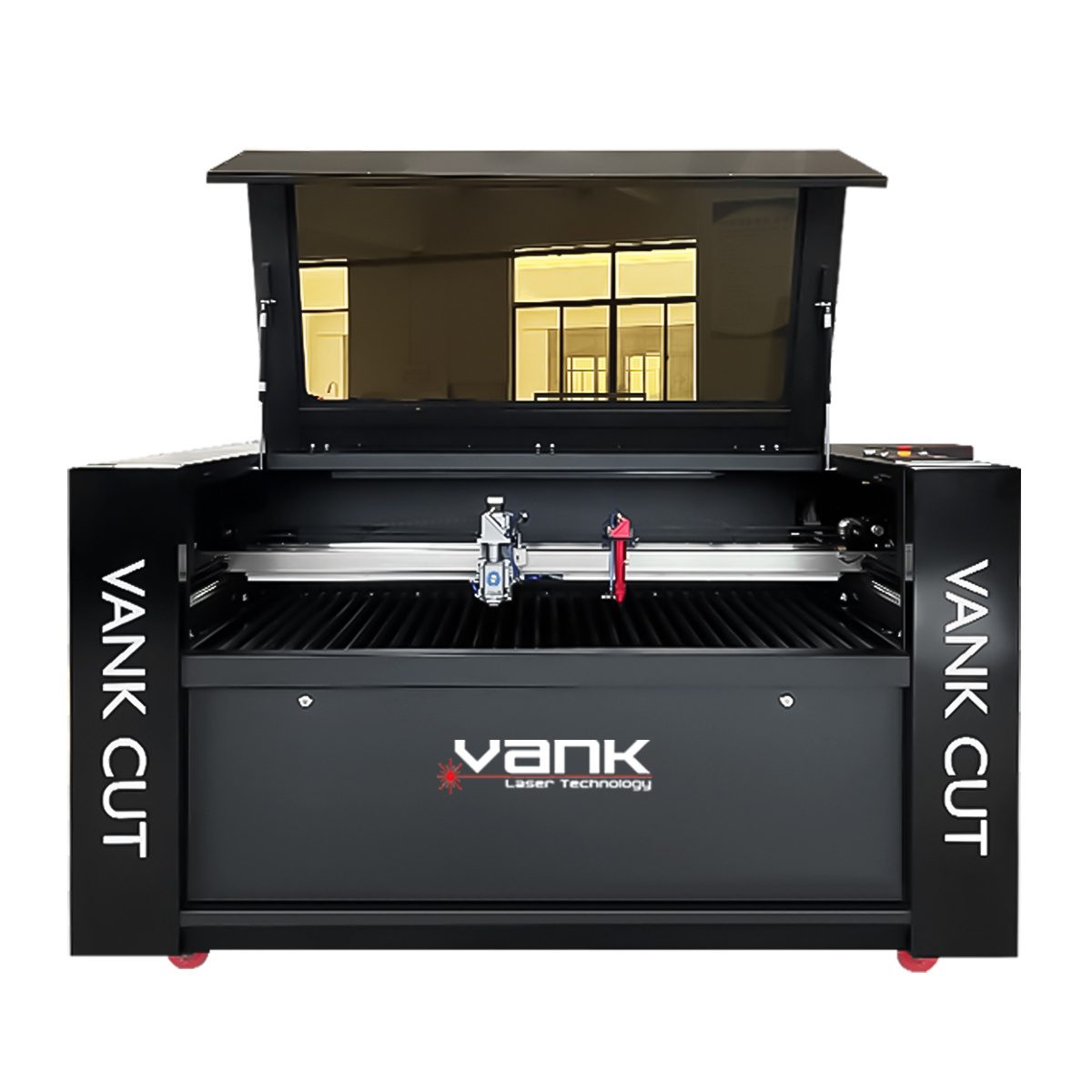

1490 CO2 metal laser cutter – cutting thin metal & organic materials
The multi-function laser cutting head is suitable for cutting metal and non-metal materials. The fixed optical path compensation system ensures the consistency of the laser spot quality in the entire cutting area. The imported linear guide rail and lead screw conveying system have high rigidity, large transmission torque, eliminate vibration, and the accuracy is several times higher than that of the belt drive system.
Product Parameters
|
Engraving Area
|
1400*900mm 2 heads
|
|
Laser power
|
150W/250W/350W/500W
|
|
Cutting speed
|
0-18000mm/min
|
|
Engraving speed
|
0-6400mm/min(stepless speed regulating)
|
|
Laser type
|
sealed CO2 glass laser tube
|
|
The natural life of laser
|
warranty 10 months (The machine warranty 1 year)
|
|
Laser wavelength
|
10.6um
|
|
Resolution ratio
|
0.025mm
|
|
Minimum shaping character
|
Chinese character 2mm/letter 1mm
|
|
Resetting positioning accuracy
|
±0.01mm
|
|
Working Voltage
|
AC220V 50HZ/60HZ
|
|
Operating temperature
|
0℃-45℃
|
|
Operating humidity
|
5℃-95℃
|
|
Cutting Table
|
aluminum slot table
|
|
x y guide system
|
Taiwan Linear Guide Rails
|
|
Graphic Format Supported
|
BMP, HPGL (PLT), DXF, G-CODE, DST, AutoCAD, CorelDraw, CAD-CAM, AI, Photoshop
|
|
software supported
|
Coreldraw, AutoCAD, Photoshop, illustrator. Etc
|
|
Driver Type
|
Stepper Motor and driver
|
|
Cooling
|
CW5200 (industrial chiller)
|
|
Opearate system
|
Win 98/Win 2000/Win XP/Win 7/vista
|
|
interface
|
LCD screen with USB interface
|
|
pass-through doors
|
Allow cutting extremely long materials
|
|
packing
|
Wooden package
|
|
Assistant equipment
|
exhaust-fan, air pump, industry chiller
|
Product Details
|
Materials
|
Engrave
|
Cut
|
Materials
|
Engrave
|
Cut
|
|
Wood
|
√
|
√
|
Fiberglass
|
√
|
√
|
|
Acrylic
|
√
|
√
|
Plastic
|
√
|
√
|
|
Cloth
|
√
|
√
|
Cork
|
√
|
√
|
|
Leather
|
√
|
√
|
Corian
|
√
|
√
|
|
Paper
|
√
|
√
|
Twill
|
√
|
√
|
|
Delrin
|
√
|
√
|
Anodized Aluminum
|
√
|
|
|
Mat Board
|
√
|
√
|
Painted Metal
|
√
|
|
|
Melamine
|
√
|
√
|
Tils
|
√
|
|
|
Mylar
|
√
|
√
|
Glass
|
√
|
|
|
Pressboard
|
√
|
√
|
Coated Metals
|
√
|
|
|
Rubber
|
√
|
√
|
Ceramics
|
√
|
|
|
Wood Veneer
|
√
|
√
|
Marble
|
√
|
|
