Quick Details
-
Bending Precision (Deg):
-
+/-0.1
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
J-BORU
-
Year:
-
2023
-
Power (kW):
-
15
-
Weight (KG):
-
2500
-
Product name:
-
Pipe Profile Bending Machine
-
Application:
-
Tube Pipe Bending
-
After-sales Service Provided:
-
Online Support
-
Raw Material:
-
Alloy Steel
Quick Details
-
Machine Type:
-
tube bending machine, Tube Bending Machine
-
Bending Radius (mm):
-
20 - 500
-
Max. Bending Angle (Deg):
-
190
-
Bending Precision (Deg):
-
+/-0.1
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
J-BORU
-
Year:
-
2023
-
Power (kW):
-
15
-
Weight (KG):
-
2500
-
Product name:
-
Pipe Profile Bending Machine
-
Application:
-
Tube Pipe Bending
-
After-sales Service Provided:
-
Online Support
-
Raw Material:
-
Alloy Steel
Products Description
|
OD(mm)
|
WT(mm)
|
Mandrel Length(mm)
|
Model
|
|
12
|
0.7
|
800
|
DW-12NCB/CNC
|
|
18
|
1.0
|
1000
|
DW-18NCB/CNC
|
|
25
|
1.2
|
1500
|
DW-25NCB/CNC
|
|
32
|
2.0
|
3200
|
DW-32NCB/CNC
|
|
38
|
2.0
|
3400
|
DW-38NCB/CNC
|
|
50
|
3.0
|
3500
|
DW-50NCB/CNC
|
|
63
|
4.0
|
3700
|
DW-63NCB/CNC
|
|
75
|
4.0
|
4200
|
DW-75NCB/CNC
|
|
89
|
4.0
|
4500
|
DW-89NCB/CNC
|
|
100
|
5.0
|
4500
|
DW-100NCB/CNC
|
|
114
|
5.0
|
5000
|
DW-114NCB/CNC
|
|
130
|
6.0
|
5500
|
DW-130NCB/CNC
|
|
159
|
6.5
|
6000
|
DW-159NCB/CNC
|
|
168
|
6.5
|
7000
|
DW-168NCB/CNC
|
|
219
|
10
|
9000
|
DW-219NCB/CNC
|
|
Application industry
|
|
|
|
|
||||
|
Exhaust
|
Cycling
|
Furniture
|
Electric bicycle
|
Boiler
|
||||
|
Shipyard /oil rig
|
Air Conditioner
|
|
|
|
||||
|
|
|
|
|
|
||||

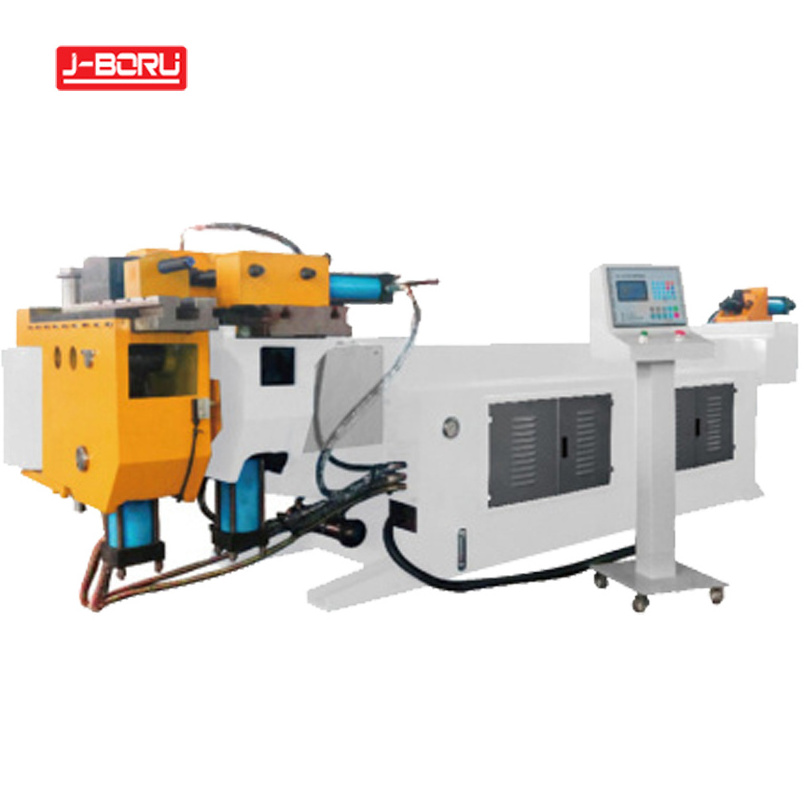

Semi Auto NCB Steel Tube Bending Machine
1. Type: semi auto, hydraulic bending.
2. Easy to operate
Details Images
Taiwan HIWIN precision ground helical gear
Working light
Taiwan LIMING reducer
Taiwan
TSUNTIEN RV
reducer
Feeding motor
Hydraulic station
oil cooler
Used to cool hydraulic oil and keep equipment running stably
Air conditioner for electrical box
Prevent electrical components from overheating and keep equipment running stably
.
|
Option for CNC pipe bending machine
|
|
|
|
|||
|
Left and right direction bending
|
Pushing / Rolling
|
Robot hand
|
Auto punching
|
|||
|
Auto cutting
|
Auto welding seam detection
|
Auto loading
|
Auto unloading
|
|||
|
Infrared safety fence
|
Production line
|
Booster
|
Bend Nylon tube
|
|||
