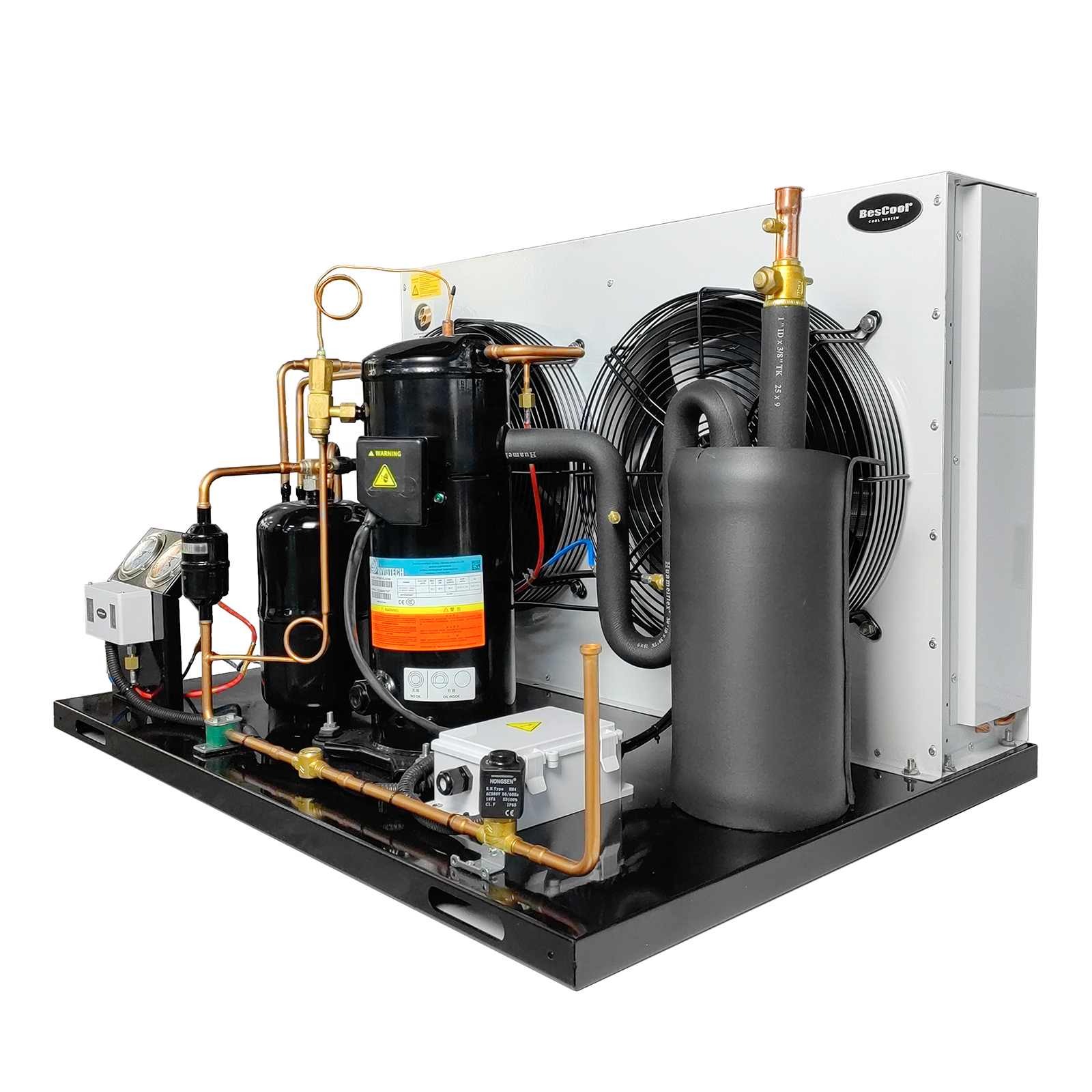

Hermetic Scroll Compressor Condensing Unit New Design Outdoor Cooling for Blast Freezer Cold Room Storage Core Equipment

Hermetic Scroll Compressor Condensing Unit New Design Outdoor Cooling for Blast Freezer Cold Room Storage Core Equipment

FOB Reference Price: Get Latest Price

≥1 Pieces

US $600

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power:: 2000W

Dimension(L*W*H):: 125*115*105(cm)

Weight:: 130kg

Year:: NEW

Compressor brand:: Invotech

Refrigerant:: R404a, R22, R404a/R22

Product name:: condensing unit

Unit type:: Opening type

Compressor Brand:: scroll compressor

Horse Power:: 2HP-15HP

Service:: ODM,Full/Minor customization, Finished product inspection

Model:: YF/YM series

Brand:: BesCool

Usage:: New

Quick Details

Place of Origin:: Guangdong, China

Model Number:: YF/YM series

Voltage:: 220V/380V

Power:: 2000W

Dimension(L*W*H):: 125*115*105(cm)

Weight:: 130kg

Year:: NEW

Compressor brand:: Invotech

Refrigerant:: R404a, R22, R404a/R22

Product name:: condensing unit

Unit type:: Opening type

Compressor Brand:: scroll compressor

Horse Power:: 2HP-15HP

Service:: ODM,Full/Minor customization, Finished product inspection

Model:: YF/YM series

Brand:: BesCool

Usage:: New

Product Specifications

Tips: The evaporation temperature is -6.7 °C, the condensation temperature is 48.9 °C, the return gas temperature is 4.4 °C, and the condenser liquid has no subcooling.

Modle No.	YM34E2G-102	YM49E2G-102	YM70E2G-100	YM34E1G-100	YM49E1G-100	YM49E1G-102	YM86E1G-100	YM102E1G-100	YM115E1G-100
Motors Supply	220V/1~/50Hz							380-420V/3-/50Hz Or 460V/3-/60Hz
Motors Supply		Uniphase							Three Phase
HP	2	3	4	2	3	4	5	6	7
cc/rev	33.3	46.6	67.8	33.3	46.6	67.8	83.3	98.3	108.0
Refrigerants	R404A
Cooling Capacity(W)	3560	4840	6920	3560	4840	6920	8500	10100	11328
Power(W)	2070	2689	3601	2034	2547	3530	4250	5050	5600
(LRA)(A)	76	76	109	22	45	60	60	65	85
(MOC)(A)	16.2	19	28.1	5.2	6.9	10.3	12.2	14.3	17.1
Crankcase Heater Power	70
Suction OD	12.87-12.97
Liquid Outlet OD	22.35-22.45
Size(LWH)	239239418										239239463
Installation Size	190.5*190.5(8.8)
Type Of Lubricant	POE
Initial Charge(L)	1.4									1.6
Recharge Amount	1.25									1.45
Weight	31	31	33	29	30	31	31	33	38

Modle No.	YM132E1G-100	YM158E1G-100	YM182E1G-100	YM200E1G-100	YM210E1G-100	YM235E1G-100	YM260E1G-100
Motors Supply	380-420V/3-/50Hz Or 460V/3-/60Hz
Motors Supply		Three Phase
HP	8	9	10	12	13	13	15
cc/rev	123.0	145.4	167.2	189.1	197.1	216.7	244.3
Refrigerants	R404A
Cooling Capacity(W)	12893	15842	17856	19536	20544	23218	25688
Power(W)	6447	7921	8928	9671	10170	11900	13150
(LRA)(A)	117	117	121	121	121	148.5	148.5
(MOC)(A)	18.4	21.0	23.6	26.5	27.6	28.9	32.8
Crankcase Heater Power	90								75
Suction OD	22.35-22.45								22.50-22.60
Liquid Outlet OD	28.83-28.93								35.20-35.30
Size(LWH)	260244508								318309575
Installation Size	190.5*190.5(8.8)								190.5*190.5(10.2)
Type Of Lubricant	POE
Initial Charge(L)	2.7			3.0				3.4
Recharge Amount	2.55			2.85				3.25
Weight	53	53	54	54	54	90	90

Modle No.	YF13E2G-Q102	YF20E2G-Q102	YF29E2G-Q100	YF13E1G-Q100	YF20E2G-Q100	YF29E1G-Q100	YF35E1G-Q100	YF41E1G-Q100
Motors Supply	220V/1~/50Hz							380-420V/3-/50Hz Or 460V/3-/60Hz
Motors Supply
HP	2	3	4	2	3	4	5	6
cc/rev	33.3	46.6	67.8	33.3	46.6	67.8	83.3	98.3
Refrigerants	R404A
Cooling Capacity(W)	1386	2079	3145	1386	2079	3145	3731	4371
Power(W)	1247	1866	2569	1237	1823	2516	2889	3358
(LRA)(A)	76	76	109	22	45	60	60	65
(MOC)(A)	13.4	16.2	23.3	3.8	5.8	8.8	10.3	12.1
Crankcase Heater Power	70
Suction OD	12.87-12.97
Liquid Outlet OD	22.35-22.45
Size(LWH)	239239418								239239463
Installation Size	190.5*190.5(8.8)
Type Of Lubricant	POE
Initial Charge(L)	1.4								1.6
Recharge Amount	1.25								1.45
Weight	31	31	33	29	30	31	31	33

Modle No.	YF56E1G-Q100	YF65E1G-Q100	YF72E1G-Q100	YF80E1G-Q100
Motors Supply	380-420V/3-/50Hz OR 460V/3-/60Hz
Motors Supply
HP	8	9	10	12
cc/rev	123.0	145.4	167.2	33.3
Refrigerants	R404A
Cooling Capacity(W)	5560	6751	7621	8657
Power(W)	4560	5193	5862	6614
(LRA)(A)	85	117	117	121
(MOC)(A)	18	20.1	22.7	25.6
Crankcase Heater Power	90
Suction OD	22.35-22.45
Liquid Outlet OD	28.83-28.93
Size(LWH)	272248507
Installation Size	190.5*190.5(8.8)
Type Of Lubricant	POE
Initial Charge(L)	2.7			3.0
Recharge Amount	2.55			2.85
Weight	53	53	54	54

Applications

· From the vortex to the whole machine, it is targeted for medium-temperature refrigeration applications, and the product definition is accurate · Radial and axial flexible design, more optimized axial floating seal design, improve efficiency · Precise exhaust temperature protection for safe operation · Accurate load and sealing force calculations to reduce operating noise · Energy-efficient motor design

Why Choose Us

Certifications & Cooperations

Our management, production and testing system is in line with international standards, with more than 10 Utility Patents and Design Patents, and has passed CE certification.

In addition, we work closely with a number of well-known refrigeration equipment companies, so whether you need our cooperative products or our exclusive products or other brand products, we can provide the best quality and price.
