Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
invt
-
Model Number:
-
XG9KTR
-
Input Voltage:
-
1100V
-
Output Voltage:
-
230Vac / 400Vac,3L / N / PE
-
Output Current:
-
14.4A
-
Output Frequency:
-
50/60(HZ)
-
Size:
-
481 x 395 x 195 mm
-
Certificate:
-
CE /TUV /ICE /UTE
-
Warranty:
-
2 years
-
Weight:
-
13.5kg
-
Protection Degree:
-
IP 66
-
Max. Operating Altitude:
-
4000m
-
Relative Humidity:
-
0 ~ 100%
-
Topology:
-
Transformerless
-
Night Power Consumption:
-
<1W
-
Operating Temperature Range:
-
-25°C ~ +60°C
-
Communication:
-
Standard:RS485 / USB Optional:WiFi / GPRS / Ethernet
-
Display:
-
LED / LCD (Optional)
-
AFCI protection:
-
Optional
-
Surge protection:
-
Type II
Quick Details
-
Output Type:
-
Three Phase
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
98.7%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
invt
-
Model Number:
-
XG9KTR
-
Input Voltage:
-
1100V
-
Output Voltage:
-
230Vac / 400Vac,3L / N / PE
-
Output Current:
-
14.4A
-
Output Frequency:
-
50/60(HZ)
-
Size:
-
481 x 395 x 195 mm
-
Certificate:
-
CE /TUV /ICE /UTE
-
Warranty:
-
2 years
-
Weight:
-
13.5kg
-
Protection Degree:
-
IP 66
-
Max. Operating Altitude:
-
4000m
-
Relative Humidity:
-
0 ~ 100%
-
Topology:
-
Transformerless
-
Night Power Consumption:
-
<1W
-
Operating Temperature Range:
-
-25°C ~ +60°C
-
Communication:
-
Standard:RS485 / USB Optional:WiFi / GPRS / Ethernet
-
Display:
-
LED / LCD (Optional)
-
AFCI protection:
-
Optional
-
Surge protection:
-
Type II
Product Description
Key Feature

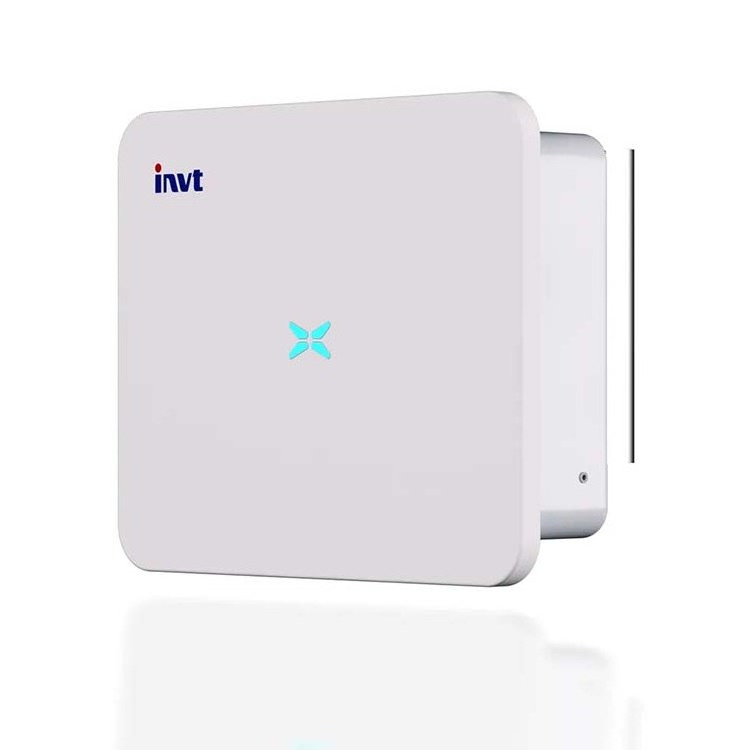

XG3-10kW single-phase on-grid solar inverter is a string inverter developed by INVT Solar specifically for residential users, with small size, light weight, easy installation and maintenance, and excellent cost performance.
|
Efficient
Higher revenue |
2MPP Trackers, high single circuit tracking accuracy, fast dynamic response.
|
|
|
160% DCInput Oversizing
|
|
|
Wide MPPT voltage range:180V-1000V
|
|
|
Compatible with high power modules
|
|
Intelligent
Simple O&M |
Smartl-VCurve Diagnosis Function: locate PV string faults accurately and automaticallydetect faults
|
|
|
Intelligent Fault Detection:ac-side voltage and current waveforms real-time recorded, fast fault location
|
|
|
Support RS485/USB(WiFi/GPRS/Ethernet optional):remote monitoring and operation via PCor mobile phones
|
|
Reliable
Worry free |
IP66 Protection degree:support outdoor installation
|
|
|
DC&ACTypellSPD:prevent lightning damage
|
|
|
AFClFunction(Optional):when an arc-fault is detected theinverterimmediately stops operation
|
