Quick Details
-
Brand Name:
-
ANJUE
-
Model Number:
-
KT88-1018
-
Quality Certification:
-
ISO
-
Numbers of channels:
-
16 channels EEG, 2 channels ECG
-
Speed of sampling:
-
100 Hz/channel
-
Precision of sampling:
-
12 bit
-
Input impedance:
-
≥10MΩ
-
Level of noise:
-
≤5uV Vp-p
-
Common mode rejection ratio:
-
≥90dB
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Place of Origin:
-
China
-
Brand Name:
-
ANJUE
-
Model Number:
-
KT88-1018
-
Quality Certification:
-
ISO
-
Numbers of channels:
-
16 channels EEG, 2 channels ECG
-
Speed of sampling:
-
100 Hz/channel
-
Precision of sampling:
-
12 bit
-
Input impedance:
-
≥10MΩ
-
Level of noise:
-
≤5uV Vp-p
-
Common mode rejection ratio:
-
≥90dB

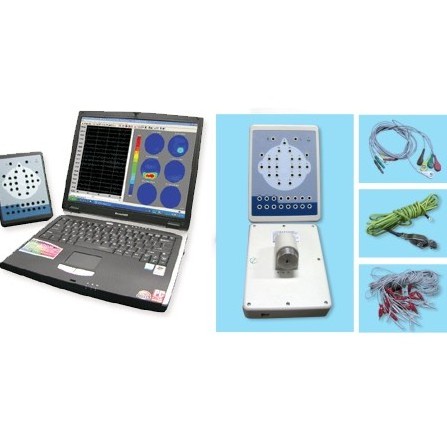

16 Channels Digital EEG System KT88-1018
Features
1. Method of 10/20 electrodes placement under international standard system, can change leads ways while replaying, and set electrode connection mode at will.
2. Powerful replaying function: support consecutive and rolling replaying models, adjustable amplitude and replaying speed. Special vertical time line, which marks the collecting time, divides the waveform in one second into 5 parts and convenient for doctor to analyze the waveform.
3. Multifunctional digital filter system, and provides many filtering methods.
4. Analyze and distill manifold parameters automatically. Choose and analyze many segments of wave at the same time.
5. Paritial amplificatory window ,more accurate measurement of the wave and the measure results can be adjusted manual.
6. Several models of BEAM can be displayed in the same screen with brainwave, such as three-dimensional rotary of BEAM, power spectrum graph, numerical BEAM, compressed spectrum graph and other graths.
7. Professional isolation transformer, dual power supply isolation system and optoelectronic data transmission to ensure security. Use USB interface to transmit data which just need to be inserted. Distance of digital signal transmission is up to a maximum of 30 meters. Patients and doctors can be operated in different rooms and monitoring system is optional.
8.Multifunctional flashlight of USB interface, and frequency can be controlled manually or automatically.
9.The perfect medical records management, convenient for data investigation, looking up patient case and modifying his (or her ) information.
10. Report with incorporating pictures and text, user could not only select report mode and edit it but also select the information to print out.
11. Digital synchronic system for video monitoring, recording and replaying. Video system of EEG graph. Long-distance transmission of medical records.
12. Option the portable computer to consist the portable EEG.
13.16 channels EEG and no video function.
14. It can load one template of report into office word.
15 .Physicians could add tag information at where it is needed to.
16. Transform the case file into EDF form in order to data or academic exchange.
17. Physicians could add events by himself, name it and define color. Set modes of display event expediently.
18. Export or load the case file.
Relative Models:
KT88-2400
KT88-3200
(1) ANJUE offer one year warranty, part of goods will enlarge to 24 months guarantees: within warranty, we offer our customers free service; beyond warranty, we offer customers paid service with cost price. We offer customers lifelong service. If there is any problem on our products,we will response in 12 hours by email,tel or fax.
(2) We offer customers new, good and qualified original products, which match manufacturer’s quality standard.
(3) The packages of devices are standard export standards,which is suitable for long distance transport.
(4) Every product have only identification serial number.
1.Key parts of our products are made of imported equipments. Some key parts are made in Germany and Japan.
2.We offer one year warranty, Provide spare parts with shipping for free within one year and just Charge the cost of accessories once after the warranty period.
3.Our company is certified company by SGS.
4.Our company is senior member of China Medical Device Industry Association.
