Industrial water cooling chiller ammonia absorption liquid nitrogen air cooled water absorption chiller

Brief Introduction

air cooled water chillers / water cooled water chillers

1. Manufacture
2. Latest Technology
3. Quality warranty
4. Easy operate
5. Different models

6. Wholesale / Retailed

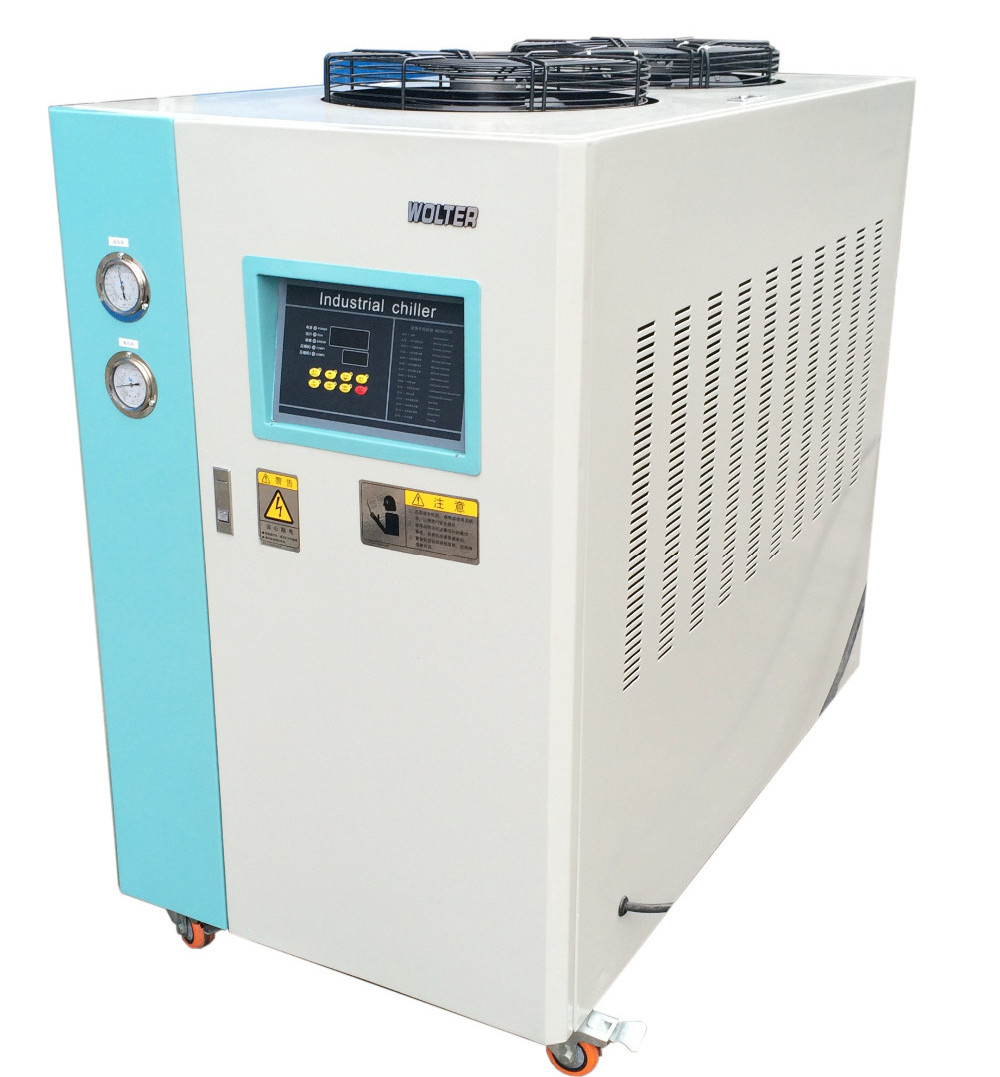

WTC-W series industrial chiller are applicable for cooling mould to reduce products molding cycle, also they are available in the cooling of equipment in order to maintain a normal temperature. Besides, they are suitable for other industries with the need of cooling.

Model : WTC-8W
Refrigerating Capacity : 25.3KW / 21758 kcal/h / 86323 btu/h
Compressor type : Scroll
Compressor power : 6kw/8hp
Refrigerant : R22 (R407 optional)
Refrigerant control mode : Thermostatic expansion valve
Evaporator : Tube-in-shell
Condenser : Tube-in-shell
Water tank capacity : 85L
Pump type : Stainless steel centrifugal pump
Pump power : 1.1kw
Pump flow : 80L/min
Temperature range : 5~35℃
Tolerance : ±0.5℃
L*W*H : 1180*800*1030mm
Weight : 300kg
Protections : high and low pressure controller/anti-freezing switch/overload protection/overheat protection/delayed protection

Features:
1. Cooling range 5~35℃ .
2. Adopts stainless steel made insulated water tank and evaporator.
3. Equipped with anti-freeze thermostat.
4. Heavy duty 3-phase pump ensures no blockages and high torque.
5. Refrigerant loop controlled by high and low pressure switches.
6. R22 refrigerant is used as standard and optional R407 for efficient cooling.
7. Refrigeration loop controlled by high and low pressure switches.
8. Compressor and pump overload relays.
9. Adopt imported temperature controller maintains an accuracy of ±0.5℃.
10. All adopt imported compressors.
11. Compact design,easy to operate and maintain.
12. Low pressure pumps are standard configurations,while middle or high pressure pumps are optionally available.
13. Level meter of water tank is available as an option.
14. Expansion valve for accurate adjustment of refrigerant.
15. WTC-W water-cooled type adopts tube-in-shell condenser design for quick heat transfer and excellent heat radiation.
16. WTC-A air-cooled type adopts fin condenser design without any need of cooling water for excellent heat transfer and rapid cooling.

Q1: Are you trading company or manufacturer?
A: We are factory which has over 15 years' manufacturing experience and 80% engineer work have more than 10 years.
Q 2 : How long is your delivery time?
A: 5 - 20 days after order confirmed. Based on the item and quantity.

Q3 : What's the MOQ?
A: 1 set.
Q4: What is your terms of payment?
A: If amount ≤ 1000 USD, 100% in advance, if amount ≥ 1000 USD, T/T 30% as deposit, and 70% balance before shipping. We'll show you the photos of the products and package.
Q5: Where's your general loading port?
A: Shanghai port and Zhangjiagang Port
Q6: Can you do OEM?
A: Yes, we can do OEM.
Q7: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: How to deal with the faulty?
A: First, our products are produced in strict quality control system, but if any faulty, we'll send new spare parts for free in one warranty year.
Secondly, our technician will periodically follow up customer to help to do maintenance and ensure equipment operation 7/24 be guaranteed.
Q9: How can get the shipping cost?
A: You tell us your destination port or delivery address, we check with Freight Forwarder for your reference.
