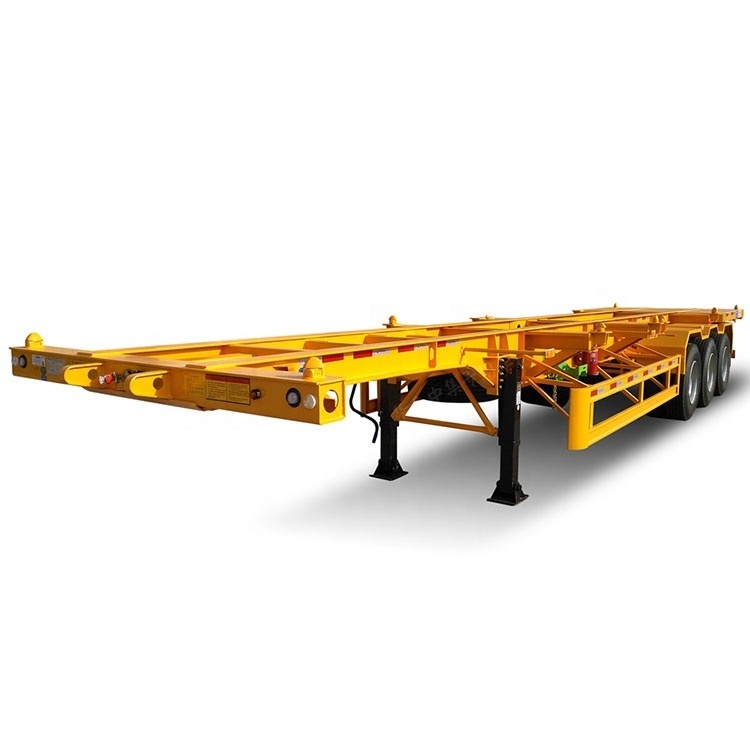

New 2-axle 3-axle 40-foot frame semi-trailer container chassis

New 2-axle 3-axle 40-foot frame semi-trailer container chassis

FOB Reference Price: Get Latest Price

≥1 Pieces

US $3000

≥10 Pieces

US $2900

≥20 Pieces

US $2800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Size:: 12500*2500*1280mm

Place of Origin:: Shandong, China

Product name:: Skeleton Container Chassis Semi Truck Trailer

Axle:: 13 Ton Fuwa Brand

Suspension:: Mechanical Suspension

Tire:: 12R22.5

Landing Gear:: 28t Heavy Duty Landing Gear

King pin:: 2"(50mm)or3.5"(90mm)

Loading capacity:: 30T~ 60T

Color:: Customers Optional

Twist Locks:: 12uints

Leaf Spring:: 90(W)mm*13(Thickness)mm*10(Layer)

Quick Details

Type:: Semi-Trailer

Max Payload:: 40T

Brand Name:: Ruida

Size:: 12500*2500*1280mm

Place of Origin:: Shandong, China

Product name:: Skeleton Container Chassis Semi Truck Trailer

Axle:: 13 Ton Fuwa Brand

Suspension:: Mechanical Suspension

Tire:: 12R22.5

Landing Gear:: 28t Heavy Duty Landing Gear

King pin:: 2"(50mm)or3.5"(90mm)

Loading capacity:: 30T~ 60T

Color:: Customers Optional

Twist Locks:: 12uints

Leaf Spring:: 90(W)mm*13(Thickness)mm*10(Layer)

20FT Skeleton Semi Trailer	40FT Skeleton Semi Trailer	45FT Skeleton Semi Trailer
Brand: Vehicle Master	Brand: Vehicle Master	Brand: Vehicle Master
2 Axles/3 Axles	3 Axles/ 4 Axles	3 Axles/ 4 Axles
20ft Container Loading	140ft/220ft Container Loading	145ft/140ft/2*20ft Container Loading
Loading Capacity: 20-50 Tons	Loading Capacity: 30-80 Tons	Loading Capacity: 30-80 Tons
Type: Gooseneck or Tandem	Type: Gooseneck or Tandem	Type: Gooseneck or Tandem
Main Bean
Material: Q345/T700	Material: Q345/T700	Material: T700
Upper Plate Thickness: 12mm	Upper Plate Thickness: 14mm	Upper Plate Thickness: 10mm
Middle Plate Thickness: 6mm	Middle Plate Thickness: 6mm	Middle Plate Thickness: 5mm
Lower Plate Thickness: 12mm	Lower Plate Thickness: 16mm	Lower Plate Thickness: 10mm
Height: 500mm	Height: 500mm	Height: 420mm
Dimension
LWH: 7000mm2480mm1560mm	LWH: 12400mm2480mm1580mm	LWH: 13950mm2500mm1600mm
Axle
2/3 Axles *13 Ton VEHCILE MASTER/FUWA/BPW	3/4 Axles *13 Ton VEHCILE MASTER/FUWA/BPW	3/4 Axles *13/16 Ton VEHCILE MASTER/FUWA/BPW
Tire
12R22.5 (8/12 Pieces) Linglong/Triangle/Double Coin/Bridgestone	12R22.5 (12/16 Pieces) Linglong/Triangle/Double Coin/Bridgestone	12R22.5 (12/16 Pieces) Linglong/Triangle/Double Coin/Bridgestone
Rim
9.00*22.5 (8/12 Pieces) Steel/Aluminum	9.0*22.5 (12/16 Pieces) Steel/Aluminum	9.00*22.5 (12/16 Pieces) Steel/Aluminum
Leaf Spring
90mm13mm10 Pieces 90mm16mm10 Pieces	90mm13mm10 Pieces 90mm16mm10 Pieces	90mm13mm10 Pieces 90mm16mm10 Pieces
King Pin
#50 (2")/#90 (3.5") JOST/Other Brand	#50 (2")/#90 (3.5") JOST/Other Brand	#50 (2")/#90 (3.5") JOST/Other Brand
Landing Gear
28 Tons Two Speed JOST/Other Brand	28 Tons Two Speed JOST/Other Brand	28 Tons Two Speed JOST/Other Brand
Twist Lock
4 Sets	12 Sets	12 Sets
Painting
Electrophoresis Painting	Electrophoresis Painting	Electrophoresis Painting

Yuncheng Ruida special Automobile Manufacturing Co., Ltd. was founded at the beginning with a high starting point, large-scale operation, covers an area of 150,000 square meters, operating capital of 28 million yuan, 16 senior management personnel, 38 senior professional and technical personnel, 285 employees, domestic first-class technology and equipment, sophisticated technology, testing equipment is complete, and the performance of all vehicles produced can reach Indicators to national implementation standards.
Yuncheng Ruida special Automobile Manufacturing Co., Ltd. is a set of scientific research, production, sales in one of the specialized enterprises, the company's products to reach or exceed other similar products in the domestic performance indicators, its products have been included in the "Announcement" management. From 10 tons to 160 tons, including container special vehicles and plate semi-trailers, van and van refrigerated fresh-keeping semi-trailers, plate and low-bearing surface semi-trailers, full trailers, dump trucks and other special vehicles, vehicle transport semi-trailers form a large series of more than 50 varieties. Semi-trailer structure is reasonable, reliable quality, products sell well all over the country, by the majority of users trust.

1. who are we?
We are based in Shandong, China, start from 2009,sell to Africa(80.00%),Southeast Asia(20.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Semi Trailer,Used semi-trailer,Sinotruk,Flat container semi trailer,used chemical equipment

4. why should you buy from us not from other suppliers?
We are a professional enterprise that integrates scientific research, production, and sales. Our products meet the performance indicators of similar products both domestically and internationally, and are listed in the "Announcement" for management

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
