Quick Details
-
Size:
-
15000*2500*2400MM
-
Place of Origin:
-
Tianjin, China
-
Product name:
-
Side dump semi trailer
-
Dimension:
-
15000*2500*2400MM
-
Color:
-
optional
-
Payload:
-
40-100T
-
Suspension:
-
Mechanical suspension with spring
-
Landing Gear:
-
JOST A400
-
King pin:
-
JOST 3.5 Kingpin
-
Axle:
-
FUWA brand
-
Tire:
-
Double coin brand 12.00R20
-
Rim:
-
8.5-20 steel disc wheel
Quick Details
-
Type:
-
Full Trailer
-
Max Payload:
-
40-100T
-
Brand Name:
-
YUETONG
-
Size:
-
15000*2500*2400MM
-
Place of Origin:
-
Tianjin, China
-
Product name:
-
Side dump semi trailer
-
Dimension:
-
15000*2500*2400MM
-
Color:
-
optional
-
Payload:
-
40-100T
-
Suspension:
-
Mechanical suspension with spring
-
Landing Gear:
-
JOST A400
-
King pin:
-
JOST 3.5 Kingpin
-
Axle:
-
FUWA brand
-
Tire:
-
Double coin brand 12.00R20
-
Rim:
-
8.5-20 steel disc wheel
|
Yuetong Automobile Industry (Tianjin) Co.,Ltd.
|
|
|
|
|||
|
Model number
|
Side Dump Semi Trailer
|
Model number
|

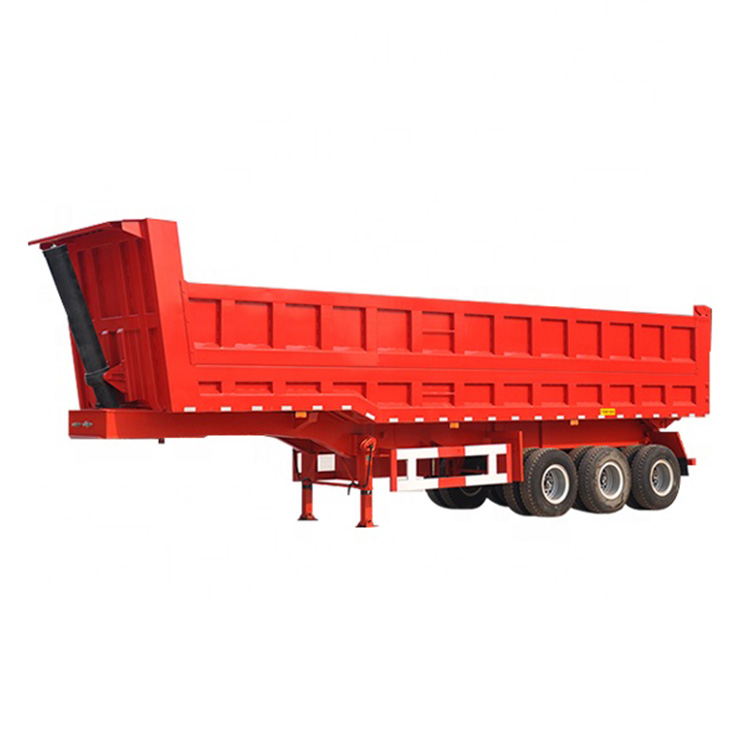

Rear Dump Semi Trailer
|
|||
|
Outer Dimension
|
15000*2500*2400 Or Customized
|
Outer Dimension
|
(8500-11500)*2500*3700 Or Customized
|
|||
|
Tare weight
|
About 20000kg Or Customized
|
Tare weight
|
About 9000-14000KGS Or Customized
|
|||
|
Air tank
|
45L,2 pcs, China Or Customized
|
Side wall
|
4mm-8mm
|
|||
|
Side wall
|
3mm
|
Bottom platform
|
5mm-10mm
|
|||
|
Chassis
|
|
Chassis
|
|
|||
|
Main beams
|
Material Q345B. Fabricated “H” beam height 530mm, Top flange thickness 18mm, Middle web thickness 12mm, Bottom flange thickness
|
Main beams
|
Height:500mm, top flange is 8-16 mm,middle web is 5-8mm,bottom flange is
|
|||
|
|
20mm
|
|
10-18 mm
|
|||
|
Axle
|
3pc*20 ton capacity, FUWA brand
|
Axle
|
3 axles, 13T/16T/20T,FUWA/BPW/YUETONG brand
|
|||
|
Landing gear
|
JOST A400
|
Landing gear
|
FUWA/BPW/YUETONG brand
|
|||
|
King Pin
|
JOST 3.5 Kingpin, bolted in type
|
King Pin
|
JOST 2.00 or 3.5 inch
|
|||
|
Suspension
|
Mechanical suspension with spring
|
Suspension
|
Mechanical suspension (Germany Type or America Type) or Air suspension
|
|||
|
Brake chamber
|
T30/30 spring brake chambers on all axles
|
Leaf Spring
|
90(W)mm*13(Thickness)mm*10 Layer
|
|||
|
Brake
|
Dual line pneumatic brake, with hose and connector
|
Brake
|
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; Two pieces of 45L air tanks
|
|||
|
System
|
|
System
|
|
|||
|
Rim
|
8.5-20 steel disc wheel,10 holes ISO，13pcs,8.5-20
|
Rim
|
9.00-22.5/8.00-20/8.5-20 China Brand
|
|||
|
Tire
|
Double coin brand, 12.00R20，13pcs，12.00R20,13
|
Tire
|
12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional
|
|||
|
ABS
|
None
|
ABS
|
Optional
|
|||
|
Valve
|
Wabco relay valve
|
Valve
|
WABCO valve
|
|||
|
Electrical system
|
Voltage: 24 Volt
|
Electrical system
|
Voltage: 24 Volt
|
|||
|
|
Receptacle: 7 way socket standard, China
|
|
Receptacle: 7 way socket standard, China
|
|||
|
|
Front lamp: White
|
|
Front lamp: White
|
|||
|
|
Side marker lamp: White & Red
|
|
Side marker lamp: White & Red
|
|||
|
Tool box
|
1 pc, or according to the requirement of the buyer
|
Tool box
|
1 pc, or according to the requirement of the buyer
|
|||
|
Painting
|
Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um
|
Painting
|
Compete Chassis sand blasting to clean rust,l coat of anticorrosive prime,2 coats of final
paint |
|||
|
Shipping Terms
|
By Bulk Cargo, RORO or 40HQ Containers
|
Shipping Terms
|
By Bulk Cargo, RORO or 40HQ Containers
|
|||
Q:How to guarantee the quality of your products?
A:Experienced technicians, strict production procedures and check before delivery and shipment.
Q:What kind of payment do you accept?
A:We accept T/T 30% down payment before production arrangement, T/T 70% balance payment before ready to delivery. We also accept L/C and other payments can be negotiate.
Q:What's your delivery time?
A:Production time 20 days after down payment received.
Q:What's your quality guarantee?
A:12 months of main beam quality guarantee is provide.
Q:Are you a Manufacturer or Trading company?
A:We are trailer manufacturer and our factory is in Shandong.
