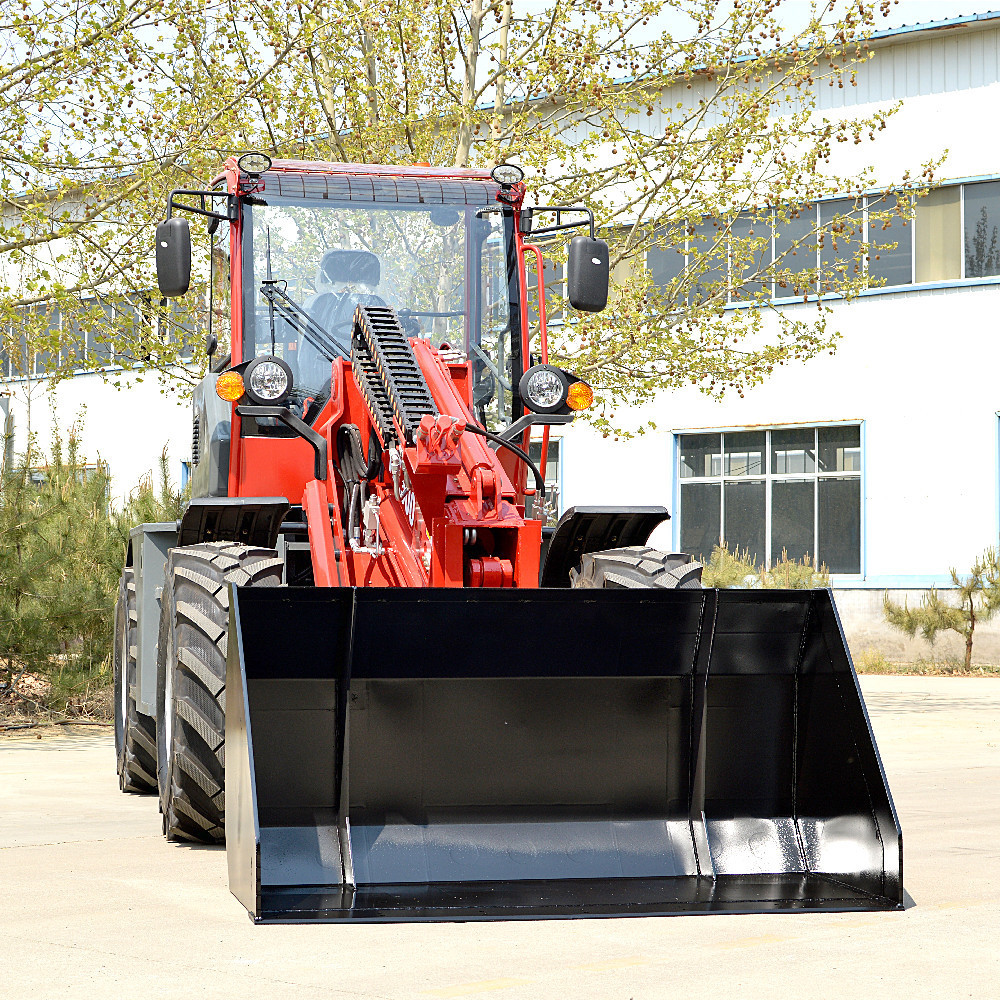

5m lifting height telehandler wheel loader TL2500 Front end shovel loader with telescopic boom
Telehandler Front end shovel loader TL2500
TL2500 offers you machines featuring different equipment types. Depending on your current task the engine, the driver's cab and the tyre equipment can be set up according to your individual needs. Additionally, we offer a huge range of mounting equipment so as to make sure that your machine is perfectly geared to your individual demands
1.The telescopic boom which can reach 4.65m greatly increase it’s working scope.
2.The articulated structure and axle transmission design makes it powerful and has better pass through ability.
3.The seals, valve & joystick handle are famous oversea products which guarantee that it’s a reliable long lasting machine.
4.Adjustable spring seat and optional air conditioner makes the operating more comfortable.
5.Wide view cabin and two entrance makes the operating convenient and safe.
6.Quick coupling system, mechanic joystick and buttons makes the operating easy and convenient.
7.The rear cover can be opened as a whole part just by your hands, which makes the maintenance much more simple
|
No
|
Item
|
Data
|
|
1
|
Power
|
76KW
|
|
2
|
Bucket capacity
|
1.2 M3
|
|
3
|
Operating weight
|
5.8Ton
|
|
4
|
Max. tractive force
|
2500kg
|
|
5
|
Max. breakout force
|
42kN
|
|
6
|
Tipping load
|
2800kg
|
|
7
|
Engine emission
|
Euro III ,Euro V,EPA tier 4
|
|
8
|
Max. travel speed
|
17km/h
|
TL2500 Telehandler front shovel loader basic version
TL2500 Farm tractor front end loader options
TL2500 telescopic boom wheel loader available attachments
SALES AND SERVICE NETWORK
1. Quick response to every inquiry.
2. Professtional and detailed answer to any of customer's questions.
3. Strict QC and in time delivery
4. Offer all relative material for customer to know and better use the machine.
5. Periodically after service follow up, offer any necessary support if needed.
6.For the new machine, within determined limits, the manufacture guarantees for a period of 12 months after bought or 1000 working hours(whichever comes first).
7.The warranty includes repairation or replace the parts for free which were proved to be defective in origin by the technical
department of the manufacture.
8.The repairation or replacement for the parts should not exceed the warranty period.
9.The warranty is valid on the condition of all the terms listed in the contract was observed
If any question ,Please contact with Angelia Peng
