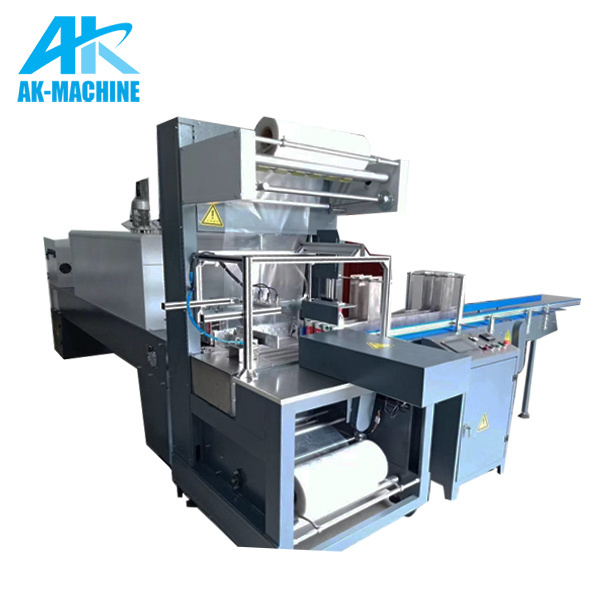

Packaging Machines Automatic Heat Sealer Shrink Wrapper Machine For 2L Water Bottles

Packaging Machines Automatic Heat Sealer Shrink Wrapper Machine For 2L Water Bottles

FOB Reference Price: Get Latest Price

≥1 Sets

US $9000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight (KG):: 2000

Voltage:: 220V/380V, 380v 50hz

Place of Origin:: Jiangsu, China

Brand Name:: AK-MACHINE

Dimension(L*W*H):: L5050*W3300*H2100

After-sales Service Provided:: Engineers available to service machinery overseas

Power:: 20kw

Packing material:: PE Film

Usage:: heat shrink wrapping machine

Packing speed:: 8-12 package

Bottle type:: plastic bottle ,glass bottle

Main Function:: automatic shrink wrapping machine

Advantage:: Fast Speed

Machine type:: Bottle Packing Machine

Marketing Type:: New Product 2020

Quick Details

Function:: Wrapping

Packaging Type:: Bottles

Packaging Material:: Plastic

Weight (KG):: 2000

Voltage:: 220V/380V, 380v 50hz

Place of Origin:: Jiangsu, China

Brand Name:: AK-MACHINE

Dimension(L*W*H):: L5050*W3300*H2100

After-sales Service Provided:: Engineers available to service machinery overseas

Power:: 20kw

Packing material:: PE Film

Usage:: heat shrink wrapping machine

Packing speed:: 8-12 package

Bottle type:: plastic bottle ,glass bottle

Main Function:: automatic shrink wrapping machine

Advantage:: Fast Speed

Machine type:: Bottle Packing Machine

Marketing Type:: New Product 2020

Product Description

Packaging Machines Automatic Heat Sealer Shrink Wrapper Machine For 2L Water Bottles

The machine dimension	L5050W3300H2100mm
The weight	1.2t
Heat shrinkable furnace size	L3700W920H1750mm
The biggest package size	L420W280H350mm
Packing speed	8-12package/minute
Conveyor belt height	920mm(adjustable100mm)
Work pressure	0.6-0.8Mpa
The engine power	20kw
The film type	PE film
The width of the film	≤600

The PE Shrink Film Packaging Machine is developed especially for mineral water, beverage, wine, beer, product and so on infusion medicine bottle combination packaging, with stable function, and the packed articles tight and orderliness. It can be handled as a single pushing machine when high speed demanded.

Detailed Images

Frequency converter speed regulation, two-stage bottle feeding device.

Pneumatic mechanism is used for pushing bottle and heat sealing and cutting.

Induction switch controls film length.

Touch screen and PLC control system greatly increase the reliability of equipment operation.

Professional design - protecting cylinder can effectively prevent bottles from running away when they are packed to ensure the reliability of small bottles.

Double air circulation fan ensures temperature balance in shrinkage furnace.

Super large air cooling system to ensure rapid finalization.

High temperature resistant glass fiber Teflon conveyor belt, smooth conveying, high strength and wear resistance.

Frequency conversion stepless speed regulation mesh belt conveyor mechanism. Wing-shaped stainless iron heating system, durable.
