- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Construction works
-
Rated Lifting Moment:
-
1142KN.m
-
Span:
-
7 m
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
Top Brand
-
Weight (KG):
-
33240 kg
-
Maximum rated lifting weight:
-
100t
-
Engine maximum output torque:
-
1142KN.m
-
Max Gradeability:
-
28%
Quick Details
-
Rated Loading Capacity:
-
100 ton
-
Max. Lifting Height:
-
63.3 m
-
Engine Brand:
-
Top Brand
-
Application:
-
Construction works
-
Rated Lifting Moment:
-
1142KN.m
-
Span:
-
7 m
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
Top Brand
-
Weight (KG):
-
33240 kg
-
Maximum rated lifting weight:
-
100t
-
Engine maximum output torque:
-
1142KN.m
-
Max Gradeability:
-
28%
Contact
Sales Manager
Carlo Zhu
E-mail: carlo@liebty.com
Whatsapp/ Wechat/Mobile: +86 19817179887
Liebty Machinery Technology (Hangzhou) Co., Ltd.
Carlo Zhu
E-mail: carlo@liebty.com
Whatsapp/ Wechat/Mobile: +86 19817179887
Liebty Machinery Technology (Hangzhou) Co., Ltd.
Address: Room 208,Building 3, No.1866, Binxing Road, Changhe street,Bingjiang District,Hangzhou,Zhejiang,China
Products Description

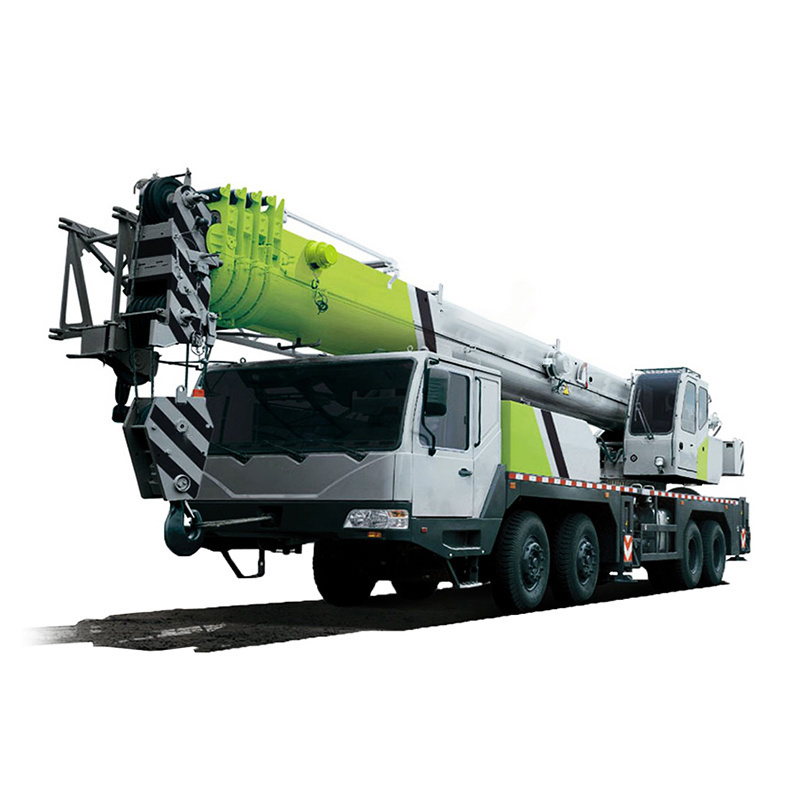

New 25t hydraulic truck crane QY25H552 for sale
Product Description
Full cab, double reduction axles, rubber suspension, Weichai Euro V (WP7.300 / 220kW) engine
9-speed full synchronizer gearbox, five U-shaped main boom (10.7 ~ 42m), one jib (8m)
Double hoist, dual variable motor, pilot control operation Five outriggers, air conditioner, tri-color light, 25t main hook, 3t auxiliary hook.
Specifications
|
ITEM
|
|
|
|
REMARK
|
||
|
working performance
|
Max rated lifting capacity
|
kg
|
25000
|
|
||
|
|
Basic boom max torque
|
kN.m
|
1142
|
|
||
|
|
Full extended boom torque
|
kN.m
|
768
|
|
||
|
|
Basic boom
|
m
|
11.3
|
|
||
|
|
Main boom
|
m
|
42.1
|
|
||
|
|
Jib
|
m
|
50
|
|
||
|
working speed
|
Maximum single rope speed (main winch)
|
m/min
|
135
|
Fourth layer
|
||
|
|
Maximum single rope speed (sub winch)
|
m/min
|
120
|
Second layer
|
||
|
|
Lifting time
|
s
|
35
|
|
||
|
|
Boom extension time
|
s
|
80
|
|
||
|
|
Slewing speed
|
r/min
|
0~2.7
|
|
||
|
driving
|
Max using altitude
|
m
|
2000
|
|
||
|
|
Max driving speed
|
km/h
|
90
|
|
||
|
|
Gradeability
|
%
|
45
|
|
||
|
|
Min turning radius
|
m
|
≤21
|
|
||
|
|
Min ground clearance
|
mm
|
260
|
|
||
|
|
Fuel consumption per hundred kilometers
|
L
|
29
|
|
||
|
weight
|
Driving weight (total weight)
|
kg
|
33240
|
|
||
|
|
Vehicle weight
|
kg
|
33045
|
|
||
|
|
Front axle load
|
kg
|
7240
|
|
||
|
|
Rear axle load
|
kg
|
26000
|
|
||
|
dimension
|
Overall dimension
|
mm
|
12870×2550×3550
|
|
||
|
|
Outrigger L
|
m
|
5.43
|
|
||
|
|
Outrigger W
|
m
|
6.3,4.3
|
|
||
|
|
Tail turning radius
|
mm
|
3260
|
|
||
|
|
Main boom
|
m
|
10.7~42.0
|
|
||
|
|
Boom angle
|
°
|
-2~80
|
|
||
|
|
Jib
|
m
|
8
|
|
||
|
|
Jib angle
|
°
|
0,15,30
|
|
||
