Cleaning conveyor belt roller rotary belt brush cleaner belt conveyor

Cleaning conveyor belt roller rotary belt brush cleaner belt conveyor

FOB Reference Price: Get Latest Price

≥10 Pieces

US $500

≥20 Pieces

US $490

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Henan, China

Brand Name:: Debon

Voltage:: 380V

Dimension(L*W*H):: Belt Width: 400~2400mm

Core Components:: Conveyor belt cleaning

Product name:: Cleaning conveyor belt roller rotary belt brush cleaner belt conveyor

Belt Width:: 450~2400mm

Material Humidity:: ≤5%

Belt Speed:: All belt speed

Pattern and Plain belt:: Available for pattern belt and plain belt

Working temperature:: -40~90°C

Brush Tipes:: Nylon 66

Motor:: Non explosion proof and Explosion proof

Replacelabe brush tipes:: cost effecience

Certification:: ISO, SGS

Quick Details

Power:: 1.5 KW

Warranty:: 6 Month

Width or Diameter:: 40mm

Place of Origin:: Henan, China

Brand Name:: Debon

Voltage:: 380V

Dimension(L*W*H):: Belt Width: 400~2400mm

Core Components:: Conveyor belt cleaning

Product name:: Cleaning conveyor belt roller rotary belt brush cleaner belt conveyor

Belt Width:: 450~2400mm

Material Humidity:: ≤5%

Belt Speed:: All belt speed

Pattern and Plain belt:: Available for pattern belt and plain belt

Working temperature:: -40~90°C

Brush Tipes:: Nylon 66

Motor:: Non explosion proof and Explosion proof

Replacelabe brush tipes:: cost effecience

Certification:: ISO, SGS

Cleaning conveyor belt roller rotary belt brush cleaner belt conveyor

Product Description

Cleaning conveyor belt roller rotary belt brush cleaner belt conveyor

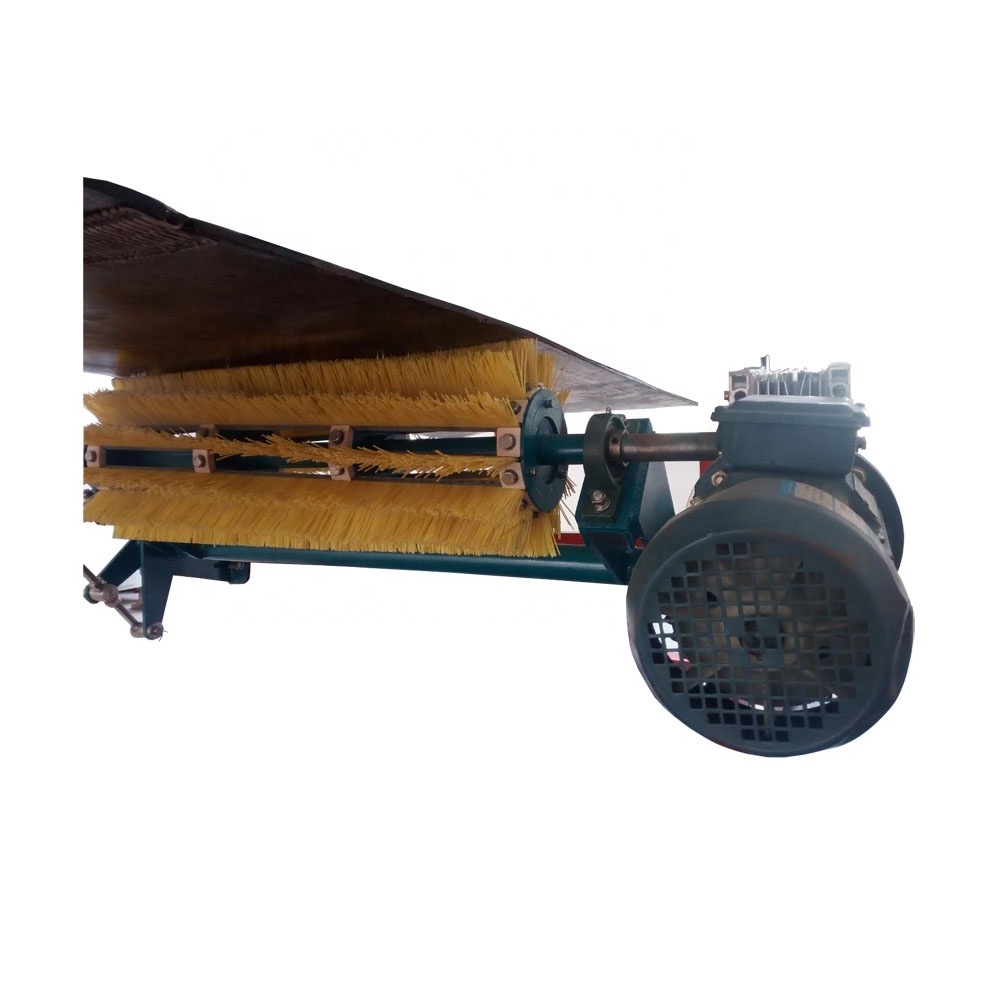

DB-XQ-I is a motorized brush style conveyor belt cleaner installed under the return belt of the conveyor.It has cylindrical nylon brush and tips of the brush touch the belt surface gently. The rotating brush turns in the opposite direction of the belt.Therefore, it brushes away the sticky materials into the funnel.

Features:
1) Replaceable brush tips: 12 brush strips for each brush roller, just remove worn strips and insert new strips, no need replace whole brush roller, very cost-efficient.
2) Spiral brush cleaner uses 1.5mm nylon 66 bristles wrapped in spiral around the hub
3) Specialty brush cleaner: food grade, high temperature, fertilizer, etc.

Advantages:

1. Replaceable brush strips, total 12 brush strips. Easy installation, and you just need remove worn strips and insert new strips.
2. Continuous contact, efficient cleaning, good results.
5. Nylon brush produced by special production process, non material sticking.
6. Gentle contact without any wear-out to the belt, extending service life of belt.

Cleaning conveyor belt roller rotary belt brush cleaner belt conveyor

The rotating direction of the nylon brush is opposite to that of the return belt,
Therefore, it brushes awaymaterials adhered to the belt surface into the funnel.

Application

1.Belt Width:400~2000(mm)
2.Material humidity:≤5%
3.Applicable for ribbed, flighted, grooved or chevron conveyor belts.
4. Working temperature: -40~90 C
5. Handled material: dry and fine material

Other Types of our belt cleaners:

We've been producing belt conveyor accessories since 1992. Belt cleaner is our hot sale. We offer belt cleaners that work with all belt sizes and speeds, regardless of industry or type of material. We also offer belt cleaners that work in the most challenging and unique environments. Our belt cleaners includes:

Primary and secondary polyurethane belt scraper: heavy duty and standard duty
H type and P type alloy belt cleaner
Secondary PU & alloy belt cleaner
Vee plough cleaner
Brush belt cleaner
Finger belt cleaner, etc.

Pictures:

Technical Data

Cleaning conveyor belt roller rotary belt brush cleaner belt conveyor

Voltage	380V AC/-10%
Power	1.5 Kw
Output speed	140 r/min
Trasmission ratio	10i
Output torque	88Nm
Lubricant oil	L-CKD
