Quick Details
-
Dimension(L*W*H):
-
680*680*1350mm
-
Weight:
-
190 kg
-
Process ability:
-
2000m3 per hour
-
Motor Power:
-
2.2kw
-
Filter area:
-
16.5m2
-
Filter efficiency:
-
0.3um, >99.9%
-
Noise:
-
≤72dB
-
Filter element type:
-
Nano flame-retardant
Quick Details
-
Minimum Particle Size:
-
0.3um
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
POWER SPACE ; DRIC
-
Dimension(L*W*H):
-
680*680*1350mm
-
Weight:
-
190 kg
-
Process ability:
-
2000m3 per hour
-
Motor Power:
-
2.2kw
-
Filter area:
-
16.5m2
-
Filter efficiency:
-
0.3um, >99.9%
-
Noise:
-
≤72dB
-
Filter element type:
-
Nano flame-retardant

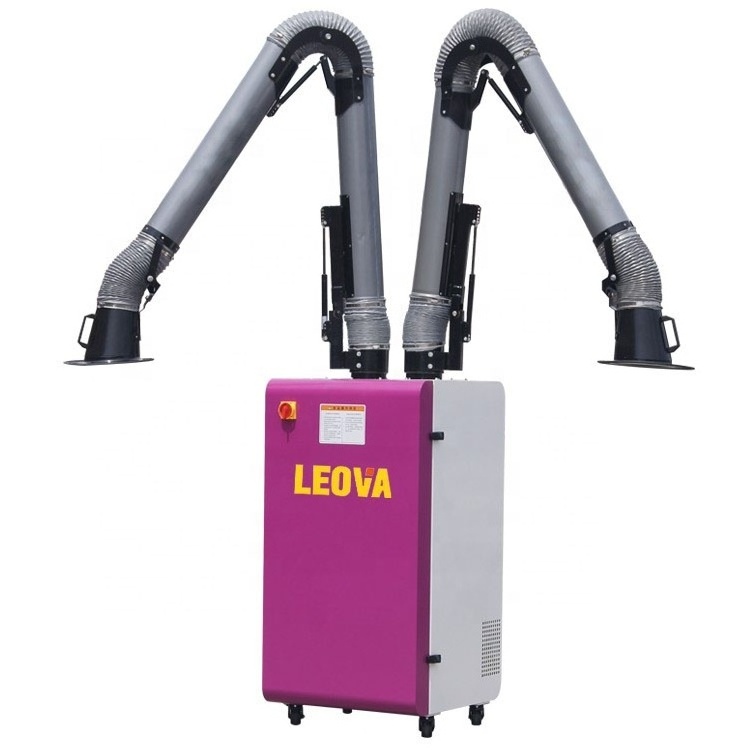

Automatic pulse jet cleaning HEPA mobile portable welding fume extractor portable air cleaner
|
Item
|
Parameter
|
|
|
||
|
Model
|
LW1201E-022AF
|
LW1201E-030AF
|
LW1201E-030BF
|
||
|
Process capacity
|
2000m³/h
|
2800m³/h
|
2800m³/h
|
||
|
Motor power
|
2.2Kw
|
3Kw
|
3Kw
|
||
|
QTY of filter cartridge
|
1
|
1
|
1
|
||
|
Filter area
|
16.5m²
|
16.5m²
|
16.5m²
|
||
|
Filter efficiency
|
0.3μm; >99.9%
|
0.3μm; >99.9%
|
0.3μm; >99.9%
|
||
|
Noise
|
≤72dB
|
≤72dB
|
≤72dB
|
||
|
QTY of exhaust arm
|
1
|
1
|
2
|
||
|
Filter element
|
Ahlstrom nano flame-retardant
|
Ahlstrom nano flame-retardant
|
Ahlstrom nano flame-retardant
|
||
|
Dust cleaning method
|
Pulse automatic
blowing-back dust removal system by compressed air |
Pulse automatic
blowing-back dust removal system by compressed air |
Pulse automatic
blowing-back dust removal system by compressed air |
||
|
Size(L*W*H)
|
680*680*1350mm
|
680*680*1350mm
|
680*680*1350mm
|
||
2. By means of simulated calculation, ourproprietary impeller structureis developed independently : High wind pressure, large suction capacity, low noise and low energy consumption. (aluminum impeller, explosion-proof)
3. Exhaust arm adopts precise 360° slewing support,flexible rotation, arbitrary hovering, wide range of movement,single-arm and double-arm for you to choose; External framework, so inner wall of arm is smooth and no wind resistance.
4. The hood is equipped with stainless steel spark capturemesh, inner wall is smooth and no wind resistance.
5.Standard filter guide channel in the dust purification room has the function of preventing spark and separating gas and dust,and reducing dust's direct impact on the filter element, thus extending the service life of filter element.
6.Reasonable air duct with submerged flow baffle structure, low wind pressure loss, high dust collection efficiency, no escap. Convenient and quick to clean the dust in drawer.
7. High efficiency nano flame-retardant filter element, imported material, large filtrationarea, lowwind pressure loss, high flame retardant grade,high temperature resistance, g
ood wear resistance, no risk of spontaneous combustion, high efficiency and precise.
8.Wide range of uses: Welding fume dust removal, powder removal,grinding and polishing dust removal, small specific gravity fine metal cutting dust removal
9. One-button start switch, electronic control system is easy to operate, reliable and durable. Automatic pulse jet blowing-back dust removal device can clean dust in machine effectively
10.Equipped with overcurrent and overload protection. Adopting famous brand motors
11.Equipped with brake casters, flexible and reliable.
