Quick Details
-
Voltage:
-
1P 220V 50Hz
-
Current:
-
depends
-
Rated Capacity:
-
depends
-
Rated Duty Cycle:
-
depends
-
Dimensions:
-
1320*1000*1800
-
Use:
-
Butt welding, longitudinal welding
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Blue or Customized
-
Weldment:
-
Tubes, flat sheets, cylinders, cones, sinks, tank shells etc.
-
Weldable Material:
-
Any weldable materials like Steel, Alloy, Aluminum etc.
-
Options:
-
Wire feeder, Oscillator, Tracker
-
Service:
-
OEM, ODM
-
Certification:
-
CE/ISO9001
-
Weight:
-
390Kg
-
Type:
-
Other
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Hanyan Technology
-
Weight (KG):
-
390
-
Voltage:
-
1P 220V 50Hz
-
Current:
-
depends
-
Rated Capacity:
-
depends
-
Rated Duty Cycle:
-
depends
-
Dimensions:
-
1320*1000*1800
-
Use:
-
Butt welding, longitudinal welding
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Blue or Customized
-
Weldment:
-
Tubes, flat sheets, cylinders, cones, sinks, tank shells etc.
-
Weldable Material:
-
Any weldable materials like Steel, Alloy, Aluminum etc.
-
Options:
-
Wire feeder, Oscillator, Tracker
-
Service:
-
OEM, ODM
-
Certification:
-
CE/ISO9001
-
Weight:
-
390Kg
-
Type:
-
Other

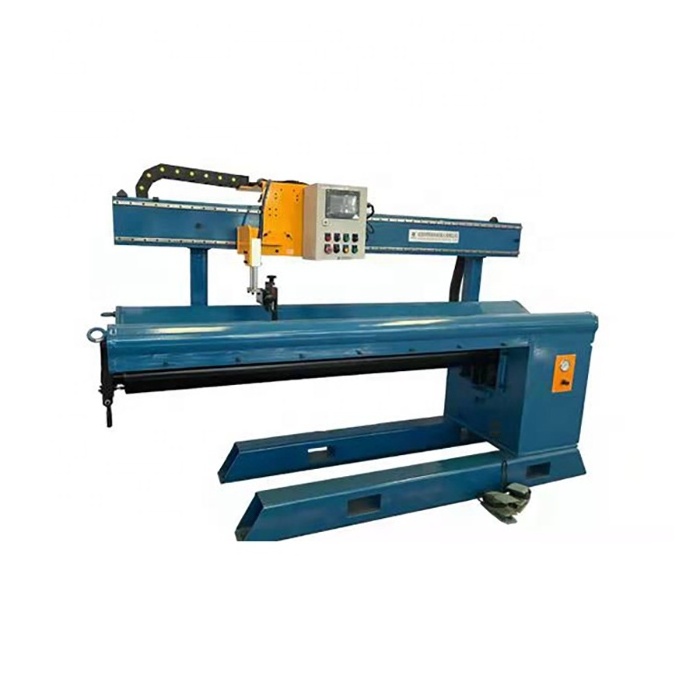

Designed for longitudinal seam welding.
Can be used with TIG/MIG/MAG/PAW and other welding powers and torches for different welding needs.
|
Model |
Welding length(mm) |
Welding thickness(mm) |
Applicable diameter(mm) |
Dimension(mm) |
Weight (Kg) |
||
|
Length |
Width |
Height |
|||||
|
ZF-500 |
500 |
0.5-3.0 |
75-750 |
1320 |
1000 |
1800 |
390 |
|
ZF-1000 |
1000 |
0.5-6.0 |
115-700 |
1900 |
1100 |
1800 |
1150 |
|
ZF-1500 |
1500 |
0.5-6.0 |
150-700 |
2475 |
1100 |
1850 |
1550 |
|
ZF-2000 |
2000 |
0.5-6.0 |
180-700 |
2980 |
1100 |
1850 |
2050 |
|
ZF-2500 |
2500 |
0.5-6.0 |
200-700 |
3455 |
1100 |
1950 |
2450 |
|
ZF-3000 |
3000 |
0.5-6.0 |
270-700 |
4340 |
1100 |
1950 |
3050 |
1. Customized service:
OEM, color, welding length, applicable diameter, water cooling, shield gas protection, centring, weld oscillating, wire feeding, automation level, welding speed, special jigs, assembling, welding capacity, welding quality test......all are available!!!
2. After service:
12 month, limited, from delivery date, engineers available to service machinery overseas.
