Quick Details
-
Type:
-
Bluetooth 5.3, RF Module
-
Country of Origin:
-
China
-
Brand:
-
Holyiot
-
Brand Name:
-
Holyiot
-
Certification:
-
CE FCC RoHS
-
Function:
-
Broadcasting Advertisement
-
Interface:
-
UART ,SPI
-
Size:
-
18.0*13.5*1.8mm
-
Frequency:
-
2.4Ghz
-
Security:
-
128-bit AES CCM,ECB,AAR Arm TrustZone CryptoCell 310
Quick Details
-
Model Number:
-
Holyiot-22043-nRF52840
-
Chipset:
-
Nordic nRF52840, nRF52840
-
Application:
-
IOT/Games/Medical/Wearable/Fitness/Keyboard/Mouse, Bluetooth Transmitter And Receiver
-
Type:
-
Bluetooth 5.3, RF Module
-
Country of Origin:
-
China
-
Brand:
-
Holyiot
-
Brand Name:
-
Holyiot
-
Certification:
-
CE FCC RoHS
-
Function:
-
Broadcasting Advertisement
-
Interface:
-
UART ,SPI
-
Size:
-
18.0*13.5*1.8mm
-
Frequency:
-
2.4Ghz
-
Security:
-
128-bit AES CCM,ECB,AAR Arm TrustZone CryptoCell 310
Products Description
|
Features
|
|
|
|

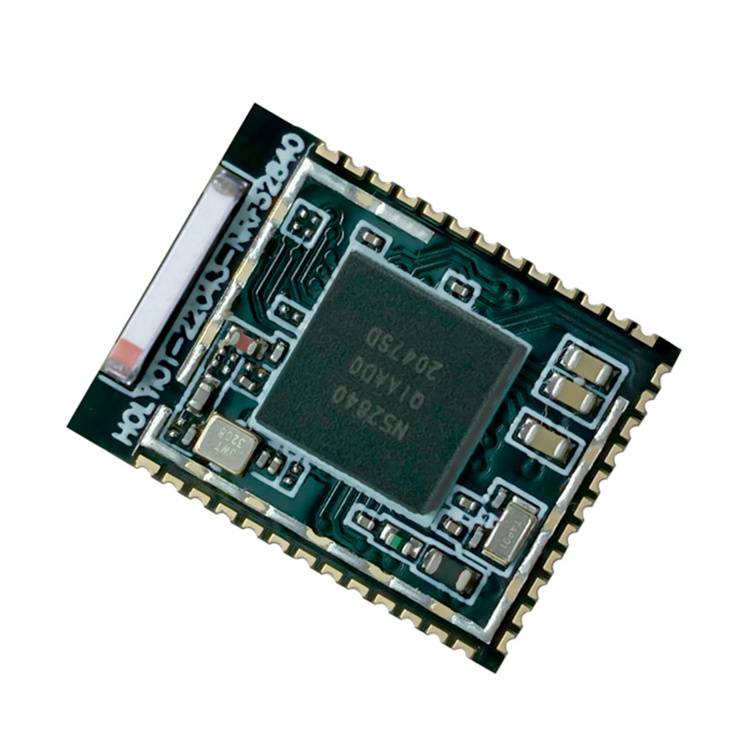

Module number
|
Holyiot-22043-nRF52840
|
|
|
Chipset
|
Nordic nRF52840
|
|
|
Certifications
|
FCC & CE& RoHS
|
|
|
Module size
|
18.0*13.5*1.8mm
|
|
|
Power supply
|
1: USB Supply(5V)/2: 1.7~3.3V"
|
|
|
TX power
|
-20dbm~+8dBm
|
|
|
ANT Type
|
Ceramic Antenna
|
|
|
Distance
|
0~150m
|
|
|
Reprogramble
|
Yes (SWD port)
|
|
|
GPIO
|
46
|
|
|
Work tempreture
|
-40~85°C
|
|
|
Protocol
|
Blue tooth/Thread/Matter/Zigbee/Blue tooth Mesh/ANT/802.15,4/2.4 GHz proprietary
|
|
|
|
Network core: Arm Cortex-M33
|
|
|
Support "nRF connect"
|
For reprogramable/Debug
|
|
|
Security
|
128-bit AES CCM,ECB,AAR Arm TrustZone CryptoCell 310
|
|
|
Peripheral
|
GPIOS/QSPI/SPI/TWI/I
2
S/PDM/QDEC/NFC-A tag/ADC/USB
|
|
|
Microprocessor
|
64 MHz 32-bit Arm Cortex-M4 with FPU
|
|
|
Memory
|
1MB Flash + 256kb RAM
|
|
|
On-air data rate
|
2 Mbps / 1 Mbps / 500 kbps / 125kbps 802.15.4: 250 kbps
|
|
