Quick Details
-
Screw Speed (rpm):
-
40 rpm
-
Place of Origin:
-
Guangdong,CHN
-
Brand Name:
-
KELI
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
27x6m
-
Power (kW):
-
160
-
Weight:
-
25000 KG
-
Raw material:
-
PLA
-
Usage:
-
PLA Disposable Plastic Food Lunch Box Machine
-
Keywords:
-
PLA foam sheet extrusion line
-
Color:
-
Customized
-
Function:
-
Plastic Extruder Machine
-
Marketing Type:
-
New Product 2020
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Final product:
-
food packaging containers
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
20:1
-
Screw diameter (mm):
-
50-100/63-130
-
Screw Speed (rpm):
-
40 rpm
-
Place of Origin:
-
Guangdong,CHN
-
Brand Name:
-
KELI
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
27x6m
-
Power (kW):
-
160
-
Weight:
-
25000 KG
-
Raw material:
-
PLA
-
Usage:
-
PLA Disposable Plastic Food Lunch Box Machine
-
Keywords:
-
PLA foam sheet extrusion line
-
Color:
-
Customized
-
Function:
-
Plastic Extruder Machine
-
Marketing Type:
-
New Product 2020
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Final product:
-
food packaging containers
Product Overview

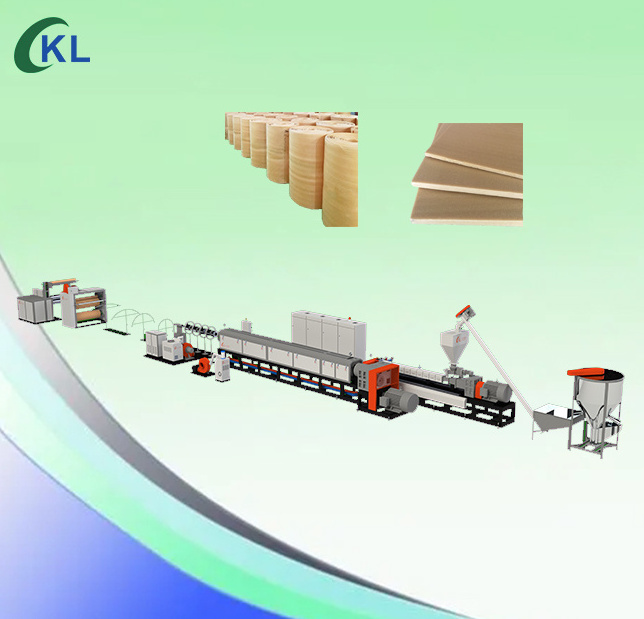

PLA Biodegradable Plastic Sheet Extrusion Line
The PLA Biodegradable Box Plate Making Machine Plastic Sheet Extrusion Line, developed by our company since 2012, is dedicated to producing high-foam polylactic acid sheets and can also be used for producing foam boxes and plates. These products are commonly used for food trays, fast food boxes, express delivery packaging, and more.
Feature:
1. PLA foaming products have excellent performance: good strength, uniform cell, smooth surface, high heat resistance (80- 100℃ );
2. The foaming ratio of PLA sheet is 5-15 times, and the secondary foaming is 1.5-1.8 times during the molding and preheating process;
3. PLA foaming products have passed various certifications such as compost degradation and non-toxic inspection in Europe and America;
4. Obtained more than ten patented technologies such as PLA screw, mold, finalization, crystallization treatment, production process technology and so on.
Polylactic acid ( PLA ) is a biodegradable polymer prepared by chemical synthesis from renewable plant resources.
Product Specification
|
Item
|
Model
|
Unit
|
PLASJ50-100
|
PLAJ63-130
|
|
1
|
Screw diameter
|
MM
|
∅50-∅100
|
∅63-∅130
|
|
2
|
Output
|
KG/H
|
150
|
250
|
|
3
|
Drawing speed
|
MM
|
15-40
|
15-40
|
|
4
|
Width of sheet
|
MM
|
600-1100
|
600-1100
|
|
5
|
Thickness of sheet
|
MM
|
1-3
|
1-4
|
|
6
|
Capacity
|
KW
|
125
|
160
|
|
7
|
Center height
|
MM
|
1100
|
1100
|
|
8
|
Compressed air
|
M
3
/min.
|
0.3
|
0.3
|
|
9
|
Water consumption
|
T/H
|
2
|
3
|
|
10
|
Occupied area
|
M
|
25*6
|
27*6
|
|
11
|
Weight of machine
|
T
|
15
|
25
|
|
12
|
Foaming times
|
Times
|
5-15
|
5-15
|
