Quick Details
-
Dimension(L*W*H):
-
depends on model
-
Weight:
-
5200 KG
-
Product name:
-
diamond Processing plant
-
Usage:
-
alluvial diamond washing plant,rock diamond processing plant
-
Feeding size:
-
0-100mm
-
Model Number:
-
as customized
-
Capacity:
-
1-200tph
-
Processed materials:
-
Rock diamond,alluvial diamond,rock diamond and alluvial diamond
-
Test&Installation:
-
Senior Professional Engineers Assigned
-
Spare parts supply:
-
Lifelong Provide
-
Factory visit:
-
Welcomed Warmly
Quick Details
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
JXSC
-
Voltage:
-
380v/220v
-
Dimension(L*W*H):
-
depends on model
-
Weight:
-
5200 KG
-
Product name:
-
diamond Processing plant
-
Usage:
-
alluvial diamond washing plant,rock diamond processing plant
-
Feeding size:
-
0-100mm
-
Model Number:
-
as customized
-
Capacity:
-
1-200tph
-
Processed materials:
-
Rock diamond,alluvial diamond,rock diamond and alluvial diamond
-
Test&Installation:
-
Senior Professional Engineers Assigned
-
Spare parts supply:
-
Lifelong Provide
-
Factory visit:
-
Welcomed Warmly
Product Description
![](https://cdn.bestsuppliers.com/seo_products_img/jxsccrusher/636d512ea32837868bcc629ee2b37a51.jpeg!/rotate/180)

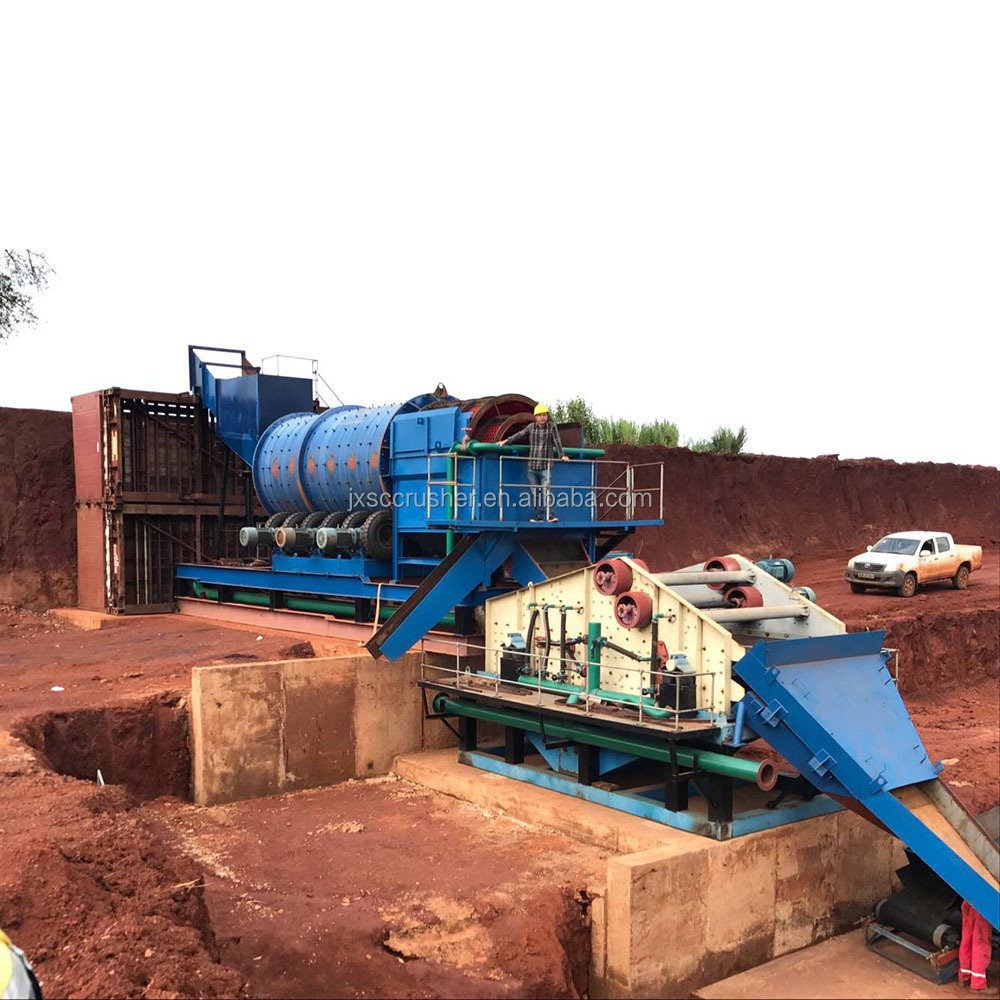

Overview
The diamond beneficiation production line is very similar to the sand gold production line. They usually consist of a washing machine plus a sorting machine. Ore washing equipment can be divided into trommel screen and rotary scrubber according to the different mud content. The separator usually uses a jig machine.
Trommel scrubber ▼
1.Trommel scrubber is a good diamond mining equipment for diamond clay mine washing,
The trommel is primarily used to remove water-soluble clays, deleterious materials and coatings providing a cleaner product. Our trommels washing screen are notable for its economy and efficiency, whether it is used in cleaning sand, gravel, or washing crushed stone and various ores. What’s more, It can process fine and coarse feed simultaneously,
The trommel is primarily used to remove water-soluble clays, deleterious materials and coatings providing a cleaner product. Our trommels washing screen are notable for its economy and efficiency, whether it is used in cleaning sand, gravel, or washing crushed stone and various ores. What’s more, It can process fine and coarse feed simultaneously,
Our machine adopts the latest cutting edge design. The outer screen is divided into two halves, And they are tightly connected by bolts. The trommel screen inside built with a robust cylinder design, those screen panels are very easy to replace, and you can choose from urethane, rubber, punch plate, or wire cloth media. The drive part is powered by a group of model K127 reducer, and each reducer is equipped with 2 renewable tires. Units integrate abrasion-resistant steel or thick rubber liners, are secured into the scrubber drum to prevent wear and drum leakage. All the seams on a solid shell scrubber are welded to withstand the continual shock loading.
The outside water supply pipe for trommel scrubber is high-quality Q235 steel material, it has a big flow capacity and withstands high pressure. The continuous lifting and dropping action combined with water helps to abrade, scrub, and break down soluble contaminants. Optional trommel screen extensions can be added to provide rough product separation, screening and dewatering capabilities.
![](https://cdn.bestsuppliers.com/seo_products_img/jxsccrusher/82a9195d17903ca692729cab10b4d3f9.jpg!/rotate/180)
Vibrating Screen ▼
2. Vibrating Screening is another important part, it is used to separate material according to its size. Material is typically fed to a single-, double- or triple-deck screen to make the required sizes. The main water pipe of the vibrating screen adopts flange joint, which can easily connect the external water pipe with the machine.
Through spray high-pressure water, it separates and washes material to obtain a good sieving effect. The material must go through or over a specified size to end up in the right pile. Unlike the crushers, Vibratory Screens cannot produce the material; they can only size material that is already reduced to the product sizes.
Under the screen slurry tank, there is a flange connector, it is convenient to connect the vibrating screen and pipe, and the tank lining with 4mm thick rubber plate, making it more wear resistance. The tank is also equipped with a discharge chute and access door, which can be opened for maintenance. The driving shaft of the vibration screen, is made of high-quality DIN C45 Steel material. Material is typically fed to a single-, double- or triple-deck screen to make the required sizes.
![](https://cdn.bestsuppliers.com/seo_products_img/jxsccrusher/e19df4d1f9fb32eea60797f062632a7f.jpg!/rotate/180)
jig concentration machine ▼
3. jig concentration machine is energy-saving gravity separation equipment, which is developed according to the law of layer theory of jigger bed stratification. The performance of saw-tooth Jig has reached the domestic advanced level, the jig separator is one of the ideal devices in energy-saving gravity separation.
● High capacity, high concentration ratio and high recovery ratio.
● High capacity, high concentration ratio and high recovery ratio.
● Fabricated with highest quality material
● Easy to install, operate and maintain
● Water conservation ,Saving water 30-40% than ordinary jig.
● The pulsation speed very easy adjusted by regulator
●Suitable to separate out big and small size heavy minerals.
![](https://cdn.bestsuppliers.com/seo_products_img/jxsccrusher/d1d709fdb0993bcfb2bc1fe4e6ce80a1.jpg!/rotate/180)
Small diamond mobile wash plant▼
It is an Mobile Integrated machine with small-medium capacity 5-20tons per hour, which is quite suitable for
Gold/Diamond/Gemstone/Tin/Tungsten/Coltan separation & recovery.
It is an Mobile Integrated machine with small-medium capacity 5-20tons per hour, which is quite suitable for
Gold/Diamond/Gemstone/Tin/Tungsten/Coltan separation & recovery.
Successful Cases
200TPH Diamond Processing Plant in Angola
Minerals: Clay diamond mine
Capacity:
200 tons per hour
Diamond Mining Equipment:
First use vibration feeder to feeding material to trommel scrubber, After trommel scrubber for washing clean, and separator big size out, then to vibration screen. Vibration screen also for separator different size.
Diamond Mining and Processing:
The capacity is for 200 tons per hour, First use backhoe get material to hopper, under hopper have a vibration feeder, vibration feeder can separator out +70mm size, then 0-70mm size to trommel scrubber, trommel scrubber is had two part, one part scrubber is for washing, one part screen is for separator different size. After trommel scrubber then to vibration screen, separator size again then can use jig machine get diamond.
This 200 tons per hours diamond separator line is have working for one year, and it has got good effect, for now, this customer want open another 200 tons per hours line, our engineer has to go mine site for inspecting, first can check the existing diamond processing plant, most things are good, but also some details can make more perfect, Our factory is a progress factory, we need to make the diamond process machine more and more perfect, besides checking the existing alluvial diamond mining equipment, also need to check the new diamond mining equipment, base the one new ore site, to choose the best diamond processing machine.
100tph complete alluvial diamond wash plant
This setup is a 100tph complete alluvial diamond wash plant, the raw material is 0-250mm alluvial diamond ore with sticky clay, the diamond size is around 5-20mm. It is configured with vibrating feeder DN3896 with gap 75mm grizzly bar, one set swing feeder under the bin, JXSC-1500 trommel scrubber, one set single layer high-frequency vibration screen JXSC-1860, one set three layers high-frequency vibration screen JXSC-1860,3 sets jig separator, 6 sets belt conveyors.
(1) The truck unloads the 0-250mm diamond ore into the vibrating feeder; the +75mm scrap will be separated by the vibrating feeder grizzly bar and transferred by 1st conveyor to the first stockpile.
(2) The vibrating feeder feeds the -75mm ores evenly to the trommel scrubber to wash and separate by 5mm,20mm mesh. The 0-5mm material will be sent to the tailing pool by a trough. 5-20mm material will be sent to the first vibrating screen for further cleaning and dewatering, and 20-75mm material will be sent to the second stockpile by 2nd conveyor.
(3) The 5-20mm washed materials after washing and dewatering will be transferred to the storage bin equipped with one small feeder under the bin.
(4) The materials 5-20mm will be sent to the next high-frequency vibration screen. It will be separated into 3 size ranges: 0-10mm, 10-15mm 15-20mm. Each size will be equipped with one jig concentrator to concentrate.
200TPH Diamond Washing Plant in Congo
Other Flowchart
Not only diamond ore, but our factory also can make gold ore machine line, chrome ore machine line, tin ore machine line, iron ore machine line, tantalum-niobium ores machine line, tungsten mining plant, Coltan mining plant, and so on, if you need more details pls contact us.
Diamond mining equipment for sale South Africa, JXSC has many successful cases in Africa, diamond mining in Africa
always has a good trend, we provide alluvial diamond mining equipment since 1985,have rich experience of DMS plant( dense media separation), diamond trommel. besides, we can do a diamond processing flowsheet design, mobile diamond washing plant, contact us to get the diamond mining process pdf and diamond processing flow chart.
always has a good trend, we provide alluvial diamond mining equipment since 1985,have rich experience of DMS plant( dense media separation), diamond trommel. besides, we can do a diamond processing flowsheet design, mobile diamond washing plant, contact us to get the diamond mining process pdf and diamond processing flow chart.
Packaging & Delivery
1.Small parts packed in the wooden cases.
|
2.Big parts packed by plastic membrane.
|
3.The whole big machine is loaded in the container.
|
Company Introduction
JXSC mine machinery factory located in Jiangxi province. we are a professional company providing complete set processing equipments for Gold ore /Tin ore /Tungsten ore /Iron ore / Diamond/ Coltan ore / Silica sand / Zircon sand/ Black sand/Chrome ore, ect.
1.+30years history factory at mining machinery
2.Provide engineer team after sale service
3.Provide complete set mineral processing plant
4.Provide sample testing service in factory lab for free
5.Provide professional mining solution consulting
1. Inquiry and consulting support.
2. Ore sample testing support.
3. View our Factory.
4. Design Flowchart.
1. Training how to instal the machine, training how to use the machine.
2. 1 year warranty .
3. Engineers available to service machinery overseas.
FAQ
1.How is the quality of your products?(mining equipment/machine)
Answer: Our products are manufactured strictly according to national and international standard, and we will do a test on every machine before delivery.
1. Which machine do you need? like gold washing machine, spiral chute, vibrating screen, Jig separator, Shaking table, etc.
2. What is your raw ore that you plan to process? like gold ore, diamond ore, tantalite or silica sand, etc.
3. What is the capacity you need? Like 10 tones per hour.
4. What is the feeding size to the machine? and what is the discharging-material size that you require?
Sincerely welcome to send your inquiry,you can get best quotation and professional service.
Answer: Our products are manufactured strictly according to national and international standard, and we will do a test on every machine before delivery.
2.Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description or promise we made before you place order, we promise 100% refund.
3.How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
4.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before factory delivery, which is international trade practice; Finished product pictures will be provided to customers before delivery.
If you are interested in our products, please don't hesitate to contact us. Could you tell me the following questions, so that I can give you a complete solution, including best Exw-works Price Quotation!
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description or promise we made before you place order, we promise 100% refund.
3.How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
4.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before factory delivery, which is international trade practice; Finished product pictures will be provided to customers before delivery.
If you are interested in our products, please don't hesitate to contact us. Could you tell me the following questions, so that I can give you a complete solution, including best Exw-works Price Quotation!
1. Which machine do you need? like gold washing machine, spiral chute, vibrating screen, Jig separator, Shaking table, etc.
2. What is your raw ore that you plan to process? like gold ore, diamond ore, tantalite or silica sand, etc.
3. What is the capacity you need? Like 10 tones per hour.
4. What is the feeding size to the machine? and what is the discharging-material size that you require?
Sincerely welcome to send your inquiry,you can get best quotation and professional service.
