Quick Details
-
Application:
-
CONSTRUTION
-
Rated Lifting Moment:
-
960
-
Span:
-
10.9-50m
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
H&L
-
Marketing Type:
-
New Product
-
Weight (KG):
-
25000 kg
-
Product name:
-
Mobile Crane
-
Crane type:
-
Truck Crane Mobile Crane Hydraulic Crane
-
Type:
-
Telescopic Truck Mounted Crane
-
Hydraulic parts:
-
Telescopic Boom Mobile Crane Made
-
Brand:
-
ZOOMLION
-
Name:
-
Lifting Truck Car Crane
-
Keyword:
-
Tractor Mounted Crane
-
Boom type:
-
Hydraulic Telescopic Boom
-
Key words:
-
Mobile Truck Crane 120Ton
-
High quality:
-
Mobile Crane Lifting Capacity
Quick Details
-
Rated Loading Capacity:
-
25Ton
-
Max. Lifting Height:
-
50M
-
Engine Brand:
-
FPT
-
Application:
-
CONSTRUTION
-
Rated Lifting Moment:
-
960
-
Span:
-
10.9-50m
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
H&L
-
Marketing Type:
-
New Product
-
Weight (KG):
-
25000 kg
-
Product name:
-
Mobile Crane
-
Crane type:
-
Truck Crane Mobile Crane Hydraulic Crane
-
Type:
-
Telescopic Truck Mounted Crane
-
Hydraulic parts:
-
Telescopic Boom Mobile Crane Made
-
Brand:
-
ZOOMLION
-
Name:
-
Lifting Truck Car Crane
-
Keyword:
-
Tractor Mounted Crane
-
Boom type:
-
Hydraulic Telescopic Boom
-
Key words:
-
Mobile Truck Crane 120Ton
-
High quality:
-
Mobile Crane Lifting Capacity
Product Description

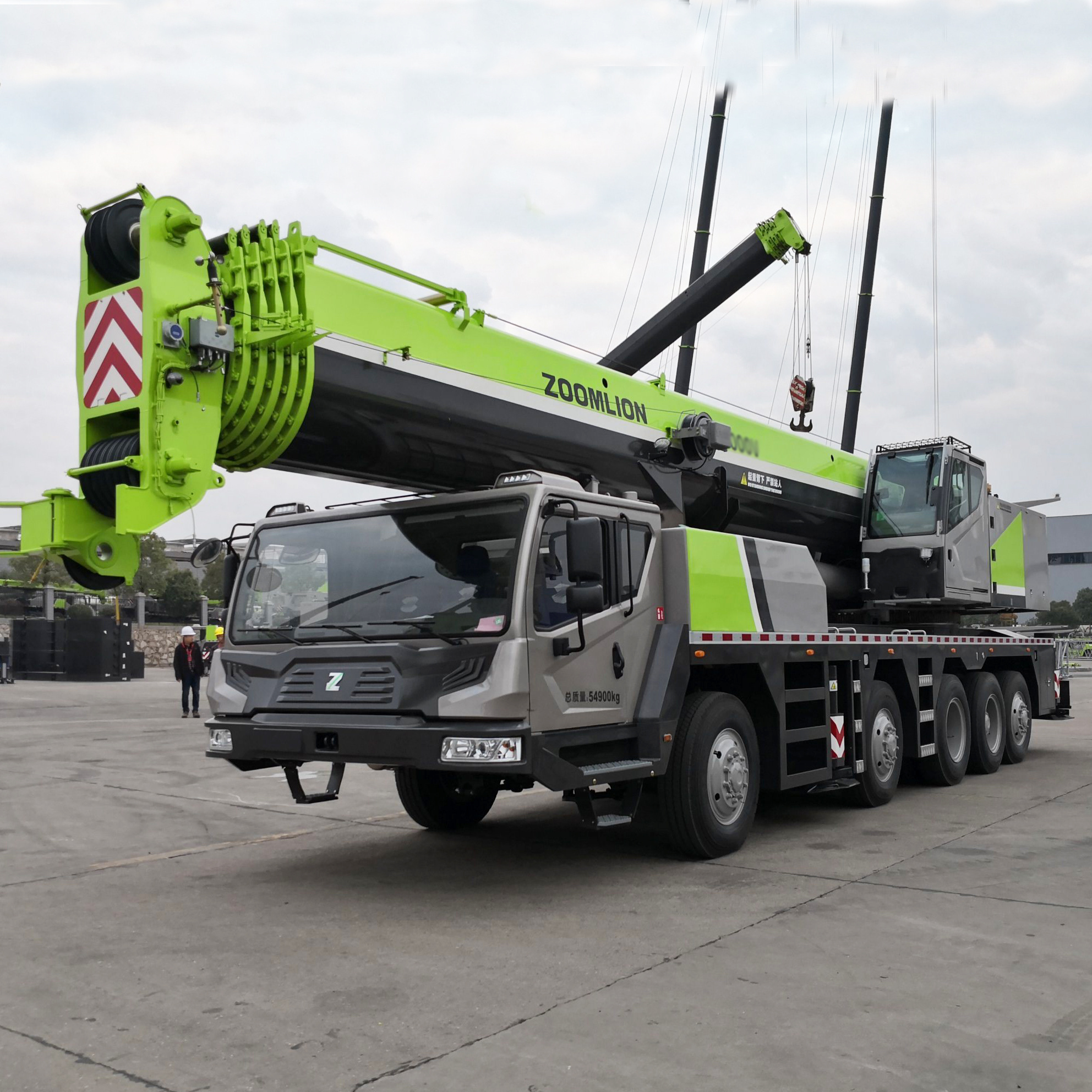

Truck Crane ZTC250V431
Product Highlights
1. Strongest lifting capacity in the industry
4-section U-shaped 35m long main boom with superior comprehensive lifting capacity, max.lifting moment is 960kN•m，max. lifting moment ( fully extended) is 600kN•m, the outrigger span is large and the hoisting ability is strong.
2. Excellent quality and reasonable price
Product Highlights
1. Strongest lifting capacity in the industry
4-section U-shaped 35m long main boom with superior comprehensive lifting capacity, max.lifting moment is 960kN•m，max. lifting moment ( fully extended) is 600kN•m, the outrigger span is large and the hoisting ability is strong.
2. Excellent quality and reasonable price
Dead weight 27.8 tons in driving condition.
3. Best driving and off-road capability in the industry
WEICHAI WP7 engine + FAST manual transmission is adopted. Large engine displacement, large power reserve
3. Best driving and off-road capability in the industry
WEICHAI WP7 engine + FAST manual transmission is adopted. Large engine displacement, large power reserve
|
Item
|
|
Unit
|
Value
|
Remarks
|
|
|
Working performance
|
Max. rated lifting capacity
|
kg
|
25000
|
|
|
|
|
Max. load moment of basic boom
|
kN.m
|
960
|
|
|
|
|
Max. load moment of main boom(fully extended)
|
kN.m
|
600
|
|
|
|
|
Max. load moment of basic boom
|
m
|
11.4
|
|
|
|
|
Max. lifting height of main boom
|
m
|
35.4
|
These parameters do not include deflection of main boom and jib
|
|
|
|
Max. lifting height of jib
|
m
|
43
|
|
|
|
Working speeds
|
Max. hoist rope speed(Main winch)
|
m/min
|
135
|
At the 4th layer
|
|
|
|
Max. hoist rope speed(Auxiliary winch)
|
m/min
|
135
|
At the 2nd layer
|
|
|
|
Boom demrricking up time
|
s
|
25
|
|
|
|
|
Boom demrricking up time
|
s
|
25
|
|
|
|
|
Slewing speed
|
r/min
|
0 -2.7
|
|
|
|
Driving parameters
|
Max. driving speed
|
km/h
|
90
|
|
|
|
|
Max. gradeability
|
%
|
42
|
|
|
|
|
Turning diameter
|
m
|
≤20
|
|
|
|
|
Min. ground clearance
|
mm
|
250
|
|
|
|
|
Oil consumption per hundred kilometers
|
L
|
28
|
|
|
|
Mass
|
Deadweight in driving condition
|
kg
|
27800
|
|
|
|
|
Complete vehicle kerb mass
|
kg
|
27670
|
|
|
|
|
Front axle load
|
kg
|
6500
|
|
|
|
|
Rear axle load
|
kg
|
21300
|
|
|
|
Dimensions
|
Overall dimensions(L×W×H)
|
mm
|
13100×2500×3450
|
|
|
|
|
Outrigger spread(L)
|
m
|
5.4
|
|
|
|
|
Outrigger spread(W)
|
m
|
Fully extended:6.2,
|
|
|
|
|
|
|
Intermediately extended:4.25
|
|
|
|
|
Tail slewing radius
|
mm
|
3265
|
|
|
|
|
Main boom length
|
m
|
10.7 - 35.0
|
|
|
|
|
Boom angle
|
°
|
-1 - 80
|
|
|
|
|
jib length
|
m
|
8
|
|
|
|
|
Offset
|
°
|
0、15、30
|
|
|
