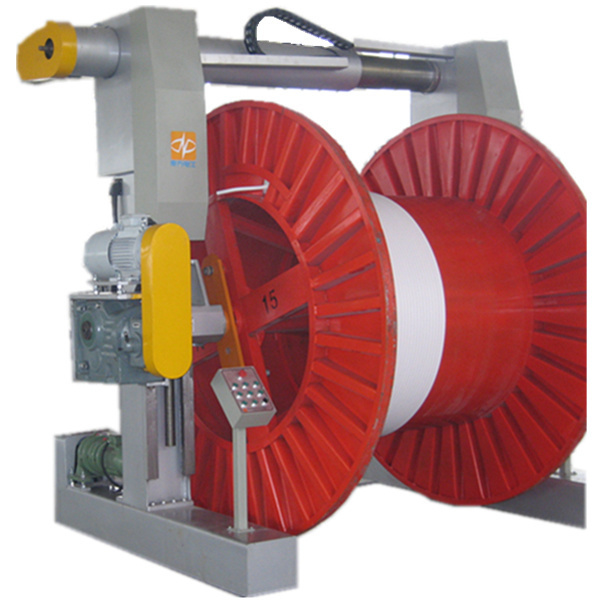

Application
Mainly act as P/O & T/U on CCT/VCV & Rubber CCV production line.
B. Frame is rectangular pipe welded into A-shape structure. It is stable with strong bearing capacity, neat and beautiful.
C. Hoisting guide-way is high-strength rolling guide pair (linear guide pair)
D. Take-up gearbox adopts hard tooth face gearbox with large transmission torque and low noise.
E. Take-up main motor
- Take up main motor adopts DC motor, controller is European series products
- Take up main motor adopts frequency conversion, controller for Siemens or Danfoss products
F. Pay-off motor adopts frequency control motor, controller is Siemens or Danfoss product, winding traces take-up speed speed automatically. Widning pitch and take-up tension can be connected with various hosts.
Main technical parameter
| Model | ALSP, ALF1250/2500 | ALSP,ALP1600/3150 | ALSP, ALF2000/4200 | ALSP,ALF3150/5000 |
| Applicable wire-coil specification | PN1250-PN2500 | PN1600-PN3150 | PN2000-PN4200 | PN3150-PN5000 |
| Applicable cable outer diameter (mm) | ≤120 | ≤160 | ≤160 | ≤180 |
| Applicable wire-coil diameter (mm) | 1250-2500 | 1600-3150 | 2000-4200 | 3150-5000 |
| Applicable wire-coil width (mm) | 950-1900 | 1180-2300 | 1500-2500 | 2300-2800 |
| Take-up speed (mm/min) | ≤80 | ≤50 | ≤35 | ≤30 |
| Winding precision (%) | 1-2 | 1-2 | 1-2 | 1-2 |
| Loading capacity (T) | 15 | 20 | 30 | 55 |
Machine package
2.Frequency converter: Yaskawa
3.Bearing: NSK (Japan brand)
4.Electrical component: Siemens or Omron
5.PLC controller: Siemens
- Inquiry and consulting support
- Customized design support
- View our factory
After-sales service
- Training how to install and how to use the machine
- Engineers available to service machinery overseas
Project show
Our company has a technical administration team who engages wire and cable equipment industrial more than twenty years, as well as experienced engineer and skilled workers, our honest business reputation and good sales achievement, win the trust from our domestic and overseas customers, the products are exported to United States, France, Spain, Portugal, New Zealand, Brazil, Mexico, Chile, South Africa, Zambia, Egypt, South Korea, Singapore, Indonesia, Thailand, Iran etc.
- Cable extrusion machine
A.Description
The unit comfortable soft PVC, such as poly(PVC by hot press method to be extruded insulation wire core)
B.Technical parameter
| Type & Size | Screw Dia. (mm) | L/D ratio | Screw speed (rpm) | Main motor (kw) | Barrel heating power (kw) | Temp. contr. zones (body/cross head) | Max. output capacity (PVC) (kg/h) |
| SJ30X25 | 20 | 25:1 | 5-150 | 11 | 3.6 | 3/2 | 20 |
| SJ45X25 | 45 | 25:1 | 10-120 | 15 | 9 | 3/2 | 50 |
| SJ65X25 | 65 | 25:1 | 10-100 | 30 | 16 | 4/4 | 120 |
| SJ90X25 | 90 | 25:1 | 10-100 | 90 | 30 | 4/4 | 280 |
| SJ120X25 | 120 | 25:1 | 7-68 | 132 | 54 | 6/4 | 580 |
| SJ150X25 | 150 | 25:1 | 6-60 | 185 | 88 | 6/4 | 880 |
| SJ200X25 | 200 | 25:1 | 4-40 | 250 | 140 | 7/4 | 1100 |
Mainly used for various cable production lines for single machine or front and rear double traction.
