Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CCDCAM
-
Model Number:
-
NWK7134
-
Camera type:
-
Bullet Camera
-
Image Sensor:
-
1/3 inch 1.3 Megapixel CMOS sensor
-
NVR:
-
Wireless AP NVR, set up without WIFI router
-
Camera resolution:
-
960P
Quick Details
-
Network:
-
ONVIF
-
Customized support:
-
Customized logo
-
Special Features:
-
PAN-TILT
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CCDCAM
-
Model Number:
-
NWK7134
-
Camera type:
-
Bullet Camera
-
Image Sensor:
-
1/3 inch 1.3 Megapixel CMOS sensor
-
NVR:
-
Wireless AP NVR, set up without WIFI router
-
Camera resolution:
-
960P

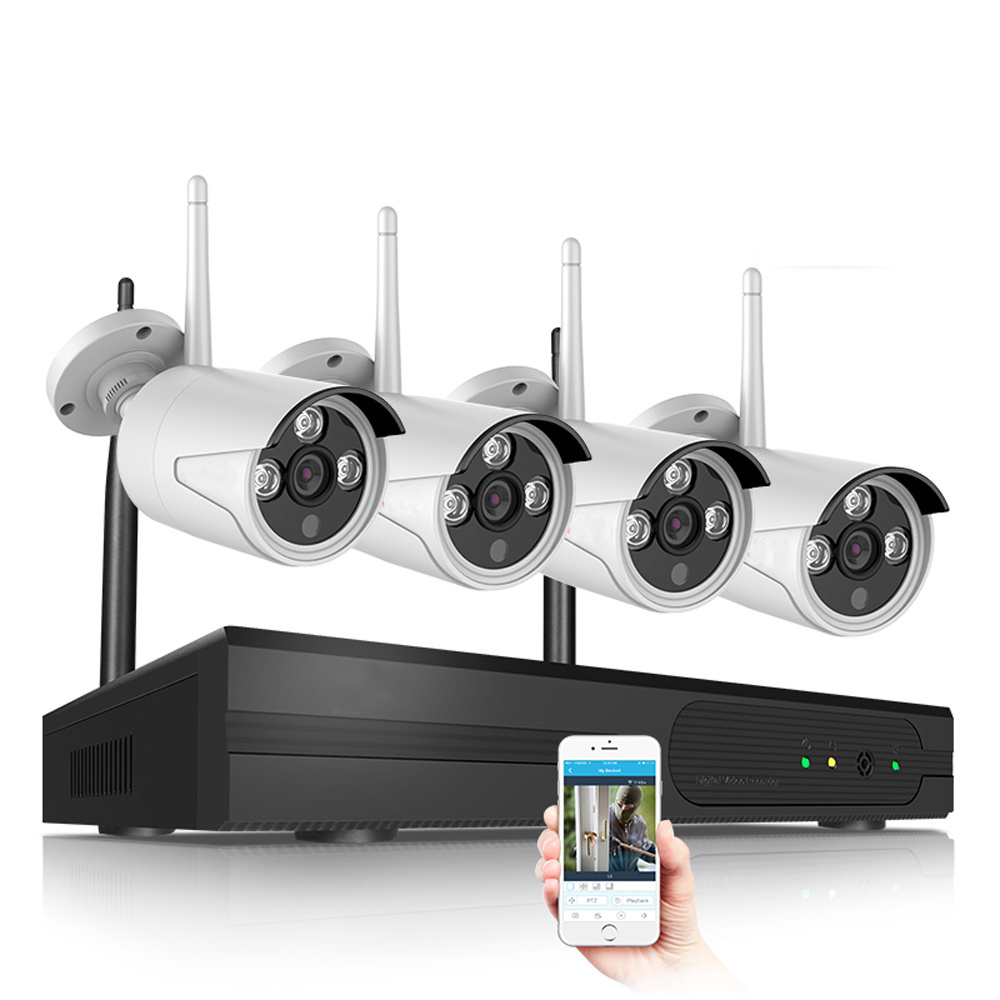

4CH Wireless NVR Kit 960P Wifi IP Camera CCTV System
Wireless Transmitter & Receiver Kit Complete Camera Set
Cameras features:
4*960P WIFI Camera
1/3 inch 1.3 Megapixel CMOS sensor
High resolution : 1280*960
Wireless AP NVR Features:
Support embedded Linux OS
Wireless AP NVR, set up without WIFI router
Private protocol, install without setting
Support 4TB HDD.
| WIFI NVR | ||
|
Support embedded Linux OS
Built-in Wireless AP,install without WIFI router 2.4G All wireless Transfer video avoid from wiring problems Support HDMI,VGA Sync 1080P video output Support HD preview, all channels support Main stream Support Zoom function of preview Support event,playback,backup recording ,support picture playback and search Support One-key setup and recording |
||
| System | ||
| Main processor | High performance embedded microprocessor | |
| Operating system | Embedded LINUX OS | |
| Video spec. | ||
| Video compression format | H.264 | |
| Display Image Resolution | 720P/960P 1~30FPS | |
| Playback Image Resolution | 720P/960P 1~30FPS | |
| Motion Detection | can setup 396(22×18)pcs motion detection area | |
| each channeland multi-level sensitivity(0-100 levels adjustable) | ||
| Recording Mode | ||
| Recording Mode | Manual Recording,Time Recording,Motion Recording | |
| Recording storage | HDD,Network | |
| Frame rate | 1~30 fps | |
| Playback | Max support 4ch 960P synchronously playback | |
| Backup Mode | Support HDD,USB Flash Disk store & backup | |
| Video | ||
| Video Input | 4CH 960P IPC | |
| Video output | 1ch HDMI, 1ch VGA | |
| Other | ||
| Network |
2.4Ghz Wireless AP,10/100Mbps Ethernet port; WIFI Barrier free transport 100 Meters, wall transfers 30 Meters |
|
| USB | 2 USB 2.0 ports | |
| HDD | support 1 SATA HDD (MAX 4TB) | |
| Power | DC12V 3A | |
| Power consumption | 16W-18W(not include HDD) | |
| 4*IP WIFI cameras | ||
| Camera Type | 960P IP Camera | |
| Camera | Image Sensor | 1/3 inch 1.3 Megapixel CMOS sensor |
| DSP | HI3518 DSP 32 dual-core , pure hardware compression | |
| IR-LED | 36 PCS IR LEDS | |
| Illuminate Distance | 30m IR distance | |
| Day/Night | IR-CUT filter | |
| Min.Illumination | Color 0.6Lux/F1.2,B/W 0.08 Lux/F1.2 | |
| Electronic Shutter | 1/50(1/60)s-1/100,000s | |
| Lens | 3.6/6mm Fixed Lens | |
| Digital Zoom | 10X Digital Zoom | |
| Video | Compression standard | H.264 |
| Compression technology | Dual-stream compression technology | |
| Video frames | Real-time PAL 25fps,NTSC 30fps 1-30fpsAdjustable | |
| output bit rate | 32Kbps~5000Kbps Adjustable | |
| Image | Resolution | Main Stream:1280×960(video resolution); |
| Sub Stream:640×360, 480×270,320×180; | ||
| Network | protocol | DHCP,TCP/IP,HTTP,UDP,DNS |
| Alarm | Support Motion Detection | |
| Privacy Mask | Support | |
| Vedio port | Video output | 1CH Video output,RJ45/WIFI,PAL/NTSC Optional |
| Network interface | RJ45 10M/100M Ethernet port /WIFI 2.4GHz | |
| Other | Power supply | DC 12V |
| Waterproof Criterion | IP66 | |
| KITS | ||
| Pcaking list |
Wireless AP NVR*1pcs; Power for NVR*1; 1.3MP WIFI camera*4pcs; Power for camera*4pcs; mouse*1pcs |
|
| Work environment | -10℃~60℃90%RH | |
| Package Size | 44*22*31cm | |
| Net Weight |
6kg
|
|
