Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Laiyuan
-
Dimension(L*W*H):
-
customized
-
Weight:
-
0.15 KG
-
Working Temperature Range:
-
10 - 850 ℃
-
Core Components:
-
Heating element
-
Product name:
-

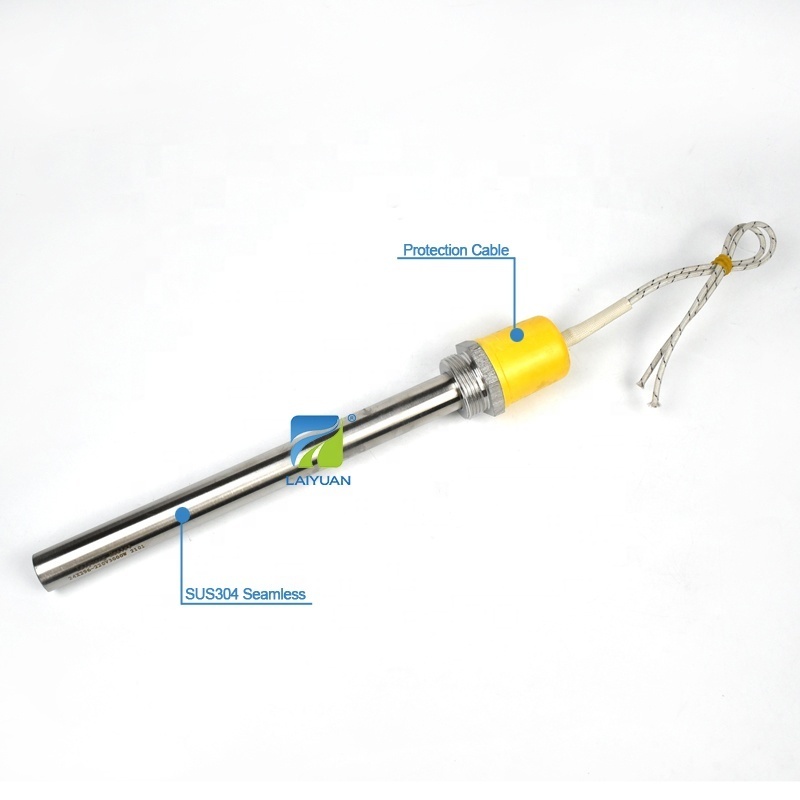

Electric Cartridge Heater
-
Surface Material:
-
SS304,SS316,SS316L Incoloy 800
-
Product Structure:
-
Mgo Tube, Mgo Power, Resistance, SS tube
-
Power tolerance:
-
5 % - 10 %
-
Packing Details:
-
Single Plastic Bag , and Carton
-
OEM&ODM:
-
yes
-
Working temperature:
-
750Celsius max
-
Tolerance of length:
-
+/-1.5%
-
Tolerance of diameter:
-
-0.01 a -0.06 m/m
-
Tolerance of cut of connexion:
-
+/-15 mlm
Quick Details
-
Type:
-
Immersion Heater
-
Power Source:
-
Electric
-
Voltage:
-
12-600v
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Laiyuan
-
Dimension(L*W*H):
-
customized
-
Weight:
-
0.15 KG
-
Working Temperature Range:
-
10 - 850 ℃
-
Core Components:
-
Heating element
-
Product name:
-
Electric Cartridge Heater
-
Surface Material:
-
SS304,SS316,SS316L Incoloy 800
-
Product Structure:
-
Mgo Tube, Mgo Power, Resistance, SS tube
-
Power tolerance:
-
5 % - 10 %
-
Packing Details:
-
Single Plastic Bag , and Carton
-
OEM&ODM:
-
yes
-
Working temperature:
-
750Celsius max
-
Tolerance of length:
-
+/-1.5%
-
Tolerance of diameter:
-
-0.01 a -0.06 m/m
-
Tolerance of cut of connexion:
-
+/-15 mlm
All Cartridge Heaters
Products Description
All products are using SUS304 or SUS321 seamless stainless steel pipe, MOG holder and MGO head with high temperature 1800C,99% MGO rod,overseas high temperature MGO powder, Cr20Ni80 resistance wire ,Ni-Mn lead wire and Silicone Rubber wire .It suits for mold heating . Large-scele production with competitive price,Good-look appearance of the product and excellent quality .
|
Wattage Tolerance
|
|
+5%,-10%
|
|
|
|||
|
Resistance Tolerance
|
|
+10%,-5%
|
|
|
|||
|
Insulation Resistance(cold)
|
|
≥ 500 MΩ
|
|
|
|||
|
Maximum leakage current(cold)
|
|
≤0.5 mA
|
|
|
|||
|
Max Sheath Temp/Maximum Operating Temperature(℃)
|
|
1400℉(760℃)
|
|
|
|||
|
Resistance Heating Wire
|
|
NiCr 80/20 wire/High grade nickel chromium resistance wire
|
|
|
|||
|
Packaging
|
|
Plastic bag,Carton box,Wooden box
|
|
|
|||
|
Dia*L (mm)
|
Power (low density)
|
Power (high density)
|
Dia*L (mm)
|
Power (low density)
|
Power (high density)
|
|
6-60
|
60W
|
120W
|
14-100
|
200W
|
450W
|
|
6-80
|
100w
|
200W
|
14-120
|
250W
|
520W
|
|
6-200
|
190W
|
350W
|
14-150
|
330W
|
650W
|
|
8-50
|
65W
|
120W
|
14-200
|
400W
|
880W
|
|
8-100
|
125W
|
250W
|
14-250
|
550W
|
1000W
|
|
8-150
|
200W
|
350W
|
14-300
|
650W
|
1300W
|
|
8-200
|
250W
|
500W
|
16-100
|
250W
|
500W
|
|
10-60
|
100W
|
200W
|
16-120
|
300W
|
600W
|
|
10-80
|
125W
|
250W
|
16-150
|
350W
|
750W
|
|
10-120
|
200W
|
375W
|
16-200
|
500W
|
1000W
|
|
10-150
|
235W
|
475W
|
16-250
|
600W
|
1250W
|
|
10-200
|
300W
|
600W
|
16-300
|
750W
|
1500W
|
|
10-300
|
470W
|
900W
|
18-100
|
250W
|
550W
|
|
12-60
|
115W
|
225W
|
18-150
|
400W
|
850W
|
|
12-100
|
200W
|
375W
|
18-200
|
550W
|
1150W
|
|
12-120
|
225W
|
450W
|
18-300
|
850W
|
1500W
|
|
12-150
|
280W
|
550W
|
20-100
|
300W
|
650W
|
|
12-200
|
375W
|
750W
|
20-150
|
450W
|
950W
|
|
12-300
|
550W
|
1000W
|
20-300
|
950W
|
1800W
|
|
Diameter
|
3.0mm to 85mm
|
|
Diameter tolerance
|
0mm~0.08mm
|
|
Length tolerance
|
±1mm
|
|
Cold zone
|
5~15mm from lead wire; 3~10mm at the bottom
|
|
Max surface loading
|
40w/cm^2
|
|
Voltage
|
1.5V~480V
|
|
Insulation resistance
|
500ohm
|
|
Temperature tolerance
|
±3℃
|
|
Shape
|
Straight/ L/ Square/ Screw/Split type/ Special-shaped
|
|
Material of lead wire
|
Silicone rubber; PTFE; High Temperature Fiberglass; Metal hose protection; Metal braided
|
|
Thermocouple wire
|
K type,J type,E type ,PT100,NTC
|
|
Method of lead wire
|
Internal wire(Swaged) and External wire (Cripmed)
|
Features
1.Fast heating and long service life
2.Power and voltage can be customized according to requirements.
3.Used in hot forming machinery，meachanical equipment，etc.
4.According to different use requirements，choose the grade of heating wiremagnesium rod and pipe..
Install
The actual diameter of the conventional heating tube is 0.1-0.2mm smaller than the inner diameter of the die hole. Proper size can make the mold more rapid and uniform temperature rise, more energy-saving, more convenient installation and maintenance, longer service life. Too much space in the mould will make the heating temperature of the electric heating tube too high, so it can't completely contact the heat transfer, only rely on the radiation heat transfer, resulting in the damage of the heat breakdown, the heat conduction effect is not obvious, and serious waste of electric energy.
Order Notification
1. Confirm whether the heating pipe is heated by mould or liquid?
2. Pipe diameter: the default diameter is negative tolerance, for example, the diameter of 10 mm is 9.8-10 mm.
3. Pipe length: ± 2mm
4. Voltage: 220V (other 12v-480v)
5. Power: + 5% to - 10%
6. Lead length: default length: 300 mm (customized)
Applications
Injection Molding Manifolds
Food Production
Immersion Tank Heating
Plastic Welding
Injection Molding
Fluid heating, hot melt adhesives and etc.
Cartridge heater is widely used in plate vulcanizing machine, heat transfer printing machine, printing machine, hot scissors, bronzing machine, textile knife mold, submersible heating pipe, heating pipe of radiator, fireplace biological particle ignition rod, water heating blanket, fast sealing machine, footwear industry, semiconductor eutectic welding, crusher, die casting input channel, injection heating without sprue, etc.
