Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Fortune Laser
-
Wavelength:
-
1070
-
Focal Spot Diameter:
-
0.5mm
-
Dimensions:
-
100*45*68cm
-
Weight (KG):
-
165 KG
-
Marketing Type:
-
Hot Product 2023
-
Core Components:
-
laser source
-
Product name:
-
Mini Handheld Laser Welding Machine
-
Application:
-
Metal Stainless Steel Laser Welder
-
Keywords:
-
Laser Fiber Welding Machine Handheld
-
Laser power:
-
1000/1500/2000W/3000W
-
Laser source:
-
MAX/Raycus Fiber Laser
-
Function:
-
Handheld Laser Welding
-
After-sales Service:
-
Online support
-
Welding depth:
-
5mm
-
Cooling method:
-
Water Cooliing
-
Application material:
-
Metal Stainless Steel Aluminum
Quick Details
-
Max. Output Power:
-
3000W
-
Usage:
-
Metal welding
-
Laser Source Brand:
-
MAX
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Fortune Laser
-
Wavelength:
-
1070
-
Focal Spot Diameter:
-
0.5mm
-
Dimensions:
-
100*45*68cm
-
Weight (KG):
-
165 KG
-
Marketing Type:
-
Hot Product 2023
-
Core Components:
-
laser source
-
Product name:
-
Mini Handheld Laser Welding Machine
-
Application:
-
Metal Stainless Steel Laser Welder
-
Keywords:
-
Laser Fiber Welding Machine Handheld
-
Laser power:
-
1000/1500/2000W/3000W
-
Laser source:
-
MAX/Raycus Fiber Laser
-
Function:
-
Handheld Laser Welding
-
After-sales Service:
-
Online support
-
Welding depth:
-
5mm
-
Cooling method:
-
Water Cooliing
-
Application material:
-
Metal Stainless Steel Aluminum
Fortune Laser provides laser cutting/welding/cleaning machines with different features and prices range to meet various applications and budgets. Please feel free to contact us for more details!
Product Description

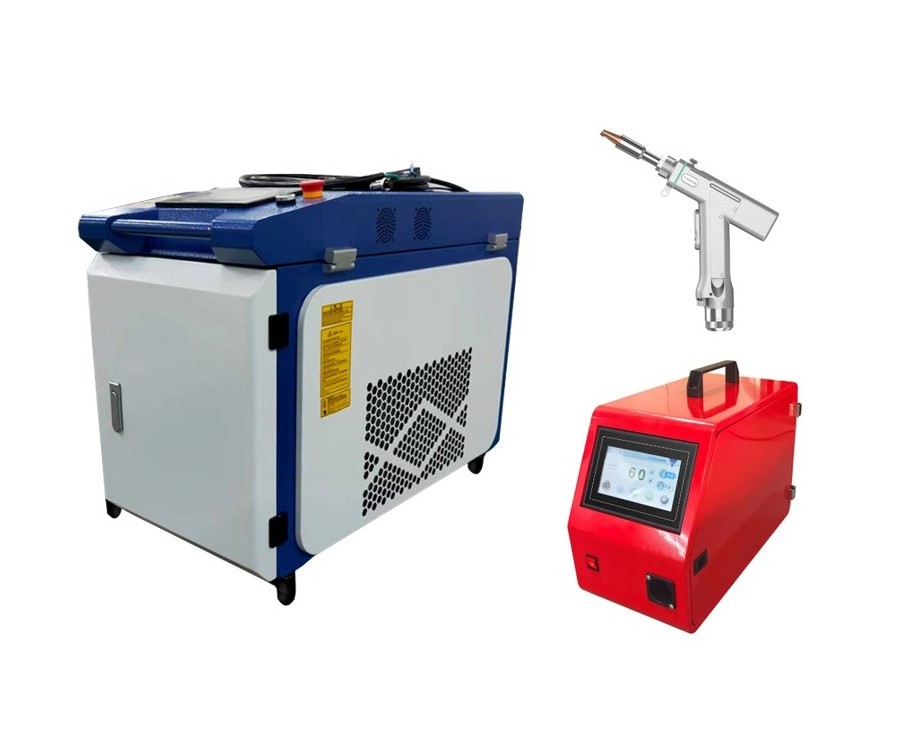

Fortune Laser handheld laser welding machine uses a handheld welding gun to replace the previously fixed optical path, subverting the previous working mode of the laser welding machine. This mode of operation is not only convenient for welding molds, advertising characters, kitchen utensils and other products, but also for outdoor laser welding. This operating mode enables the work piece to be welded at any position and at any angle.
Specification
|
Model No
|
FL-HW1000M
|
FL-HW1500M
|
FL-HW2000M
|
||
|
Operating Mode
|
Continuous Modulation
|
|
|
||
|
Cooling Mode
|
Water Cooling
|
|
|
||
|
Power Requirements
|
220V±5V 50Hz/60Hz
|
|
|
||
|
Machine Power
|
3.5KW
|
4.5KW
|
5.5KW
|
||
|
Operating Cooling Temperature Range
|
20℃-40℃
|
|
|
||
|
Working Environment Humidity Range
|
<70 No Condensation
|
|
|
||
|
Welding Thickness
|
≤3mm
|
≤4mm
|
≤5mm
|
||
|
Gross Weight(Including Package)
|
160kg
|
|
|
||
|
Fiber length
|
10m
|
|
|
||
|
Machine Size
|
100×45×68CM
|
|
|
||
