Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DH
-
Model Number:
-
IPC-HDW2831T-ZS
-
Max. Resolution:
-
3840 (H) X 2160 (V)
-
Image Sensor:
-
1/2.7" CMOS
-
Illumination Distance:
-
40 m (98.43 ft)
-
Focal Length:
-
2.7 mm-13.5 mm
-
Iris Type:
-
Vari-focal
-
BLC:
-
Yes
-
HLC:
-
Yes
-
WDR:
-
120 dB
-
Power Supply:
-
2V DC/PoE
-
Network:
-
Ip
Quick Details
-
Special Features:
-
NIGHT VISION, Motion Detection
-
Function:
-
Waterproof / Weatherproof, Two-way Audio, Built-in Mic
-
Customized support:
-
Online technical support
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DH
-
Model Number:
-
IPC-HDW2831T-ZS
-
Max. Resolution:
-
3840 (H) X 2160 (V)
-
Image Sensor:
-
1/2.7" CMOS
-
Illumination Distance:
-
40 m (98.43 ft)
-
Focal Length:
-
2.7 mm-13.5 mm
-
Iris Type:
-
Vari-focal
-
BLC:
-
Yes
-
HLC:
-
Yes
-
WDR:
-
120 dB
-
Power Supply:
-
2V DC/PoE
-
Network:
-
Ip
-

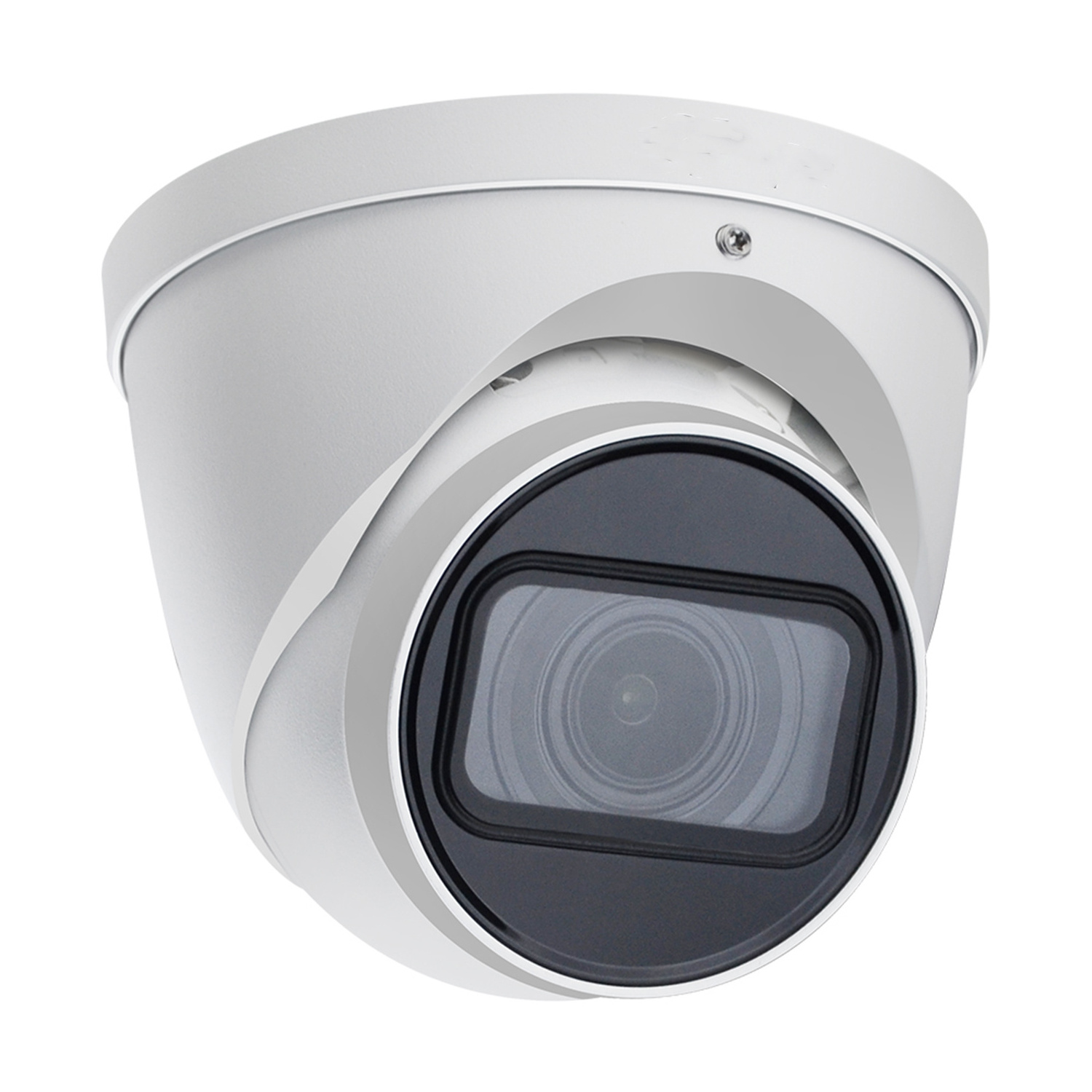

IPC-HDW2831T-ZS-S2
8MP Lite IR Vari-focal Eyeball Nework Camera
> 8MP, 1/2.7" CMOS image sensor, low illuminance, high image definition
> Outputs max. 8MP (3840 × 2160) @15 fps, and supports 2688×1520 (2688 × 1520) @25/30 fps
> H.265 codec, high compression rate, ultra-low bit rate
> Built-in IR LED, max IR distance: 40 m
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
> Intelligent detection: Intrusion, tripwire
> Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal ac- cess, voltage detection
> Supports max. 256 GB Micro SD card
> 12V DC/PoE power supply
> IP67 protection
Camera
Image Sensor
1/2.7” 8Megapixel progressive CMOS
Max. Resolution
3840 (H) × 2160 (V)
ROM
128 MB
RAM
256 MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100,000 s
Min. Illumination
0.008 Lux at F1.5
S/N Ratio
> 56 dB
Illumination Distance
40 m (131.23 ft)
Illuminator On/Off Control
Auto/Manual
Illuminator Number
2 (IR LED)
Pan/Tilt/Rotation Range
Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type
Motorized vari-focal
Mount Type
φ14
Focal Length
2.7 mm–13.5 mm
Max. Aperture
F1.5
Field of View
Horizontal: 113°–31°
Vertical: 58°–17°
Diagonal: 138°–36°
Iris Type
Fixed
Close Focus Distance
0.8 m–0.8 m (2.62 ft–2.62 ft)
DORI Distance
Lens
Detect
Observe
Recognize
Identify
W
85.3 m
(279.9 ft)
34.1 m
(111.9 ft)
17 m
(55.8 ft)
8.5 m
(27.9 ft)
T
280 m
(918.6 ft)
112 m
(367.5 ft)
56 m
(183.7 ft)
28 m
(91.9 ft)
Smart Event
IVS
Tripwire; intrusion
Video
Video Compression
H.265; H.264; H.264B; MJPEG (only supported by the sub stream)
Smart Codec
Smart H.265+/ Smart H.264+
Video Frame Rate
Main stream:
3840 × 2160 (1 fps–15 fps)
2688 × 1520 (1 fps–25/30 fps)
Sub stream:
704 × 576 (1 fps–25 fps)
704 × 480 (1 fps–30 fps)
Stream Capability
2 streams
Resolution
3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 ×1728 (3072 × 1728); 2592 × 1944 (2592 × 1944); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control
CBR/VBR
Video Bit Rate
H.264: 32 kbps–8192 kbps
H.265: 12 kbps–8192 kbps
Day/Night
Auto(ICR)/Color/B/W
BLC
Yes
HLC
Yes
WDR
120 dB
White Balance
Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control
Auto/Manual
Noise Reduction
3D NR
Motion Detection
OFF/ON (4 areas, rectangular)
Region of Interest(RoI)
Yes (4 areas)
Smart Illumination
Yes
Image Rotation
0°/90°/180°/270° (Supports 90°/270° with 3840 × 2160 resolution and lower.)
Mirror
Yes
Privacy Masking
4 areas
Alarm
Alarm Event
No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; safety exception
Network
Network
RJ-45 (10/100 Base-T)
SDK and API
Yes
Cyber Security
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
Interoperability
ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
User/Host
20
Storage
FTP; SFTP; Micro SD Card (support max. 256 GB); NAS
Browser
IE
Chrome
Firefox
Management Software
Smart PSS; DSS; DMSS
Mobile Phone
IOS; Android
