Quick Details
-
Brand Name:
-
SunSoont
-
Model Number:
-
SST-LP8EH2EHB
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Cheap price 24v passive POE Switch 8 port
-
PoE Ports:
-
8*10/100Mbps POE ports
-
Uplink Ports:
-
2*10/100Mbps RJ45 ports
-
Power pin:
-
4/5+ ; 7/8-
-
Total Power:
-
135W
-
PoE Port Power:
-
DC24V
-
Power Supply:
-
Input:AC100-240V 50/60Hz
-
Dimensions (W x D x H):
-
218*150*45mm
-
OEM/ODM:
-
Accept
-
Warranty:
-
3 years
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
2G
-
Brand Name:
-
SunSoont
-
Model Number:
-
SST-LP8EH2EHB
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Cheap price 24v passive POE Switch 8 port
-
PoE Ports:
-
8*10/100Mbps POE ports
-
Uplink Ports:
-
2*10/100Mbps RJ45 ports
-
Power pin:
-
4/5+ ; 7/8-
-
Total Power:
-
135W
-
PoE Port Power:
-
DC24V
-
Power Supply:
-
Input:AC100-240V 50/60Hz
-
Dimensions (W x D x H):
-
218*150*45mm
-
OEM/ODM:
-
Accept
-
Warranty:
-
3 years
Product Description

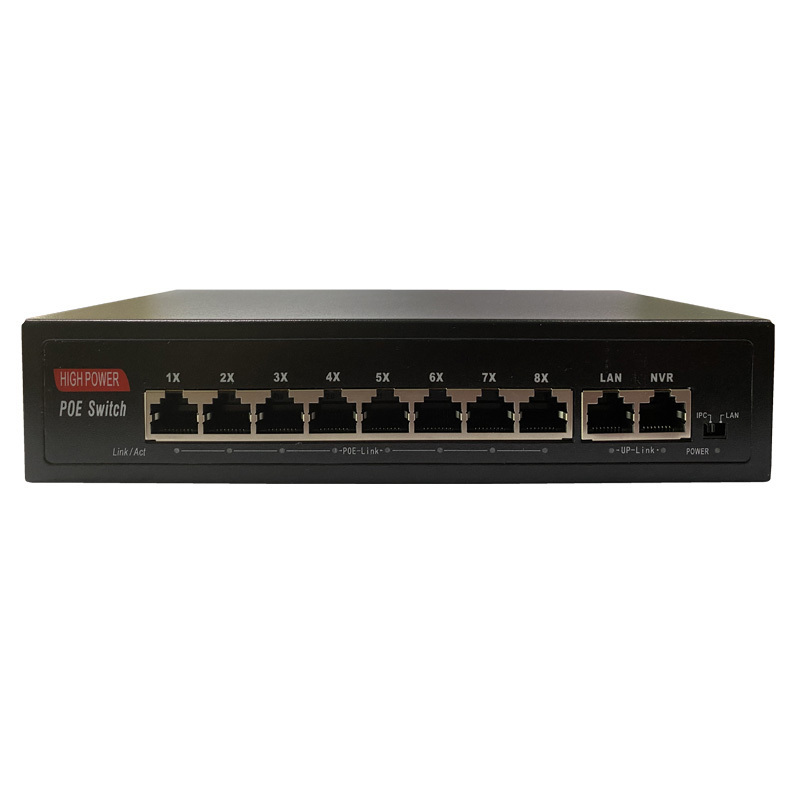

Cheap price 24v passive POE Switch 8 port for 24v POE Mikrotik Routerboard Unifi AP CPE
non-standard PoE switch, supplies 8*10/100Mbps Non-standard PoE ports (DC24V power supply), 2*10/100M RJ45 uplink ports. Each port support maximum 30W Ethernet power, supports to power non-standard PoE network cameras,non-PoE video intercom syste and wireless AP devices. It supports to choose switch mode, vlan islolated mode and long distance 250m mode (change rate to 10M). It applies to security system, smart areas and smart buildings network transmission application.
Feature
*High power: 135W, can load more devices and larger capacity.
*Support 8 100M Non-standard PoE ports and 2 100M uplink ports
*100M RJ45 port 12/36 PIN transmit signal, 45+/78- PIN DC24V power supply
*Support each port full 100M transmission
*Support 1K MAC learning table, 1Mbit Store-and-forward cache space
*Switch option:normal switch mode, vlan mode and 250m long distance mode
*Metal case, inside power, better for heat dissipating
Specification
|
Parameter
|
Specification
|
|
Standards
|
IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet
|
|
PoE
|
Power supply ports: 8 100M RJ45
Power supply voltage: Non-standard DC24V, support to use lower DC power supply; Power consumption each port: maximum 30W; RJ45 signal PIN position:1 2 3 6； RJ45 power supply PIN position: 4 5 positive, 7 8 negative, optical to choose 1 2 positive,3 6 negative; The device power consumption:maximum 135W |
|
Transmission distance
|
CAT 5: 100M rate 100m; 10M rate 250m (100M POE port)
|
|
Port
|
8 Non standard poe ports:10/100Mbps
2 RJ45 uplink ports:10/100Mbps |
|
MAC
|
1K
|
|
Buffer space
|
1Mbit
|
|
Bit error rate
|
<1/1000000000
|
|
MTBF
|
100000 hours
|
|
Power
|
AC100V~240V@50HZ/60HZ
|
|
Power consumption
|
PoE maximum power supply 75W
|
|
Working temperature
|
-10~60℃
|
|
Storage temperature
|
-40~80℃
|
|
Humidity
|
5%~90% non-condensing
|
|
Dimension
|
218*150*45mm
|
