Quick Details
-
Brand Name:
-
INNOVACERA
-
Size:
-
4-1400ml
-
Bulk density:
-
≥3.64g/cm3
-
Working temperature:
-
1650
-
Compressive Strength:
-
1950--3150Mpa
-
Density:
-
3.4--3.92 g/cm3
-
Dielectric Constant:
-
9.4MHz 20℃
-
Flexural Strength:
-
336.1Mpa
-
Color:
-
White
-
Usage:
-
High Temperature Melting
-
Shape:
-
Conical Cylindrial Square
Quick Details
-
Material:
-
Alumina Ceramic
-
Place of Origin:
-
Fujian, China
-
Model Number:
-
INNOVACERA
-
Brand Name:
-
INNOVACERA
-
Size:
-
4-1400ml
-
Bulk density:
-
≥3.64g/cm3
-
Working temperature:
-
1650
-
Compressive Strength:
-
1950--3150Mpa
-
Density:
-
3.4--3.92 g/cm3
-
Dielectric Constant:
-
9.4MHz 20℃
-
Flexural Strength:
-
336.1Mpa
-
Color:
-
White
-
Usage:
-
High Temperature Melting
-
Shape:
-
Conical Cylindrial Square

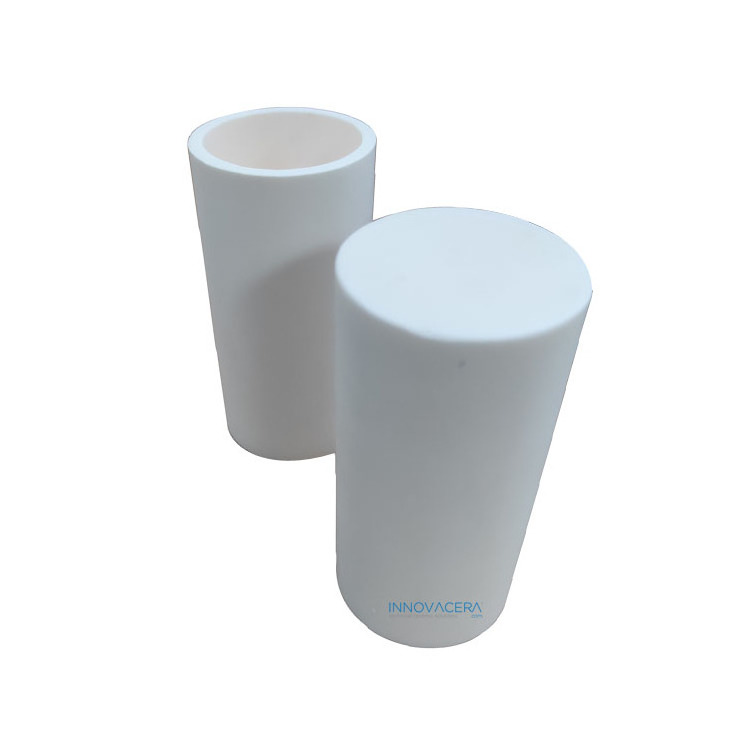

Ceramic crucible
is suitable for the analysis and melt of metal or non-metallic samples in a variety of laboratory and industrial applications. Main purpose of crucible and sagger is as a container for analysis and firing of material and product applied in various industries. For example: analysis of coal, melting of the metal, analysis and firing of chemical raw materials, analysis and melting of glass, analysis and firing of rare earth materials and mineral,firing of high temperature items such as ceramic products and melting of single-crystal raw materials.
|
Product Name
|
Alumina Ceramic Crucible
|
|
Material
|
99% Alumina (AL2O3)
|
|
Volume
|
4ml - 1350ml
|
|
Brade
|
INNOVACERA
|
Properties:
1. Hard, wear and abrasion resistance;
2. Good smooth and high strength and stiffness;
3. Resists strong acid and alkali attack at elevated temperatures;
4. Extreme high temperature stability;
5. Good thermal conductivity;
6. Excellent dielectric properties from DC to GHz frequencies
7. Good airproof capability;
8. Superior gas and vacuum tightness
Application:
1. Laboratory analysis and various industrial analysis, metal and nonmetal material sample melting.
2. High temperature application, such as metal processing, glass melting, rapid thermal cycling, gemstone purification for jewelry industry
3. Widely applied in the metallurgy, chemical industry and materials science, etc.
1. Hard, wear and abrasion resistance;
2. Good smooth and high strength and stiffness;
3. Resists strong acid and alkali attack at elevated temperatures;
4. Extreme high temperature stability;
5. Good thermal conductivity;
6. Excellent dielectric properties from DC to GHz frequencies
7. Good airproof capability;
8. Superior gas and vacuum tightness
Application:
1. Laboratory analysis and various industrial analysis, metal and nonmetal material sample melting.
2. High temperature application, such as metal processing, glass melting, rapid thermal cycling, gemstone purification for jewelry industry
3. Widely applied in the metallurgy, chemical industry and materials science, etc.
|
Alumina Ceramics Properties
|
|
|
|
|||
|
|
Unit
|
95%
|
99%
|
|||
|
Density
|
g/cm3
|
3.6
|
3.8
|
|||
|
Water absorption
|
%
|
<0.4
|
<0.2
|
|||
|
Firing temperature
|
°C
|
1600
|
1800
|
|||
|
Hardness
|
HRA
|
70
|
80
|
|||
|
Coefficientoflinearexpansion
|
*10-6/°C
|
5.5
|
5.3
|
|||
|
Dielectric constant
|
|
9
|
10.5
|
|||
|
Volume resistivity
|
Ω·cm
|
—
|
1013
|
|||
|
Breakdownvoltage
|
KV/mm
|
14
|
15
|
|||
|
Breaking strength
|
Mpa
|
250
|
300
|
|||
