Quick Details
-
Weight (KG):
-
450
-
Voltage:
-
4.7KW/ 220V 50/60HZ
-
Place of Origin:
-
WUHAN
-
Brand Name:
-
KAPCK
-
Dimension(L*W*H):
-
2040*1800*2140mm
Quick Details
-
Function:
-
FILLING, Wrapping, Sealing
-
Packaging Type:
-
Film, Foil
-
Packaging Material:
-
Plastic
-
Weight (KG):
-
450
-
Voltage:
-
4.7KW/ 220V 50/60HZ
-
Place of Origin:
-
WUHAN
-
Brand Name:
-
KAPCK
-
Dimension(L*W*H):
-
2040*1800*2140mm
Products Description
Features
1, the main transmission part of the parallel shaft helical gear reduction box, novel structure, smooth operation, long life, low noise.
2, heat sealing station fixed, forming, indentation, blanking and other parts can move freely adjust the spacing, correction is convenient and simple.
3, the manipulator traction, stroke adjustable, can adapt to different sizes of the packaging.
4, flat structure, can pack special shape items, such as oval, square, triangle, liquid, paste, syringe, etc.
Note
1, optional cursor tracking plate sealing device.
2, optional organic glass cover shell.
3. Optional ink-jet coding (word) device
Application
Application

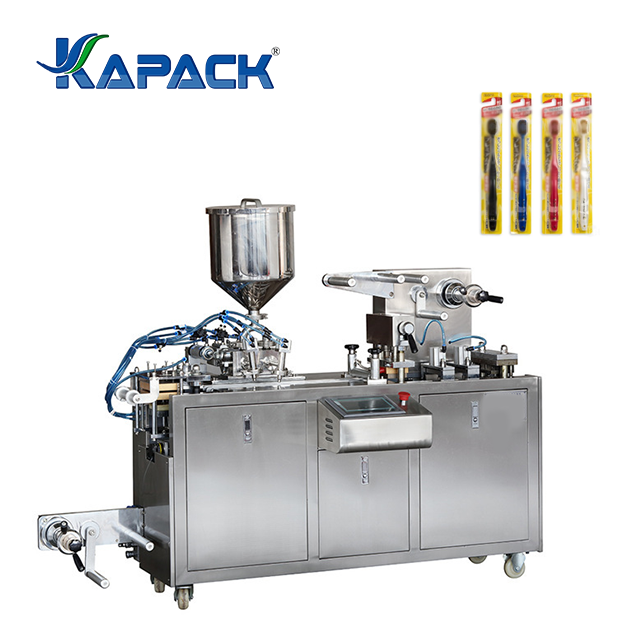

Blister packing machine is of flat-plate structure, with pressing, molding, meshes heat-sealing, adjustable travel range, for small size of body and ease of operation. It is applied to Al-Al, Al-PVC, Al-plastic packaging for capsule, table, candy, healthcare, small hardware etc. It is widely used in small pharmacy factory, preparation-room of hospital institute laboratory, mini-motor test workshop. The machine reaches advanced level in China.
It is suitable for capsule, tablet, honey pill, candy, liquid (ointment), paste as well as irregular shape Al-al Al-plastic and paper-plastic composite sealing packing in healthcare, food, cosmetics equipment industry etc.
Product Paramenters
Following specification is one of the model, please kindly send us your detailed requirements, we will choose the suitable model for you.
|
item
|
value
|
|
Production Capatity
|
2400 edition/hour
|
|
Punch speed
|
25-50 pieces/min
|
|
Max. forming depth
|
Maximum 30mm
|
|
Max. Forming Area
|
115*80*14mm
|
|
Max Forming Depth
|
26mm or customized
|
|
Stroke range
|
20-70mm
|
|
PVC hard Film
|
(0.15-0.5)*80mm PTP Aluminum film (0.02-0.035)*80mm
|
|
Air pressure
|
0.6mpa-0.8mpa
|
|
Power
|
380V/220V 50Hz 4kw
|
|
Main motor power
|
0.75kw
|
|
Material types
|
PVC, PET, PS, composite film,aluminium foil
|
|
Material width
|
120mm
|
|
Mould cooling
|
tap water or recycled water 60L/h
|
|
Overall dimension
|
1800*650*1750mm
|
|
Weight
|
450KG
|
Details
