Quick Details
-
Brand Name:
-
ASLONG
-
Model Number:
-
WP-370B
-
Place of Origin:
-
Guangdong, China
-
Cable Length:
-
0
-
Outlet Size:
-
8mm
-
Usage:
-
Water
-
Power:
-
Pneumatic
-
Product name:
-
12V DC Motor Air Pump
-
Flow rate:
-
1.1~1.3L/min water
-
Keywords:
-
mini water pump
-
Motor:
-
12v /24v dc motor
-
Pump Type:
-
Vertical Installation
-
Certification:
-
RoHS
Quick Details
-
Application:
-
Drinking water treatment, Family Homes, Water Distribution
-
Pressure:
-
Low Pressure
-
Voltage:
-
DC9.6V to 14.4v, 12V/24V
-
Brand Name:
-
ASLONG
-
Model Number:
-
WP-370B
-
Place of Origin:
-
Guangdong, China
-
Cable Length:
-
0
-
Outlet Size:
-
8mm
-
Usage:
-
Water
-
Power:
-
Pneumatic
-
Product name:
-
12V DC Motor Air Pump
-
Flow rate:
-
1.1~1.3L/min water
-
Keywords:
-
mini water pump
-
Motor:
-
12v /24v dc motor
-
Pump Type:
-
Vertical Installation
-
Certification:
-
RoHS
Product Description
1.Standard Operating Conditions:
1-1 Rated Voltage:6VDC 12VDC constant between motor terminals
1-2 Direction of Rotation: CW when viewed from output shaft side
1-3 Operating Temperature and HumidityTemperature range of -10℃~+50℃, Humidity range of 30%~80%
temperature range of -10℃~+50℃
temperature range of -10℃~+50℃
1-4 Storage TemperatureTemperature range of -20℃~+60℃
2.Measuring Conditions:
2-1 Motor Position:To be place t horizontally when measuring
2-2 Power Supply: Regulated DC power supply
2-3 Environmental Temperature and Humidity: Temperature range of 15℃ to 30℃ Relative humidity 30%and 70%
2-4Power Supply: Regulated DC power supply
2-5 Application:--Robotics, Small Appliance, Fanner, Electric Curtain; --Medical Pump, Surgery Tools, Medical Stirrer, centrifugal Machine; Electric Valve, Actuator, medical device
2-6 Character:--Electric motor,low noise,low current and no spark. --High quantity ,small body

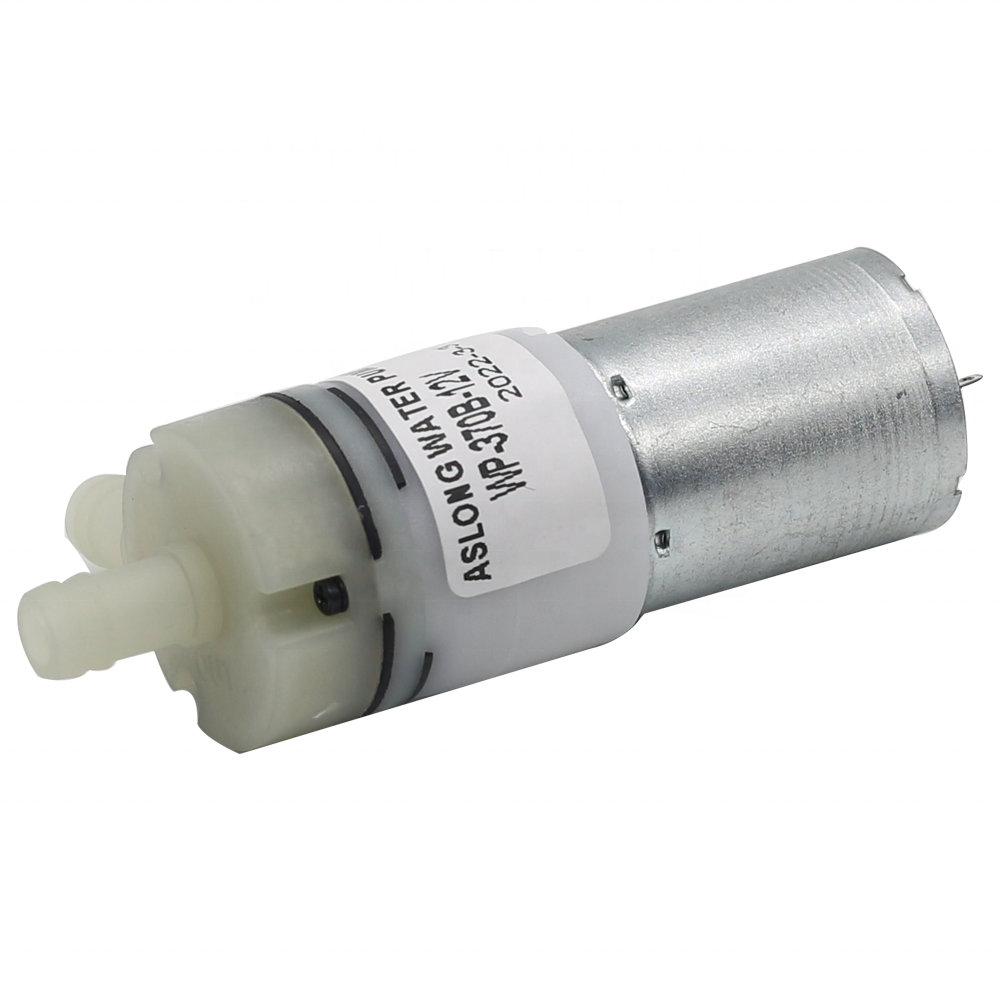

Model: WP-370B
Rated Volt :DC 12V
Working volt range: DC9.6V to 14.4v
Rated Current :<100ma
No-loading flow:0.8-0-1.2L/min(Air)
No-loading flow(water):0.4-0.7L/min
Noise :<55db （30cm away）
Max Inflation pressure:>300mmhg
Air nozzle diameter：dia 8 mm‘’
Max water presser : >30psi( 200KPA)
Life test : >500hours (continues)
suction distance：>5m
Pump Heiht ： >5m
Net weught :65G
Rated Volt :DC 12V
Working volt range: DC9.6V to 14.4v
Rated Current :<100ma
No-loading flow:0.8-0-1.2L/min(Air)
No-loading flow(water):0.4-0.7L/min
Noise :<55db （30cm away）
Max Inflation pressure:>300mmhg
Air nozzle diameter：dia 8 mm‘’
Max water presser : >30psi( 200KPA)
Life test : >500hours (continues)
suction distance：>5m
Pump Heiht ： >5m
Net weught :65G
What are the partners
Why choose us
1.Company Advantage:
A. Our company is a large-scale professional manufacturer deeply trusted by domestic and overseas customers, integrating development, production, wholesales and service.
B. To ensure high-quality and best service ,kingly built up professional teams engaged in research,product engineering and sales.
C. We have 10 years experience in the design of the research and development, With strong technology developing ability and manufacturing capability, advanced equipment
2. Product Advantage:
A. Variety of products,quality guaranteed, products are widely used
B. Advanced product testing equipment
C. Product flexibility, customize according to the requirements of the clients any special develop all kinds of molds, Independent research and development since the open mold products
D. Products through a variety of certification(CE,RoHs,ISO,CCC,UL….)
E. Some products have patent certificate
3. Main product advantage:
A . Specifications can be tailoer-made according to customer’s requirements.
B. Can provide free samples
C. Product quality is guaranteed, a short period of delivery
