Quick Details
-
Brand Name:
-
SOMPOM
-
Model Number:
-
S-180-24
-
Output Frequency:
-
90KHZ
-
Output Current:
-
7.5A
-
Product Name:
-
Swtiching Power
-
Feature:
-
9 Years+ Production Experience
-
Warranty:
-
2 Years
-
Certification:
-
CE RoHS ISO9001 FCC CCC
-
Efficiency:
-
>85%
-
Weight:
-
502g
-
Packing:
-
Carton
-
Size:
-
199*97*42mm
-
Working Temp:
-
-10C°-60C°
-
Type:
-
Constant Voltage
Quick Details
-
Input Voltage:
-
85-264VAC
-
Output Voltage:
-
24V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SOMPOM
-
Model Number:
-
S-180-24
-
Output Frequency:
-
90KHZ
-
Output Current:
-
7.5A
-
Product Name:
-
Swtiching Power
-
Feature:
-
9 Years+ Production Experience
-
Warranty:
-
2 Years
-
Certification:
-
CE RoHS ISO9001 FCC CCC
-
Efficiency:
-
>85%
-
Weight:
-
502g
-
Packing:
-
Carton
-
Size:
-
199*97*42mm
-
Working Temp:
-
-10C°-60C°
-
Type:
-
Constant Voltage

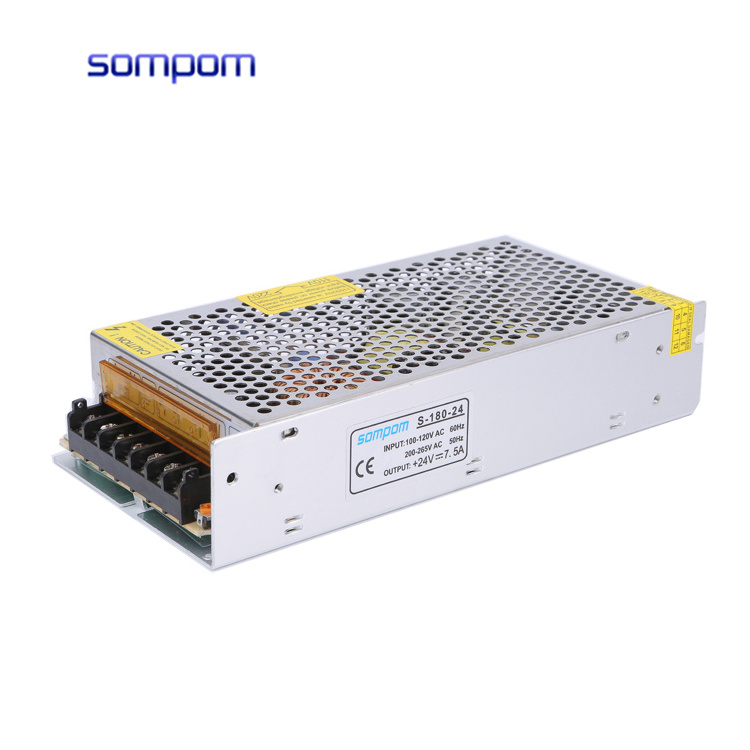

Sompom OEM High Reliability Metal case 24vdc 7.5a pcb LED Switch power AC DC 180W Switched source
| DC Output | DC Voltage: 24 V |
| DC Current : 7.5 A | |
| Ripple & Noise: 80MV | |
| DC Adjustable Range: ±10% Rated Voltage | |
| Voltage Tolerance: ±2.0% | |
| Line Regulation: ±0.5% | |
| Load Regulation: ±1% | |
| Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC | |
| AC Input | AC Voltage Range: 85-264VAC |
| Frequency Range: 47-63Hz | |
| Efficiency:>85% | |
| AC Current: 0.86/115V 0.4A/230V | |
| AC Inrush Current: 20A/115V 40A/230V | |
| Leakage Current< 0.5mA /240VAC | |
| Protection | Over-load: 105%-150% hiccup mode,Auto-recovery |
| Over-voltage: 115%-135% Cut Off the Output,Auto-recovery | |
| Over-temp. : Shut down O/P voltage, Auto-recovery | |
| Environment | Working temp.: -10~ +60 C° (Refer to output load derating curve) |
| Working Humidity:20 ~ 90% RH, non-condensing | |
| Storage Temp.: -10~ +60 C° | |
| Storage Humidity: 10 ~ 95% RH | |
| Safety | Isolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25 C° / 70% RH |
| Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |
| Safety standards: CE,RoHS,FCC,ISO9001,CCC |
SOMPOM is focusing on offering LED switch power, waterproof switch power,rainproof switch power,AC-DC power adapter and CCTV camera power. Withe the over load protection, over voltage protection and high temperature protection. SOMPOM wins customer ’ s favor by its high efficiency, reliability and long life span. Each of the switch power is extremely safe and stable after 5 times testing. All of our powers have the ISO9001,CE,FC,ROHS certification. Our switch powers are widely used in industrial automation field, indoor and outdoor LED lighting, LED lighting engineering.
1,Q: What is your MOQ of switch power?
A: Our MOQ is 1 piece
2,Q:How many year warranty of your Led driver?
A: Two years
3,Q: Do you offer sample of power?
A: Yes, We offer free sample, but you need pay the shippment.
4,Q: Do you have switch power factory?
A: Yes, we are OEM & ODM manufacturer in Dongguan.
5,Q: Is your power with copper transform or something?
A: We can do with complete copper transform and copper cladding aluminum.
6,Q: Do you have any certification?
A: Yes, we have CE, RoHS, FCC and ISO9001 right now. If you need other certification with large order, We can apply for it.
|
