Quick Details
-
Product name:
-

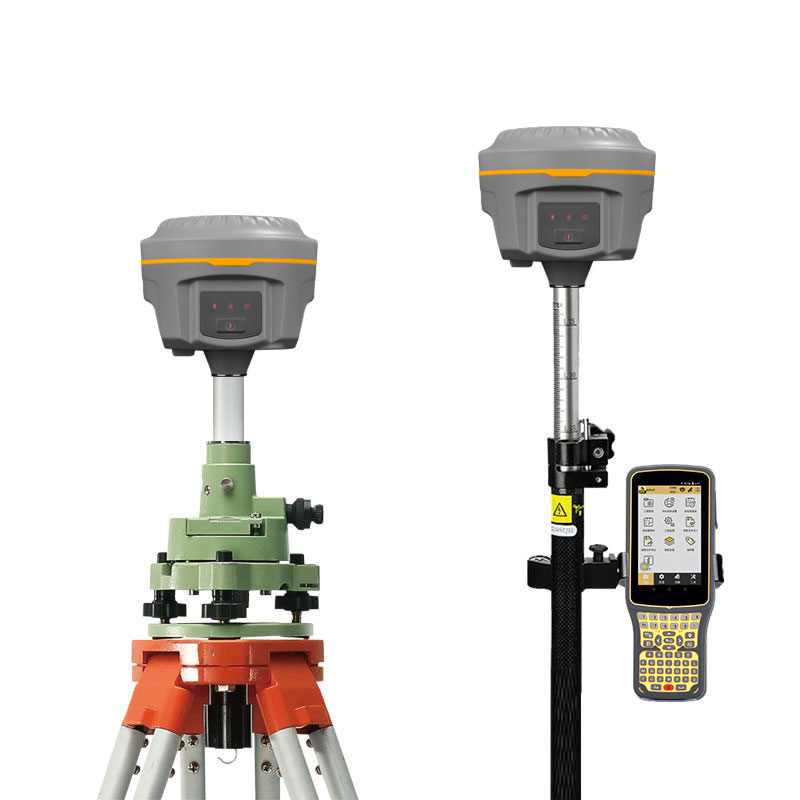

GALAXY G1
-
Usage:
-
Land Surveying
-
Li-ion battery capacity:
-
6800 mAh
-
L-band, QZSS:
-
L1 C/A, LIC, L2C, L5, LEX
-
Frequency Range:
-
410-470MHz
-
Operating:
-
-45°C~+60°
-
Positioning output rate:
-
1Hz, 2Hz, 5Hz, 10Hz, 20Hz & 50Hz
-
channel:
-
965
-
Type:
-
Gps Receiver
-
Water/dust- proof:
-
IP67
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
south
-
Product name:
-
GALAXY G1
-
Usage:
-
Land Surveying
-
Li-ion battery capacity:
-
6800 mAh
-
L-band, QZSS:
-
L1 C/A, LIC, L2C, L5, LEX
-
Frequency Range:
-
410-470MHz
-
Operating:
-
-45°C~+60°
-
Positioning output rate:
-
1Hz, 2Hz, 5Hz, 10Hz, 20Hz & 50Hz
-
channel:
-
965
-
Type:
-
Gps Receiver
-
Water/dust- proof:
-
IP67
Products Description
Product Paramenters
|
SPECIFICATIONS
|
|
|
|
Satellite Signals Tracked Simultaneously
|
|
|
|
Signal tracking
|
965 channels (optional)
|
|
|
|
BeiDou (B1, B2, B3)
|
|
|
|
GPS (L1C/A, LIC, L2E, L2C, L5)
|
|
|
|
Galileo (E1, E5a, E5b, Alt-BOC, E6)
|
|
|
|
Glonass (L1C/A, L1P, L2C/A, L2P, L3)
|
|
|
|
SBAS (WAAS, EGNOS, MSAS, GAGAN), L-band, QZSS (L1 C/A, LIC, L2C, L5, LEX)
|
|
|
GNSS features
|
Positioning output rate:1Hz, 2Hz, 5Hz, 10Hz, 20Hz & 50Hz (depends on installed option)
|
|
|
|
Initialization time:<10s
|
|
|
|
Initialization reliability:>99.99%
|
|
|
Positioning precision
|
|
|
|
Code differential DGPS/RTCM Typically
|
Horizontal: 25cm+1ppm Vertical: 50cm+1ppm
|
|
|
SBAS positioning accuracy
|
Typically <5m 3DRMS
|
|
|
Static (phase) with long observations
|
Horizontal: 2.5mm+0.5ppm Vertical: 5mm+0.5ppm
|
|
|
Real-time Kinematic surveying
|
Horizontal: 8mm+1ppm Vertical: 15mm+1ppm
|
|
|
Network RTK
|
Horizontal: 8mm+0.5ppm Vertical: 15mm+0.5ppm
|
|
|
RTK initialization time
|
2~8s
|
|
|
User interaction
|
|
|
|
Operaing system
|
Linux
|
|
|
Buttons
|
Single button operation
|
|
|
Indicators
|
Three indicate lights
|
|
|
Web UI
|
Freely to configure and monitor the receiver by accessing to the web server via Wi-Fi and USB
|
|
|
Voice guide
|
iVoice intelligent voice technology provides status and voice guide
|
|
|
|
Supporting Chinese, English, Korean, Russian, Portuguese, Spanish, Turkish and user define
|
|
|
Hardware performance
|
|
|
|
Dimension
|
129mm(Diameter)×112mm(Height)
|
|
|
Weight
|
1kg(battery included)
|
|
|
Material
|
Magnesium aluminum alloy shell
|
|
|
Operating
|
-45°C~+60°
|
|
|
Storag
|
-55°C~+85°C
|
|
|
Humidity
|
100% Non-condensing
|
|
|
Waterproof/Dustproof
|
IP68 standard, protected from long time immersion to depth of 1m
|
|
|
|
IP68 standard, fully protected against blowing dust
|
|
|
Shock and vibration
|
Withstand 2 meters pole drop onto the cement ground naturally
|
|
|
PowerS Supply
|
9-25V DC, overvoltage protection
|
|
|
Battery
|
Rechargeable, removable Lithium-ion battery, 7.4V; standard four batteries power package(optional)
|
|
|
Communications
|
|
|
|
I/O port
|
5-PIN LEMO port, 7-PIN USB port (with OTG)
|
|
|
|
1 TNC radio antenna interface, SIM card slot
|
|
|
UHF modem
|
Built-in radio, 1W/2W/3W switchable, typically work range can be 8KM
|
|
|
|
Radio and internet repeater switchable
|
|
|
Frequency Range
|
410-470MHz
|
|
|
Communication Protocol
|
TrimTalk, SOUTH, SOUTH+, SOUTHx, huace, ZHD, Satel
|
|
|
Cellular Mobile Network
|
TDD-LTE/FDD-LTE 4G network modem, downward compatible with WCDMA/CDMA2000 3G and GPRS/EDGE 2G
|
|
|
Double Module Bluetooth
|
BLEBluetooth 4.0 standard, support for android, ios cellphone connection
|
|
|
|
Bluetooth 2.1 + EDR standard
|
|
|
NFC Communication
|
Realizing close range (shorter than 10cm) automatic pair between receiver and controller
|
|
|
|
(controller equipped NFC wireless communication module needed)
|
|
|
WIFI
|
|
|
|
Standard
|
802.11 b/g standard
|
|
|
WIFI Hotspot
|
The WIFI hotspot allows any mobile terminal to connect and access to the internal webserver for the control
|
|
|
|
and moditor receiver
|
|
|
WIFI data link
|
To work as the datalink that receiver is able to broadcast and receive differential data via WIFI
|
|
|
Data storage/ Transmission
|
|
|
|
Data Storage
|
8GB SSD internal storage
|
|
|
|
Support external USB storage and automatical cycle storage
|
|
|
|
Changeable record interval, up to 50Hz raw data collection
|
|
|
Data Transmission
|
USB data transmission, supporting FTP/HTTP data download
|
|
|
Data Format
|
Differential data format: CMR+, SCMRx, RTCM 2.1, RTCM 2.3, RTCM 3.0, RTCM 3.1, RTCM 3.2
|
|
|
|
GPS output data format: NMEA 0183, PJK plane coordinates, Binary code, Trimble GSOF
|
|
|
|
Network model support: VRS, FKP, MAC, fully support NTRIP protocol
|
|
|
Inertial sensing system
|
|
|
|
Tilt survey (optional)
|
Built-in tilt compensator, correcting coordinates automatically according to the tilt direction and angle
|
|
|
|
of the centering rod
|
|
|
Electronic bubble (optional)
|
Controller software display electronic bubble, checking leveling status of the centering rod real time
|
|
|
Thermometer
|
Built-in thermomter sensors, adopting intelligent temperature control technology which can mornitor and
|
|
|
|
adjust the temperature of receiver in real time
|
|
