Quick Details
-
Controller Type:
-
MPPT
-
Special Features:
-
Flashlight, QC18W, PD45W
-
Model Number:
-
IS-688
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM / ODM
-
Product name:
-

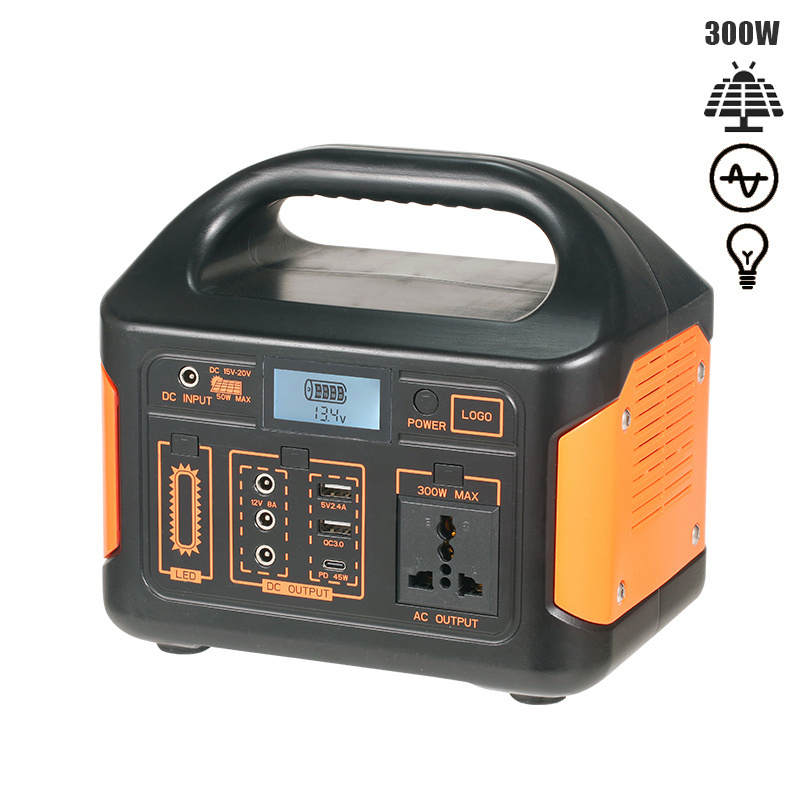

Portable Solar Power Station 300W
-
Output Waveform:
-
Pure Sine Wave
-
Rated Power:
-
300W (500W Optional)
-
AC Output:
-
220V/110V ±5%
-
AC Output Voltage:
-
50Hz/60Hz ±0.5Hz
-
Conversion Efficiency:
-
Max>90%
-
Battery Capacity:
-
256WH(IS-688) / 460.8WH(IS-788)
Quick Details
-
Power Source:
-
AC Adaptor, Car, Solar Panel
-
Battery Type:
-
LiFePO4
-
Inverter Type:
-
Pure Sine Wave
-
Controller Type:
-
MPPT
-
Special Features:
-
Flashlight, QC18W, PD45W
-
Model Number:
-
IS-688
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM / ODM
-
Product name:
-
Portable Solar Power Station 300W
-
Output Waveform:
-
Pure Sine Wave
-
Rated Power:
-
300W (500W Optional)
-
AC Output:
-
220V/110V ±5%
-
AC Output Voltage:
-
50Hz/60Hz ±0.5Hz
-
Conversion Efficiency:
-
Max>90%
-
Battery Capacity:
-
256WH(IS-688) / 460.8WH(IS-788)
Product Description
|
Model
|
IS-688S
|
|
Rated Power
|
300W
（500W Optional）
|
|
Output Waveform
|
Pure Sine Wave
|
|
AC Output Voltage
|
220V/110V ±5%（Optional）
|
|
AC Output Frequency
|
50Hz/60Hz ±0.5Hz
|
|
Conversion Efficiency
|
Maximum Value >90%
|
|
AC Output Socket
|
Universal Socket
|
|
DC Output Voltage
|
USB 5V 2.4A, QC18W, PD45W, DC12V8A, DC5521*3
|
|
Battery Type
|
LiFePO4
|
|
Battery Capacity
|
256WH (2.8V / 20AH)
|
|
Solar Panel
|
15V-20V / 50W Max (Optional)
|
|
Input Current
|
2.5A max
|
|
AC charger
|
14.6V 2.5A
|
|
Charge Time
|
After full discharge, the battery capacity of
5 hours
of charging reaches
80%
|
|
LCD Display
|
Battery capacity, Battery voltage, State of charge, State of discharge
|
|
Heat Dissipation
|
Dual fan temperature control heat dissipation
|
|
Noise
|
<45 decibels within 1 meter
|
|
Protection Function
|
Low voltage, over voltage, overload, over temperature, over current and short circuit
|
|
Operating Ambient Temperature
|
-10～40℃
|
|
Shell Material
|
Plastic fire enclosure
|
|
Product Weight
|
4.2KG
|
|
Product Size(W*D*H)
|
211*160*196mm
|
|
LED Light States
|
LED high beam, low beam, bright, half bright, flashing, LED off
|
|
Protection Functions
|
Low Voltage, Over Voltage, Over Load, Over Temperature, Short Circuit
|
Feature :
1. DC/AC complete isolation
2. High frequency design, small size
3. Pure copper transformer, high efficiency, low no-load loss
4. Microprocessor, digital control, all-round protection
5. Built-in solar charger, intelligent charge and discharge management
6. AC output and DC output have independent switch function
