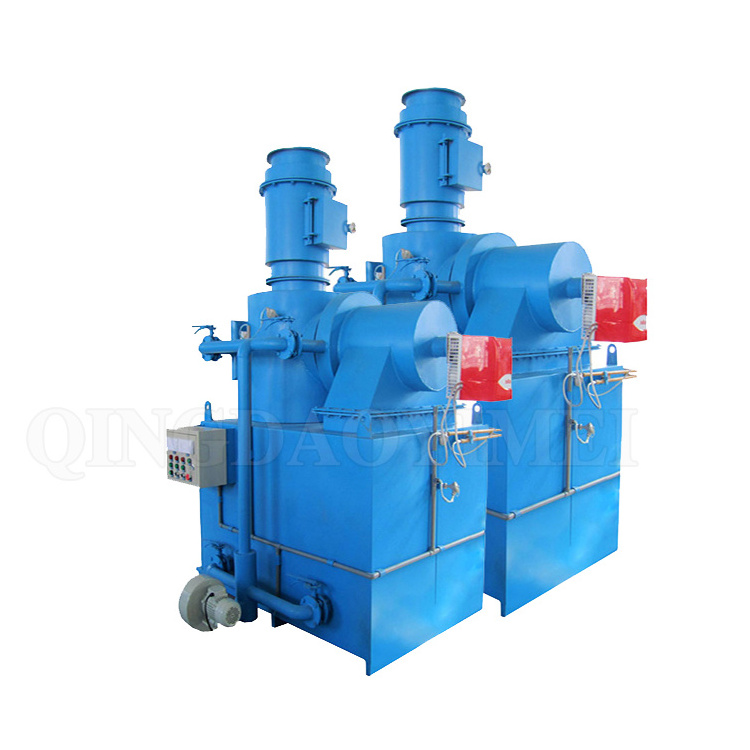

LDF series medical waste incinerator is the China aviation industry planning institute and (Qingdao) environmental engineering co., LTD., the introduction of Japanese medical waste incinerator technology, pr and organize technical experts, discard the advantages and disadvantages of similar equipment at home and abroad, development developed a unique domestic, international advanced medical waste incineration equipment.The equipment has the characteristics of small volume, high incineration efficiency,
reasonable process, advanced technology and high degree of innocency.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
ldf-100
-
Weight (KG):
-
4000 kg
-
Product name:
-
pet cremator animal cremation oven poultry waste incinerator
-
Application:
-
waste disposal
-
Type:
-
diesel fuel
-
Color:
-
Customerized
-
Capacity:
-
50kg/time
-
After-sale service:
-
Engineer overseas service
-
Certification:
-
ISO9001/CE
-
Voltage:
-
380v/220v
-
Control:
-
Electric control box
-
Service life:
-
5-8 Years
Quick Details
-
Production Capacity:
-
10-300kg/time
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WATERYIMEI
-
Model Number:
-
ldf-100
-
Weight (KG):
-
4000 kg
-
Product name:
-
pet cremator animal cremation oven poultry waste incinerator
-
Application:
-
waste disposal
-
Type:
-
diesel fuel
-
Color:
-
Customerized
-
Capacity:
-
50kg/time
-
After-sale service:
-
Engineer overseas service
-
Certification:
-
ISO9001/CE
-
Voltage:
-
380v/220v
-
Control:
-
Electric control box
-
Service life:
-
5-8 Years
Product Description
Design basis:
1. Furnace body type:Vertical closed furnace combustion chamber;
2. Burning capacity:10-400kg/time ( daily burn 3-6times,each time consume about 1 hour )
3. Ignition manner:automatic
4. Fuel type:0# or-10# diesel;
5. Feeding mode:Solid waste manual feeding
6. Take ash manner :manual
7. Furnace inner pressure:adopt negative pressure design, no back-fire,—3~—10mmH2O
8.Design heat value: waste mix 1500kcal/kg ~2500kcal/kg,0# diesel 10000kcal/kg
9.Flue gas treatment manner:
Gasification combustion chamber(first combustion chamber) + blower + mixed combustion chamber+high temperature secondary combustion chamber + flue gas purification room (calcium hydroxide filter brick) +exhaust fan + independent chimney
10. Burning temperature:
First combustion chamber: 600-800℃
Secondary combusition chamber:1500℃
Flue gas residence time≥2s
Combustion efficiency: ≥99.99%.
Operation principle
Main Feature
1. Smoke free, odorless, non-secondary pollution
2. No need of combustion adjuvant, spontaneous ignition(value: 3000kcal/kg),recovery of vapor, gas for heat generating.
3. 8-10 years of life time of converter body.
4. Zero failure: low failure rate and cost of maintenance.
5. Easy operation: easy to learn, easy to burn, energy saving.
6. Sub-pressure design, no-backfire, consecutive feeding and large treating capacity.
7. High security: open type design for non-explosion, auto water and power-cutoff system as well as warning system
.
Detailed Images
Size Information
Size Chart of This Design
|
Model item
|
LDF-20
|
LDF-30
|
LDF-50
|
LDF-100
|
LDF-150
|
LDF-300
|
LDF-500
|
|
Burning Capacity(kg/time)
3-6 times/day |
10-20
|
20-30
|
30-50
|
50-100
|
100-150
|
200-300
|
300-400
|
|
Size of the Burner (m)(L*H*B)
|
1.6*1.2*1.7
|
1.45*0.9*1.75
|
1.8*1.15*3
|
1.8m*1.4*3.4
|
2*1.4*3.5
|
2.2*1.4*3.8
|
3*2*4.8
|
|
Size of the filling entrance (mm)
|
380*480
|
480*600
|
620*800
|
520*720
|
760*960
|
900*1100
|
1080*1280
|
|
Chimney(mm)
|
Ø280
(OD)
|
Ø280
(OD)
|
Ø280
(OD)
|
Ø300
(OD)
|
Ø300
(OD)
|
Ø400
(OD)
|
Ø460
(OD)
|
|
Air-blower(KW)
|
0.25
|
0.37
|
0.37
|
0.5
|
0.5
|
1.1
|
1.1/0.55
|
|
Auxiliary machine power(kw)
|
0.11
|
0.11
|
0.11
|
0.11
|
0.11
|
0.22
|
0.22
|
|
Auxiliary machine oil consumption(kg/h)
|
4-6
|
4-6
|
4-10
|
4-10
|
4-10
|
7-14
|
7-14
|
|
Re-burning machine power(kw)
|
0.11
|
0.11
|
0.11
|
0.22
|
0.22
|
0.37
|
0.37
|
|
Re-burning machine oil consumption(kg/h)
|
4-6
|
4-6
|
4-10
|
7-14
|
7-14
|
10-20
|
15-26
|
|
Running voltage(V)
|
380/ 220
|
380/ 220
|
380/ 220
|
380/ 220
|
380/ 220
|
380/ 220
|
380/ 220
|
|
FOB Qingdao price (USD/set)
|
|
|
|
|
|
21300
|
25300
|
Company Introduction
Qingdao yimei environmental engineering co., LTD. Was established in 1988, located in huangdao district, Qingdao, the largest military port base in China.Covering an area of 36,000 square meters, the factory covers 15,000 square meters and has more than 130 sets of processing machinery.It is shandong province environmental protection industryassociation director unit.The company has 360 employees, including 72 engineering technicians, who are mainly engaged in environmental engineering, design,manufacturing of environmental protection equipment, development of water treatment technology, engineering construction,technical services and a series of products required by users.
