Quick Details
-
Type:
-
Three-way full range system
-
Frequency Response:
-
45Hz-18KHZ
-
Power Supply:
-
LF 1200W(RMS)4800W(PEAK)MF+HF 400W(RMS)1600W(PEAK)
-
Sensitivity:
-
LF105dB(1W@1M)/MF+HF106dB(1W@1M)
-
Max SPL:
-
LF136dB(PEAK)/MF+HF138dB(PEAK)
-
Drivers:
-
LF 2*15" MF 10" HF 1*3"
-
Nominal impendance:
-
LF4ohm MF+HF 8ohm
-
Dimension:
-
473.6*1250*480mm
-
Enclosure Material:
-
Plywood
Quick Details
-
Model Number:
-
cv-253D
-
Place of Origin:
-
china
-
Model:
-
CV-253D
-
Type:
-
Three-way full range system
-
Frequency Response:
-
45Hz-18KHZ
-
Power Supply:
-
LF 1200W(RMS)4800W(PEAK)MF+HF 400W(RMS)1600W(PEAK)
-
Sensitivity:
-
LF105dB(1W@1M)/MF+HF106dB(1W@1M)
-
Max SPL:
-
LF136dB(PEAK)/MF+HF138dB(PEAK)
-
Drivers:
-
LF 2*15" MF 10" HF 1*3"
-
Nominal impendance:
-
LF4ohm MF+HF 8ohm
-
Dimension:
-
473.6*1250*480mm
-
Enclosure Material:
-
Plywood
Product Description

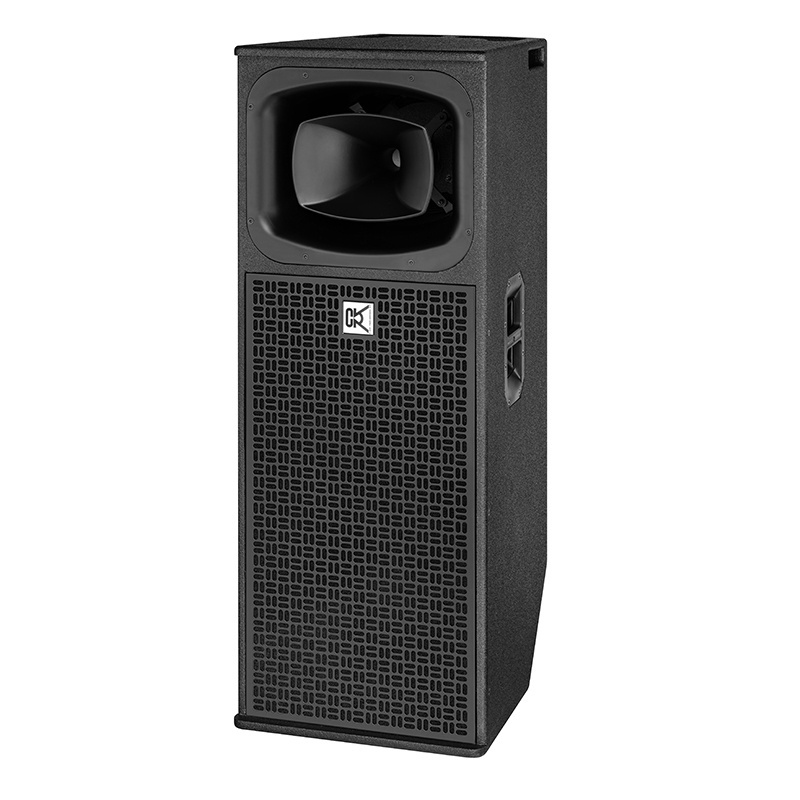

High End Top Speaker Dual 15 Inch Professional Audio Speaker
CV-253 is a three-way dual 15 inch full range system,with solid structure,novel shape and transparent sound quality.CV-253 Equipped with two 15 inch woofer,one 10 inch mid-range driver,and one 3 inch neodymium,compression driver.The Mid-Hi components are coaxial structure.with long stroke.wide frequency band,energy density and good transient.To make
the layers and more distinct and the details are more prominent.The cabinet is constructed from birch plywood,with compact structure and reasonable layout,and water-proof,durable and textured polyurethane coating.two castors are hidden at the bottom,handles are on the top and two sides of the cabinet,All these humanized designs make transportation easier for any types of indoor or outdoor applications. It is built with a strong grill with the sound-tranmitting mesh to make the sound more balance.CV-253 is bi-amp design brings stronger SPL,it can reduce distortion when it plays at its full power output.
APPLICAZTIONS:live performance,sports venues,conference,church.
Specification
|
Model Number
|
cv-253
|
|
Place of Origin
|
china
|
|
Channels
|
2.1
|
|
Color
|
black
|
|
Number of speakers
|
4
|
|
Woofer Size/Full-Range Size
|
15"
|
|
Material
|
Wood
|
|
Model
|
CV-315
|
|
Type
|
Three-way full range system
|
|
Frequency Response
|
45Hz-18KHZ
|
|
Power Supply
|
LF1200W(RMS)4800W(PEAK) MF+HF 400W(RMS)1600W(PEAK)
|
|
Sensitivity
|
LF105dB(1W@1M) MF+HF 106dB(1W@1M)
|
|
Max SPL
|
LF136dB(PEAK) MF+HF 138dB(PEAK)
|
|
Drivers
|
LF 2*15" MF 1*10" HF3"
|
|
Nominal impendance
|
LF 4ohm/MF+HF 8ohm
|
|
Dimensions
|
473.6*1250*480mm
|
|
Enclosure Material
|
Plywood
|
Packing & Delivery
good quality carton box or flightcase
