Quick Details
-
Product name:
-

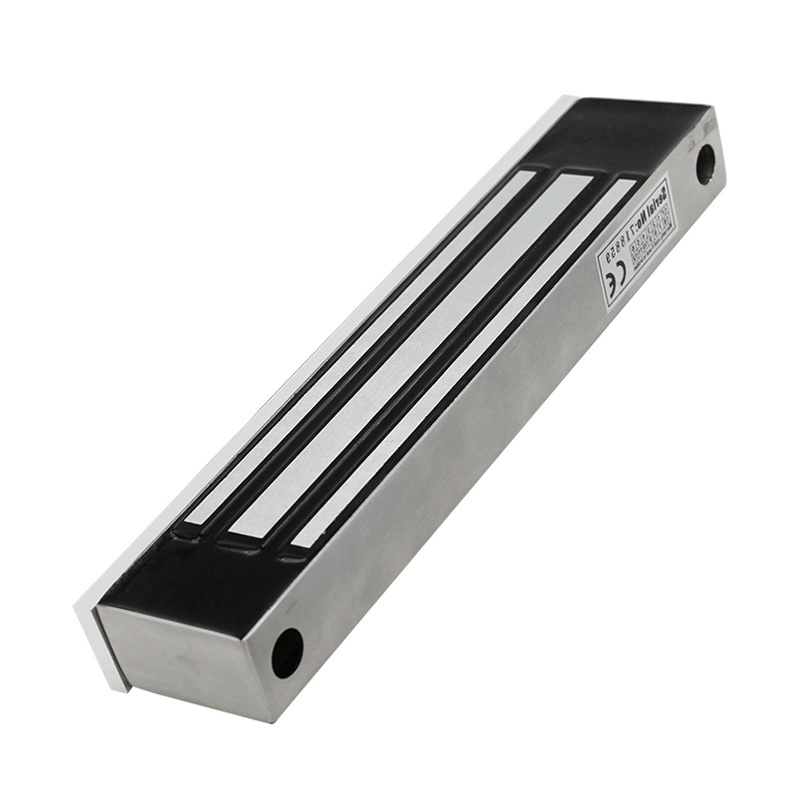

Waterproof 280K 600LBS EM Magnet Lock
-
Standard Bearing:
-
280kg/600LBS
-
Current:
-
DC12V/450mA or DC24V/200mA
-
Mount:
-
Surface Mounted
-
LED Indicator:
-
with LED fixed light status
-
Wire:
-
2 wires
-
Suitable for:
-
wood door; glass door, metal Door and fireproof door
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Camel / OEM
-
Model Number:
-
EL280SW
-
Product name:
-
Waterproof 280K 600LBS EM Magnet Lock
-
Standard Bearing:
-
280kg/600LBS
-
Current:
-
DC12V/450mA or DC24V/200mA
-
Mount:
-
Surface Mounted
-
LED Indicator:
-
with LED fixed light status
-
Wire:
-
2 wires
-
Suitable for:
-
wood door; glass door, metal Door and fireproof door
IP66 280kg 600LBS waterproof single door electromagnetic lock magnetic card electric locks for outdoor lock
Datasheet for Waterproof Outdoor Door access control system set 2 wires 12v 280kg 600LBS Electromagnetic EM electric Magnetic door Lock for single wood / glass / metal / fireproof door
| Parameter | Description |
| Size |
250Lx47Wx26H single door
500Lx47Wx26H Double door |
| Holding Force | 280kg(600Lbs) |
| Input Voltage |
12/24VDC Single Door
12V DC Double Door |
| Current | 12V/500mA or 24V/250mA |
| Suitable | Wooden door , Glass door ,Metal door , Fireproof door |
| Surface Temp | ≤+20℃ |
| Operating Temp | -10~+55℃(14-131F) |
| Humidity | 0~90%(non-condensing) |
| Cover Finish | Anodized aluminum |
| Lock Finish | Zinc |
| Armature Plate Finish | Zinc |
| Weight | 2.1kg |
Optional waterproof bracket for extra selection
Multiple holes special design, more flexible for easy and convenient installation
Camel Access control 2 wires LED 280kg 600LBS Electromagnetic EM electric Magnet Lock for single wood / glass / metal / fireproof door with No Touch contactless Door Release Exit Button Application
More other models for your customers' choices based on Access control 2 wires LED 280kg 600LBS Electromagnetic EM electric Magnet Lock for single wood / glass / metal / fireproof door
