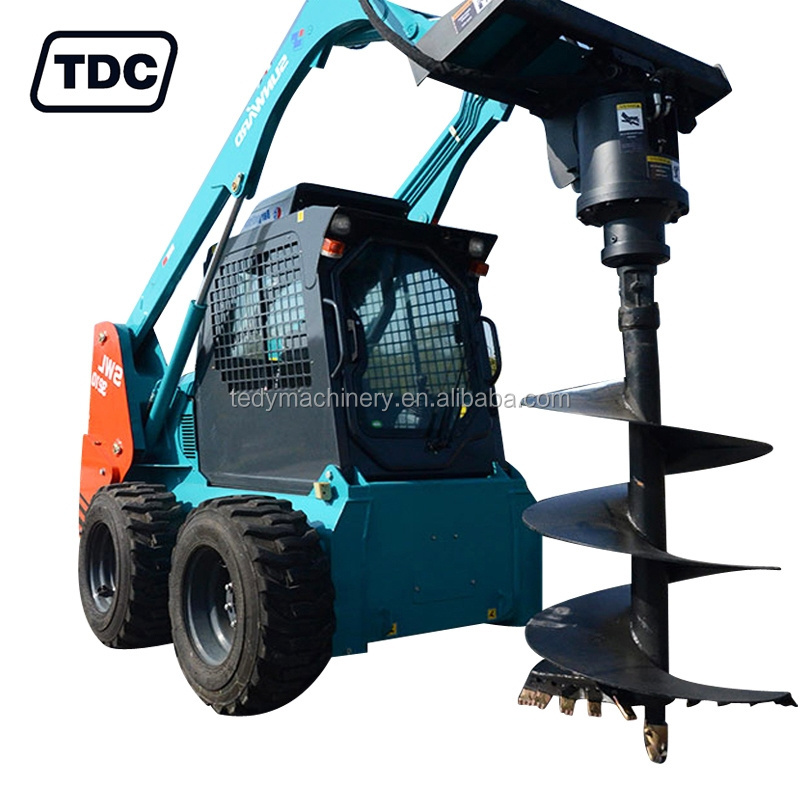

Tree planting earth drilling machine, hydraulic earth auger for sale

Tree planting earth drilling machine, hydraulic earth auger for sale

FOB Reference Price: Get Latest Price

≥1 Sets

US $3000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power:: hydraulic

Max torque:: 15000Nm

Output shaft:: 75mm square

Rod standard length:: 1500mm

Rod length with auger:: 1000mm

Suitable excavator:: 15-17tons

Excavator models:: KOMATSU, HITACHI, DOOSAN, CAT, CASE,VOLVO,etc

OEM, ODM:: yes

Quick Details

Feature:: Heavy Duty, Mini

Place of Origin:: Shandong, China

Condition:: new

Power:: hydraulic

Max torque:: 15000Nm

Output shaft:: 75mm square

Rod standard length:: 1500mm

Rod length with auger:: 1000mm

Suitable excavator:: 15-17tons

Excavator models:: KOMATSU, HITACHI, DOOSAN, CAT, CASE,VOLVO,etc

OEM, ODM:: yes

Tree planting earth drilling machine, hydraulic earth auger for sale

AUGER FEATURES:

1.Auger drilling machine is a kind of hole drilling auger machine, including double pin hitch, power head (including motor, gear box, input shaft, output shaft), auger drilling rod and bit.

2.Pin hitch is equipped with slide way and reduction gearbox which can slide along the slide way.

3.The reduction gearbox is connected with input shaft and output shaft.

4.The input shaft i s connected with hydraulic motor, and the output shaft is connected with drilling rod which is connected with drill bit.

AUGER SPECIFICATIONS:

model/item	suit excavator (ton)	torque (Nm)	pressure (bar)	flow (lpm)	output shaft diameter (mm)	drive diameter (mm)	drive weight (kg)
TDC2000	1.5-3	2510	60-238	20-70	65 round	200	55
TDC3500	2.5-4.5	3660	80-238	30-75	65 round	200	60
TDC5000	4.5-6	4980	80-238	50-150	75 square	244	135
TDC6000	4.5-6	5960	80-238	50-150	75 square	244	136
TDC7000	8-10	7300	80-238	60-160	75 square	270	151
TDC8000	8-10	7661	80-238	60-160	75 square	270	152
TDC12000	13-17	12300	80-238	70-180	75 square	290	155
TDC15000	15-17	15160	80-238	80-180	75 square	290	171
TDC20000	15-20	19200	80-238	80-170	75 square	290	192
TDC25000	17-30	24920	80-238	80-230	75 square	292	271

Remark: Auger diameter can be made 150mm,200mm,250mm,300mm,400mm,500mm, 600mm,700,mm,800mm, or OEM.

AUGER APPLICATIONS:

1--Landscaping

2--Tree planting

3--Well boring

4--Foundation piles

5--Screw pile installations

6--Ground source heat pumps

7--Pole and mast installations

FAQ:

Q:How to choose the correct auger drill?

A: 1.Based on the model of the excavator, backhoe, skid steer loader;

2.Based on the hole diameter;

3.Based on the hole depth;

4.Based on the ground type.

Q: When will the drill rod crack?

A: The rod will crack when the operators operate the auger drill machine against the manual.

Q: How many holes the auger drill machine can drill in one minute?

A: It depends on different working conditions, related with soil loosen, oil flow and pressure. For example, if drill 1.5m depth, 300mm diameter hole, it can drill one hole per 30 seconds if with the loosen earth.

Q: How long does the drill teeth need to change?

A: It depends on the soil property and working time. Normally, the drill teeth needs to change above 6 months with loosen earth and muck soil according to customers’ feedback; 1-3 months if the earth has some small stones.

Q: Why the output shafts of TD2000 and TD4000 are round, and the output shafts of the TD7000-TD25000 are square?

A: The torque of the bigger model auger drill is larger, and the friction force of the square output shaft is bigger, and not to be sliding.

Q: Why does it not been full welded between the auger and the rod?

A: It is easy to be out of shape if full welded.
