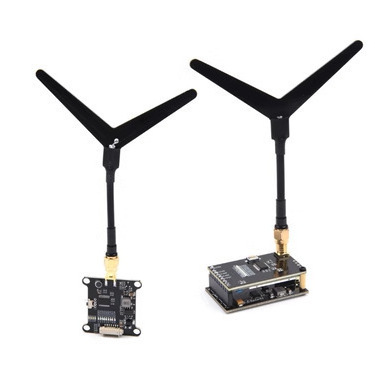

1.2G 1.3G 800mW VTX / VRX VTX-1G3SE Audio Video 1.2G VRX 1.3G VTX FPV Transmitter Receiver Module for RC FPV Racing Drone

Video Features: Video output impedance 75 Ω, typical video output level 1Vp-p, typical video polarity negative
Video frequency response ± 5 decibels, maximum 50 Hz~6 MHz
Differential gain ± 5%, maximum value; Differential phase ± 5 degrees, maximum
3dB IF broadband 16.5MHz
Signal-to-noise ratio S/N 38dB, Min.RSSI output voltage (-30dBm~-90dBm) 1.3-0.7V

VTX-1G3SE
DC characteristics
Power supply voltage 5.0V
Current consumption (280 ± 40) mA
Environmental regulations:
Working temperature -10~+65 ℃
Storage temperature -30~+85 ℃
Working humidity 85% RH
Radio Frequency (RF):
Receiving frequency range 1050~1380MHz
Input voltage standing wave ratio 2: 1
FM/PLL demodulation system
Intermediate frequency IF 480MHz
ANT. Input impedance 50 Ω, typical value LO frequency stability ± 200kHz
LO frequency accuracy ± 200kHz
LO control PLL
Input LO leakage -65dBm
Receiving sensitivity -95dBm
Input level range -95 dBm to+5 dBm
Due to different batches, the appearance, color and printed words of the product may vary, which will not affect the use
Material: PCB
colour: Black

Packing: One Set Per Giftbox (window box)

Shipping: Goods can be sent within 3-5 woking days after payment or deposit received

Shipping way: Sea shipment, Air shipment, Express shipment
