Quick Details
-
Application:
-
Industry
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Rock Fastener
-
Model Number:
-
DIN6796
-
Size:
-
M3-M20
-
Surface treatment:
-
65Mn, 55Si2Mn
-
Grade:
-
440HV
Quick Details
-
Finish:
-
ZINC
-
Style:
-
Conical
-
Material:
-
Steel, Stainless steel: A2,A4
-
Application:
-
Industry
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Rock Fastener
-
Model Number:
-
DIN6796
-
Size:
-
M3-M20
-
Surface treatment:
-
65Mn, 55Si2Mn
-
Grade:
-
440HV
Jiaxing Rock Industry Imp & Exp Co., Ltd. We are a professional hardware parts OEM manufacturer, we mainly provide customized services, according to your drawings to produce the corresponding products, our price is very favorable, waiting for your inquiry.
|
Items |
Description |
Picture |
|
|
Product name |

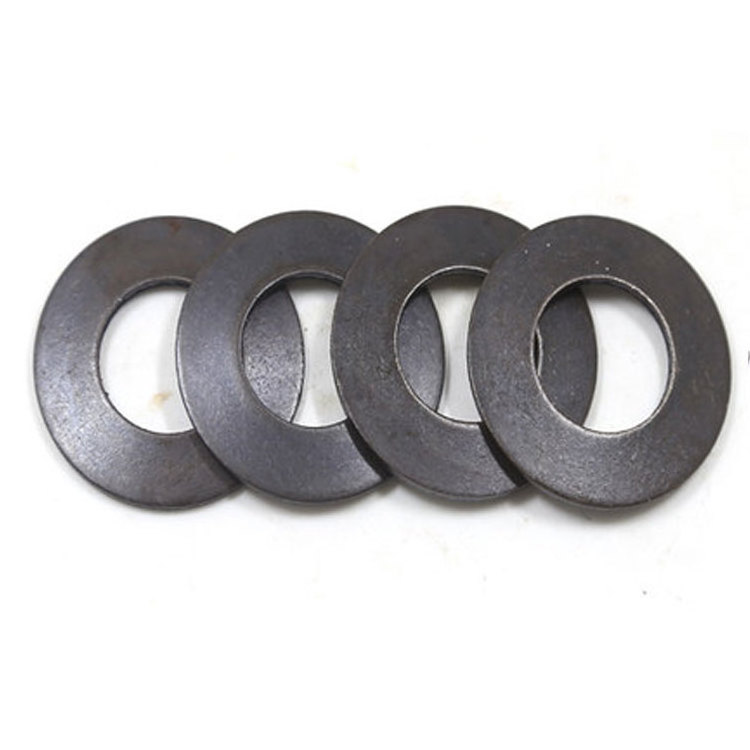

M3-M20 DIN6796 Conical Spring Steel Washer For Bolted Connections |
|
|
|
Material |
spring Steel, Stainless steel: A2,A4 |
||
|
Size |
M3-M30 |
||
|
Standard |
DIN or Customized |
||
|
For use with |
Bolts, Studs, Nuts |
||
|
Welcoming send us an inquiry with your dimensions.
We provide 24hours*7days service.
Click here for more information! |
| For thread size | d1 | d2 | s | h | |
| H14 | h14 | max. | min. | ||
| M2 | 2,2 | 5 | 0,4 | 0,6 | 0,5 |
| M2,5 | 2,7 | 6 | 0,5 | 0,72 | 0,61 |
| M3 | 3,2 | 7 | 0,6 | 0,85 | 0,72 |
| M3,5 | 3,7 | 8 | 0,8 | 1,06 | 0,92 |
| M4 | 4,3 | 9 | 1 | 1,3 | 1,12 |
| M5 | 5,3 | 11 | 1,2 | 1,55 | 1,35 |
| M6 | 6,4 | 14 | 1,5 | 2 | 1,7 |
| M7 | 7,4 | 17 | 1,75 | 2,3 | 2 |
| M8 | 8,4 | 18 | 2 | 2,6 | 2,4 |
| M10 | 10,5 | 23 | 2,5 | 3,2 | 2,8 |
| M12 | 13 | 29 | 3 | 3,95 | 3,43 |
| M14 | 15 | 35 | 3,5 | 4,65 | 4,04 |
| M16 | 17 | 39 | 4 | 5,25 | 4,58 |
| M18 | 19 | 42 | 4,5 | 5,6 | 5,08 |
| M20 | 21 | 45 | 5 | 6,4 | 5,6 |
| M22 | 23 | 49 | 5,5 | 7,05 | 6,15 |
| M24 | 25 | 56 | 6 | 7,75 | 6,77 |
| M27 | 28 | 60 | 6,5 | 8,35 | 7,3 |
| M30 | 31 | 70 | 7 | 9,2 | 8 |
