Quick Details
-
Product name:
-
X-ray Baggage Scanner
-
Certificate:
-
CE/ROHS/ISO9001
-
Application:
-
airports/stations/ports
-
Usage:
-
Security-check
-
size:
-
100(w)cm*100(h)cm
-
penertration:
-
43mm thick steel plate
-
Warranty:
-
1 year
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
PeaceGuarder
-
Type:
-
X-ray Machine
-
Product name:
-
X-ray Baggage Scanner
-
Certificate:
-
CE/ROHS/ISO9001
-
Application:
-
airports/stations/ports
-
Usage:
-
Security-check
-
size:
-
100(w)cm*100(h)cm
-
penertration:
-
43mm thick steel plate
-
Warranty:
-
1 year

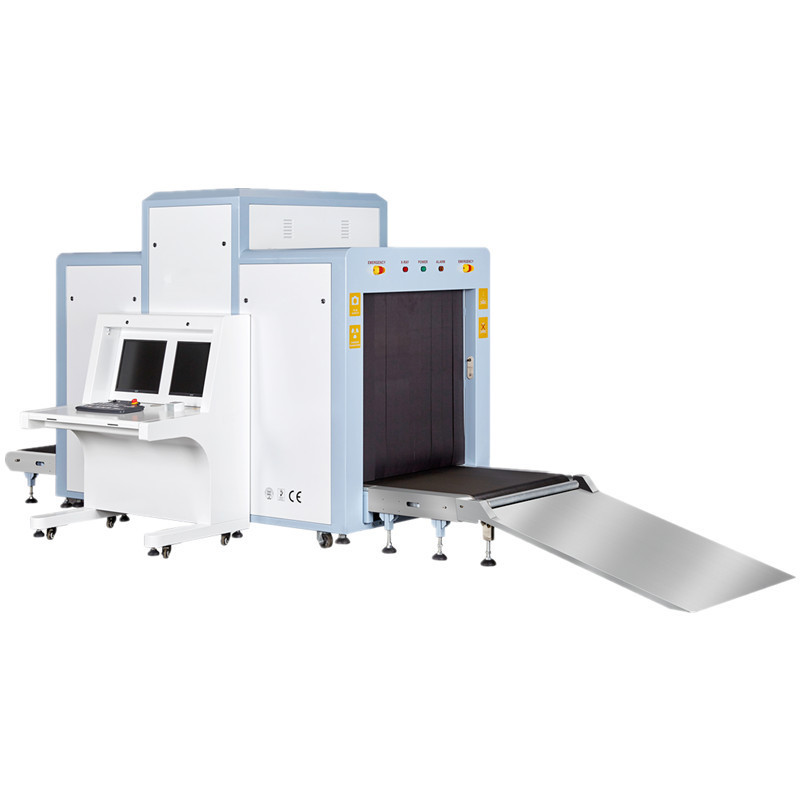

Airport Baggage Luggage Scanner Machine conveyor metal detector with Big Size 100*100mm X Ray Baggage Scanner
Quick Detail:
Alarm by sounds&light: Alarm by sound and light when confirm to condition
Network interface: It can connect to local area network and support multi-terminal check baggage at same time.
Safty ray: Transmit ray under automatic control, avoiding any baggage missing.
Image monitoring for user-friendly: The monitor use fold, rotary system, operators, adjusts the monitor position willfully according to our own need, reduce wearily.
Simple operation by mouse: Without keyboard and work table, control by mouse, save space.
Turn off a key control: Turn off the machine only need one step, revolove the key then the equipment automatic secuirty close down and no need complex steps.
Eagle-eye: It can be expediently observing enlarged area.
Estimate malfunction by self: Automatic estimate malfunction and prompt message, helpful for maintenance.
Specifications:
Tunnel size: 1000(W)x1000(H) mm
Conveyor speed: 0.22m/s
Conveyor max load: 200kg
Single inspection dosage: <1.5upGy
Wire resolution: 0.1mm metal line
Steel penetration: 43 mm amor plate
Film safety: for ISO 1600
Maxmum leakage radiation: <0.3ugy/H
Description:
Image performance system
X-ray sensor: 1 Type photo-diode array detector, 12bit
Monitor: High resolution 17inch color led display
Color quality: 24 bit real colors
Edge enhancement : object contour edge is more distinct
Super image enhancement: image detail is more distinct
High penetrate strength display: increase brightness of dark area in image to diplay object which is behind high absorption mass distinctly
Low penetrate strength display: increase brightness of image/decrease brightness of image
Image recurrence: display previous twenty images and process any one of them
Image restoration: restore image to initial status at the time of stopping conveyor
Image storing: real time store any image and process it in operation status
Main Advantages:
Storage temperature: -20°C to 60°C
Operating temperature: 0 °C to 45 °C
Relative humidity: 20 to 95% non-condensing
System power: 220VAC (±10%) 50±3HZ
Power wastage: 1.0KW(max)
Noise: <60DB
Payment and shippment:
| Payment term | |
| T/T directly,L/C formally, Escrow conventient, Western union etc. | |
| Shipping methods | |
| by air | 3-5 days, most expensive |
| by express | 5-7 days, more expensive |
| by sea | 15-28 days, cheapest |
