Quick Details
-
Use:
-
indoor/outdoor
-
Warranty Time:
-
1 year
-
Connector A:
-
SC/UPC
-
Fiber Mode:
-
OS2 9/125μm
-
Fiber Count:
-
1
-
Fiber Grade:
-
G.657.A1
-
Minimum Bend Radius:
-
10mm
-
Polish Type:
-
UPC
-
Cable Diameter:
-
0.9 mm
-
Cable Jacket:
-
PVC/LSZH
-
Insertion Loss:
-
≤0.3 dB
-
Return Loss:
-
≥55 dB
Quick Details
-
Type:
-
Fiber Pigtails
-
Model Number:
-
SC/UPC-SX
-
Brand Name:
-
APT
-
Use:
-
indoor/outdoor
-
Warranty Time:
-
1 year
-
Connector A:
-
SC/UPC
-
Fiber Mode:
-
OS2 9/125μm
-
Fiber Count:
-
1
-
Fiber Grade:
-
G.657.A1
-
Minimum Bend Radius:
-
10mm
-
Polish Type:
-
UPC
-
Cable Diameter:
-
0.9 mm
-
Cable Jacket:
-
PVC/LSZH
-
Insertion Loss:
-
≤0.3 dB
-
Return Loss:
-
≥55 dB
Product Description

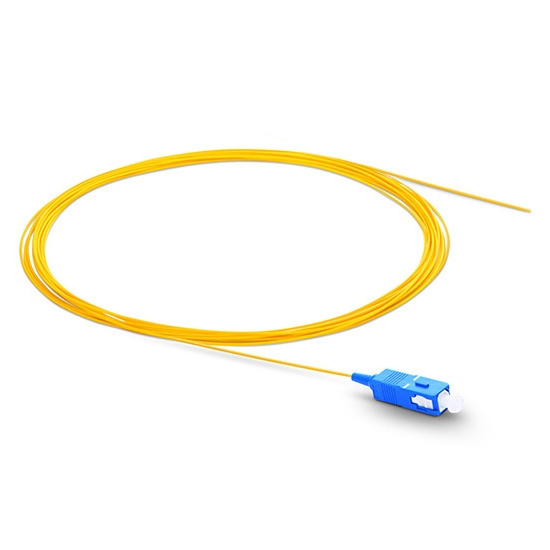

Simplex 9/125 Single Mode Fiber Optic Pigtail, 0.9 mm PVC/ LSZH Outer Jacket
Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.
Specification
|
item
|
Simplex SC/UPC Pigtail
|
|
Model Number
|
SC/UPC-SX
|
|
Type
|
Fiber Pigtails
|
|
Connector A
|
SC/UPC
|
|
Fiber Mode
|
OS2 9/125μm
|
|
Fiber Count
|
1
|
|
Fiber Grade
|
G.657.A1
|
|
Minimum Bend Radius
|
10mm
|
|
Polish Type
|
UPC
|
|
Cable Diameter
|
0.9 mm
|
|
Cable Jacket
|
PVC/LSZH
|
|
Insertion Loss
|
≤0.3 dB
|
|
Return Loss
|
≥55 dB
|
Packing & Delivery
carton dimension: 57*43*46cm,30kg/carton, 2000 pieces/carton
