650 L/S Air cooling greased lubricated turbo vacuum molecular pump pumps

650 L/S Air cooling greased lubricated turbo vacuum molecular pump pumps

FOB Reference Price: Get Latest Price

≥1 Sets

US $5949

≥4 Sets

US $5900

≥8 Sets

US $5845

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Warranty:: 15 months

Brand Name:: SJHT

Model Number:: HTFB-650ZF

Place of Origin:: Shandong, China

Structure:: molecular pump

Outlet Size:: 10 mm

motor:: yes

Product name:: High vacuum air cooling greased lubricated molecular vacuum pump

Cooling type:: Air-cooled

Ultimate Vacuum:: 8*10-8/5*10-7pa

Theory:: Vacuum Pumps

Usage:: Ultra high vacuum

Type:: HTFB-650ZF

Speed:: 24000rpm

Mounting direction:: Vertical ±5°

Weight:: 22kg

Quick Details

Application:: Automotive Industry, Metal and Equipment Manufacturers, Mining industry, Scientific research, PVD vacuum coating, CVD vacuum coating, Widely used in aerospace, semiconductor, energy

Pressure:: Ultra High Pressure

Voltage:: AC220V, AC220V

Warranty:: 15 months

Brand Name:: SJHT

Model Number:: HTFB-650ZF

Place of Origin:: Shandong, China

Structure:: molecular pump

Outlet Size:: 10 mm

motor:: yes

Product name:: High vacuum air cooling greased lubricated molecular vacuum pump

Cooling type:: Air-cooled

Ultimate Vacuum:: 8*10-8/5*10-7pa

Theory:: Vacuum Pumps

Usage:: Ultra high vacuum

Type:: HTFB-650ZF

Speed:: 24000rpm

Mounting direction:: Vertical ±5°

Weight:: 22kg

Product Overview

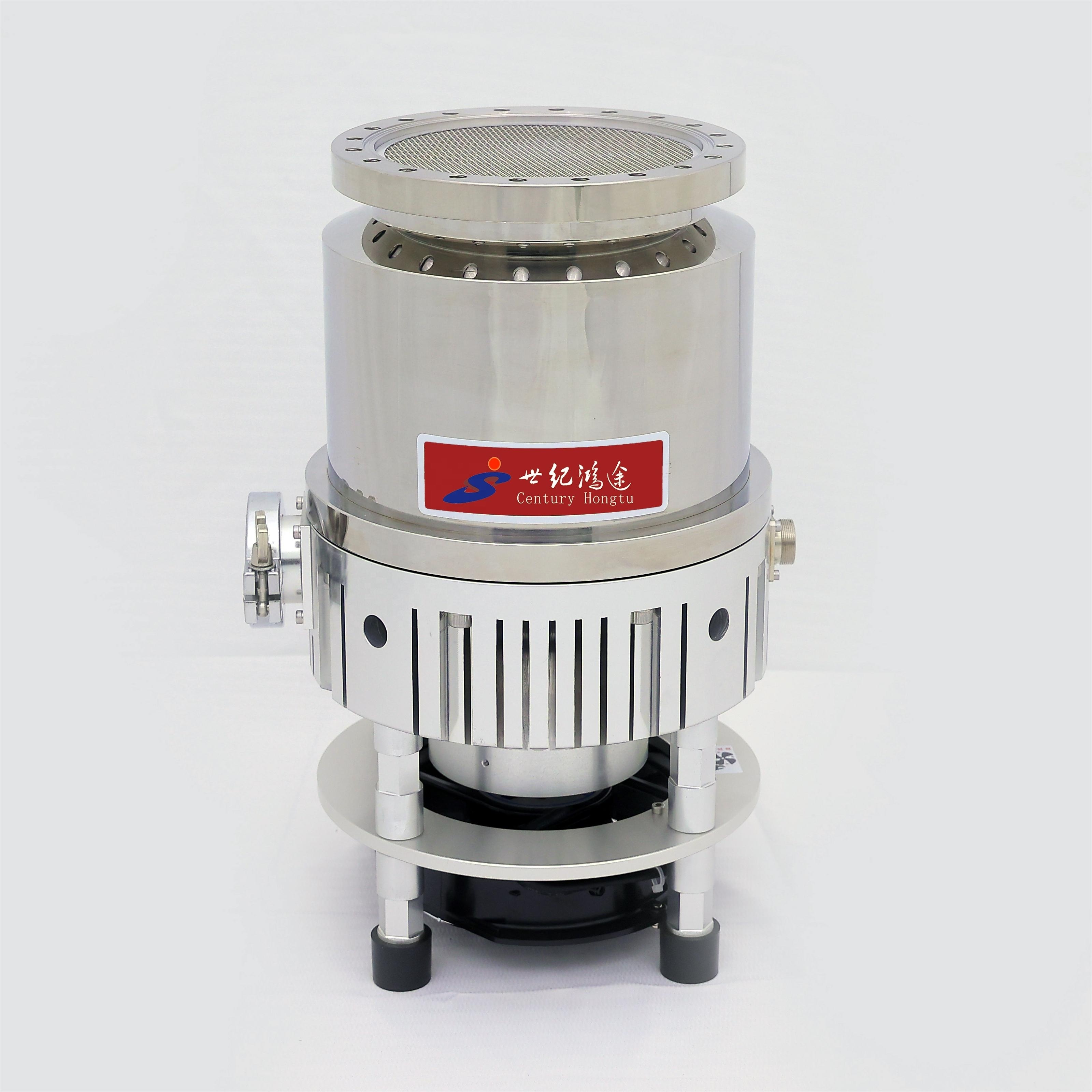

HT Series air-cooled compound molecular pump

The molecular pump is a series combination of a turbomolecular pump and a disk-type traction pump, offering the advantages of both to achieve high pumping speeds and high compression ratios over a wide pressure range.

Product name			HT series composite molecular pump
Warranty			15 months
Customized support			OEM, ODM, OBM
Brand Name			SJHT
Power Source			Electric
Pressure			High vacuum/ultra-high vacuum
Structure			Vacuum Pump
Voltage			AC 220V
Power			300 W
motor			yes
Usage			Ultra high vacuum
Type			JTFB-600F/JTFB-1200F/JTFB1600F
Motor speed			27000 rpm
Pumping Speed			600/1200/1600
Ultimate Vacuum			810-8/510-7
communication protocol			modbus RS232/485
Weight			25~31kg

HT series composite molecular pumps

produced by century hongtu

Helping you achieve a higher and cleaner vacuum environment

PRODUCT SPECIFICATIONS

Application

Optical thin film deposition equipment

Vacuum evaporation plating process

Mass spectrometer Surface analyze

Semiconductor Manufacturing

Lens coating equipment

Aerospace

Right elevation

Left elevation

Front elevation

Why choose us

Our factory was established in 2011, which is the source factory of vacuum molecular pump manufacturing, and can continuously provide you with high-quality products and services.
