Quick Details
-
Engine Brand:
-
CHANGCHAI/YANMA
-
Grade Ability:
-
35%
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
2255*1050*2445
-
Drum diameter:
-
630mm
-
Marketing Type:
-
Hot Product 2024
-
Product name:
-
Double Drum Vibratory Road Roller
-
Keywords:
-
Double Drum Vibration Roller
-
After-sales Service Provided:
-
Online Support
-
Drive Type:
-
Hydrostatic Drive
-
Engine:
-
CHANGCHAI/YANMAR
-
COLOR:
-
customization
-
Drive mode:
-
Variable displacement piston Pump infinitely variable tow-wheel series
-
vibrating drum:
-
front
-
Drive form:
-
Hydraulic motor
Quick Details
-
Type:
-
Vibratory Roller
-
Power:
-
19kw, 17.8kw
-
Weight:
-
2.45 ton
-
Engine Brand:
-
CHANGCHAI/YANMA
-
Grade Ability:
-
35%
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
2255*1050*2445
-
Drum diameter:
-
630mm
-
Marketing Type:
-
Hot Product 2024
-
Product name:
-
Double Drum Vibratory Road Roller
-
Keywords:
-
Double Drum Vibration Roller
-
After-sales Service Provided:
-
Online Support
-
Drive Type:
-
Hydrostatic Drive
-
Engine:
-
CHANGCHAI/YANMAR
-
COLOR:
-
customization
-
Drive mode:
-
Variable displacement piston Pump infinitely variable tow-wheel series
-
vibrating drum:
-
front
-
Drive form:
-
Hydraulic motor
Products Description

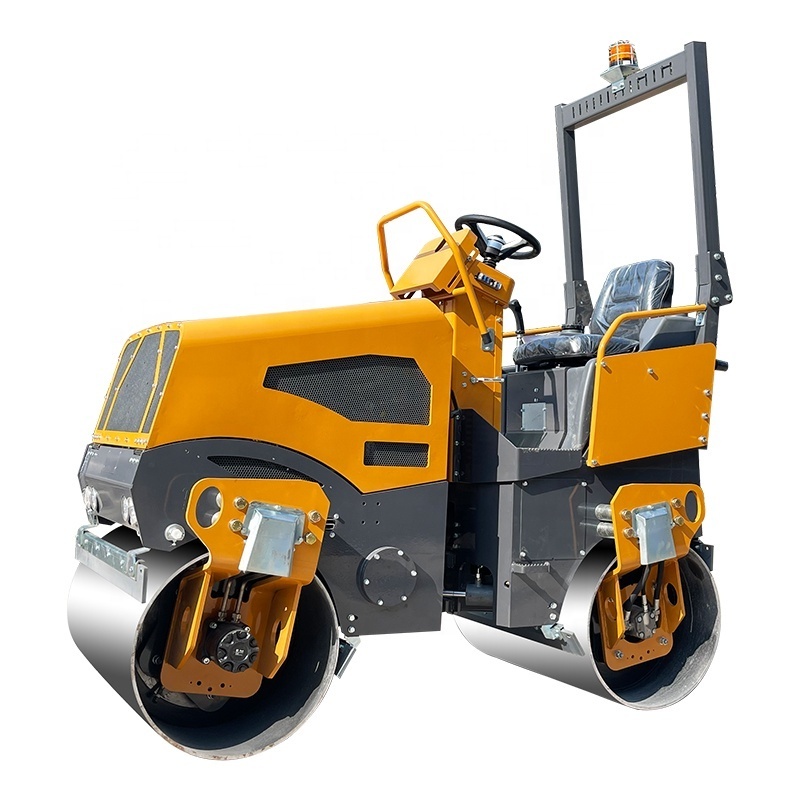

ZWS2500 articulated double steel wheel vibratory roller, performance characteristics: nameplate engine strong power, quality assurance, hawk-eye fuselage design, wide vision, beautiful and generous, using imported hydraulic variable pump and quantitative motor, continuously variable speed, front and back walking. One-button operation, the control instrument panel is fully functional, the front and rear lighting warning lights are equipped, the construction can be carried out at night, the optical driving is in line with human engineering, the product has passed CE certification, and the Red Star Award design.
Specification
|
Description
|
|
Unit
|
ZWS2500
|
||
|
Overall length (L)
|
|
mm
|
2255
|
||
|
Working width(w)
|
|
mm
|
1050
|
||
|
Overall height(H)
|
|
mm
|
2445
|
||
|
minimum height(H)
|
|
mm
|
1770
|
||
|
Drum width
|
|
mm
|
900
|
||
|
Drum diameter
|
|
mm
|
630
|
||
|
Wheelbase
|
|
mm
|
1565
|
||
|
operating weight
|
|
kg
|
2500
|
||
|
static line load
|
|
n/cm
|
110/105
|
||
|
Engine
|
|
CHANGCHAI3M78/YANMAR 3TNV80
|
HONDA GX390
|
||
|
Output power
|
|
kw
|
CHANGHAI 19KW YANMAR 17.8KW
|
||
|
Rotating speed
|
|
rpm
|
3200
|
||
|
walking speed
|
|
km/h
|
0-10
|
||
|
theoretical climbing ability
|
|
°
|
30
|
||
|
working brake
|
|
|
gerotor motor
|
||
|
steering method
|
|
|
Hydraulic steering
|
||
|
steering system
|
|
|
Swing articulated
|
||
|
Vibrating drum
|
|
|
Front
|
||
|
Drive form
|
|
|
mechanical transmission Electromagetic clutch
|
||
|
Vibration frequency
|
|
HZ
|
65
|
||
|
Vibration amplitude
|
|
mm
|
0.5
|
||
|
Exciting force
|
|
kn
|
35
|
||
|
sprinkler system form
|
|
|
intermittent pressure spray
|
||
|
Hydraulic oil capacity
|
|
L
|
45
|
||
|
Fuel capacity
|
|
L
|
36
|
||
|
water tank capacity
|
|
L
|
160
|
||
