Quick Details
-
Dimension(L*W*H):
-
2250mm*11500mm
-
Year:
-
new
-
Power (kW):
-
5.5 kW
-
Weight (KG):
-
5200 KG
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
fanghan
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2250mm*11500mm
-
Year:
-
new
-
Power (kW):
-
5.5 kW
-
Weight (KG):
-
5200 KG

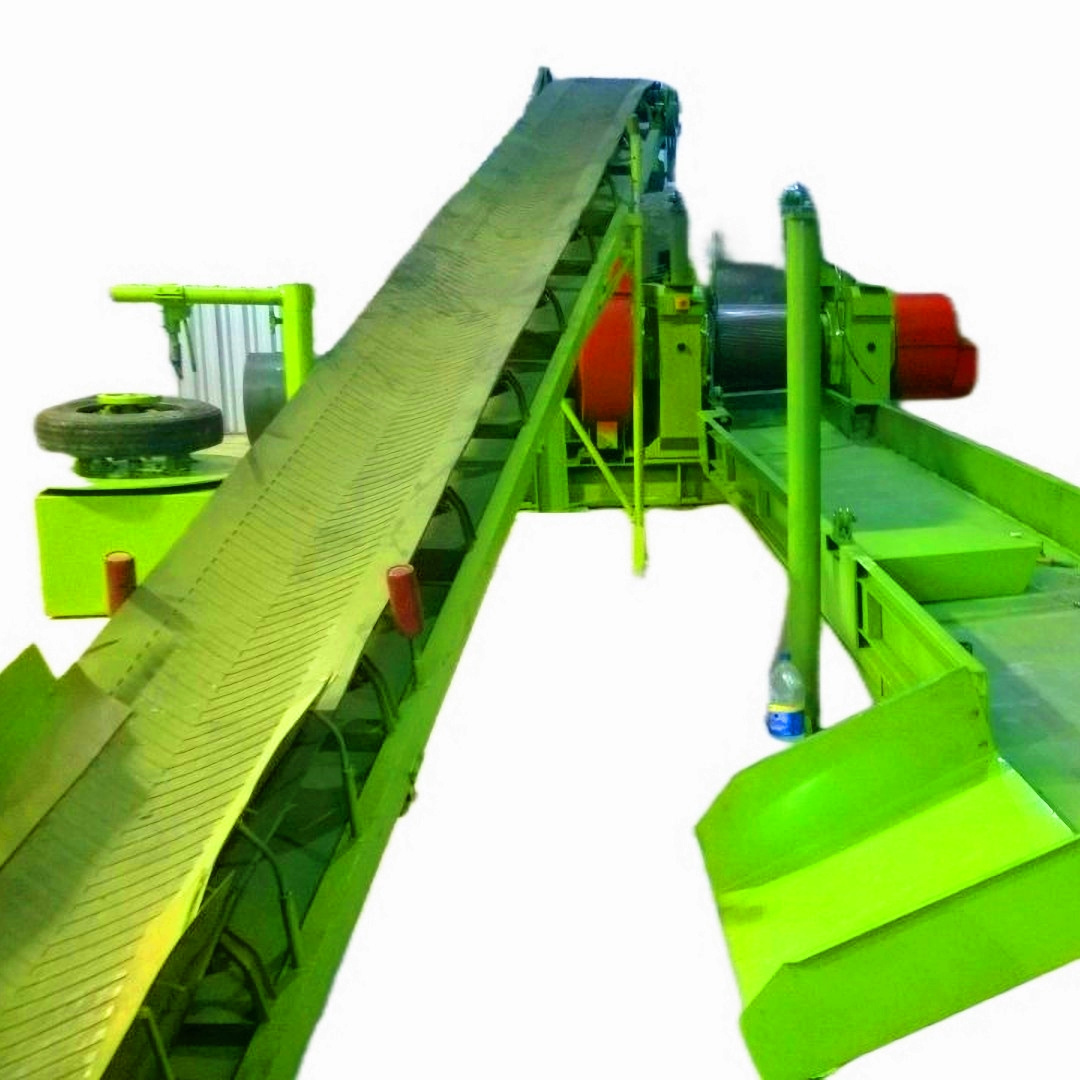

Tire recycle rubber machine/ tire recycling line to rubber powder/tire recycling equipment
Our factory can supply the semi-auto and automatic machien,you can make the decision as your requirements.
High quality Semi Automatic Scrap Old Waste Tire/Tyre Recycling Machine for sale Process flow:
waste tire→cutting diameter of hub→cutting strips→cutting blocks→separate steel wire→crush rubber blocks→making powder→magnetic separation→final products(rubber powder)
1. Ring cutter
Function: whole tire will be cut into tire crown, the side of the tire and inner circle
|
|
|
|
|
|
|
|
|
|
|
|
|
|
2. Strips cutter
Function: various tire, glue, glue board piece cut into long strips
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3. Block cutter
Functions: this machine should cut machine tyres, used for supporting the use of the strip cut into 3-5CM glue pieces.
|
|
|
|
|
|
|
|
|
|
|
|
4. rubber crusher machine
|
MACHINE NAME |
Rubber crusher |
|
Front roll diameter |
560 mm |
|
Back roll diameter |
510 mm |
|
Working length |
800 mm |
|
Liner speed |
25.6 m/min |
|
Friction ratio |
1:1.3 |
|
Max. nip |
15 mm |
|
Capacity per hour |
500-1000 |
|
Out put powder mesh |
5-28 mesh |
|
Power |
110 kw |
|
Size |
4770×2300×1700 |
|
Weight |
20000 kg |
Construction & Principle:
It mainly consists of the motor, cutting blades, static blades, frame, oil cylinder, hydraulic system, control box, etc.
Its basic principle is: The oil cylinder and hydraulic system are driven by a motor. Put the tyre without wire bead on the stand of the static blades. The tyre is fixed by locking arms tightly then cut by the blades driven by oil cylinder. The tyre is cut into several blocks, which will be more easily crushed or shredded for the next process.
other produtct
Qingdao Fanghan machine Co., Ltd. is in Northern China qingdao city. Our company was established in march, 2022, Our company mainly provides various rubber product equipment, such as flat vulcanizing machines, banbury mixers, rubber fining mixers, rubber cutting machines, extruders and waste tyre recycling machines rubber tile vulcanizer machine rubbber kneader and so on,We are in a very good position to supply most grades of rubber machine at competitive prices and for good delivery.
