Quick Details
-
Brand Name:
-
Dongfeng, Sinotruk Howo, Isuzu, Shacman, JMC, FAW
-
Product name:
-
synchronous gravel sealer truck
-
Application:
-
Sparyer bitumen
-
Name:
-
Asphalt Sprayer synchronous chip sealerTruck
-
Keywords:
-
Asphalt Truck
-
After-sales Service Provided:
-
Online Support
-
Usage:
-
Building Coating Road
-
Type:
-
Hydraulic
-
Function:
-
Easy Operation
-
Key words:
-
Gravel sealer truck
-
Certification:
-
ISO9001
Quick Details
-
Weight (KG):
-
18000
-
Marketing Type:
-
New Product 2023
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Dongfeng, Sinotruk Howo, Isuzu, Shacman, JMC, FAW
-
Product name:
-
synchronous gravel sealer truck
-
Application:
-
Sparyer bitumen
-
Name:
-
Asphalt Sprayer synchronous chip sealerTruck
-
Keywords:
-
Asphalt Truck
-
After-sales Service Provided:
-
Online Support
-
Usage:
-
Building Coating Road
-
Type:
-
Hydraulic
-
Function:
-
Easy Operation
-
Key words:
-
Gravel sealer truck
-
Certification:
-
ISO9001
Product Description
New Asphalt Distributor Gravel Sealer Truck Bitumen distributor chip spreader truck for sale

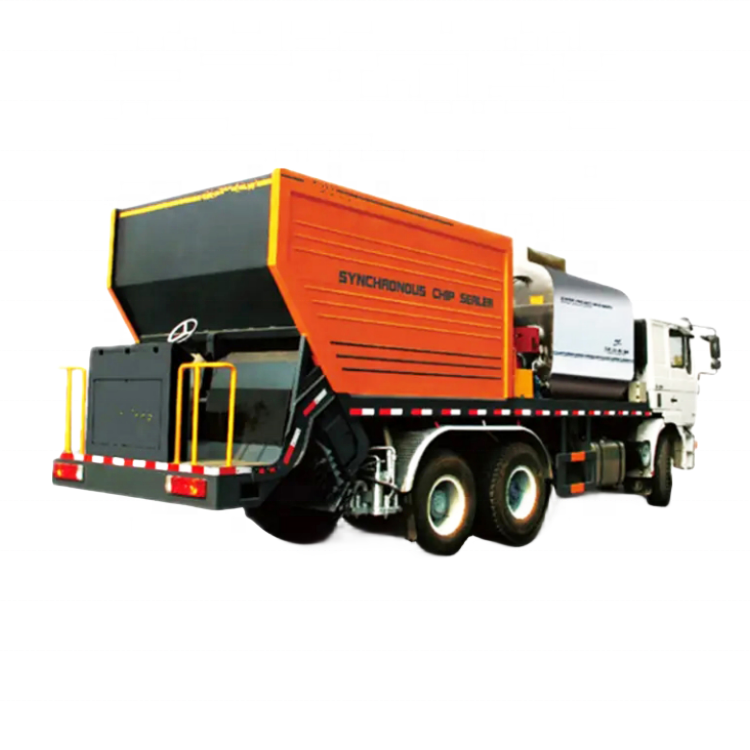

The detail image of the Synchronous gravel sealer truck
Reference appearance (this picture is for reference only, subject to the actual order of the customer)
Specification
| Product Brand | CLW | Tanker capacity (m3) | 6 |
|
Model
|
CL5121GLQ6LS | Overall Dimensions(mm) | 7080×2350×3000 |
|
G.V.W(Kg)
|
9750 | front/rear overhang (mm) | 1180/2100 |
| Rated Weight Kg) | 3955 | Wheel Base (mm) | 3800 |
|
Curb Weight (Kg)
|
5600 | Max. Speed(Km/h) | 80 |
| Cab |
3
|
Axles No. | 2 |
| App./Dep. angel (° ) | 22/10 | Axle load(Kg) | 3400/6350 |
| Tanker Information: | |||
| Transport medium | liquid asphalt | Density | 900kg/CBM |
| Tanker overall dimension (mm) |
3200*1800*1400
|
Tanker insulation thickness
|
50mm |
|
Tanker Internal Dimension(mm)
|
3100*1700*1300 | Spray width | 4.5-6M |
| Asphalt Intelligent nozzle No | 30 | Heatiing Mode | conduction oil heating automatically |
|
Pump Information:
|
|||
| Pump and valve | Asphalt Pump Oil Hydraulic Pump Asphalt Pump Hydraulic drive motor Hydraulic System Proportional Valve | ||
| Chassis parameter | |||
|
Chassis Model
|
EQ1110T9ADJ3AC
|
Tires No. | 6 |
|
Brand
|
Dongfeng
|
Tire Size | 8.25-16 |
| Overall Dimensions(mm) | 6695×2285,2180×2380,2480 | Front Tread (mm) | 18,311,750 |
| App./Dep. angel (° ) | 22/13 | Rear Tread(mm) | 16,401,586 |
| Spring No. | 11/9+7,8/10+7 | Displacement (ml) | 3856 |
| Type of Fuel | Diesel | Emission standard | Euro III |
|
Engine Model
|
CY4102-C3C |
Power(Kw)
|
88 |
