Quick Details
-
Brand Name:
-
AMBOHR
-
Product name:
-
2023 pornd grade check valve
-
Color:
-
White
-
Body material:
-
PVDF
-
Certificate:
-
ISO CE
-
Maximum temperature:
-
120℃
-
Opening pressure:
-
≤2 kpa
Quick Details
-
Port Size:
-
1/8 inch, 1/8"
-
Place of Origin:
-
Shaanxi, China
-
Model Number:
-
DCV0416DVL
-
Brand Name:
-
AMBOHR
-
Product name:
-
2023 pornd grade check valve
-
Color:
-
White
-
Body material:
-
PVDF
-
Certificate:
-
ISO CE
-
Maximum temperature:
-
120℃
-
Opening pressure:
-
≤2 kpa
Test Drive This Product
Still not sure? We offer free product samples for many of our products.
No strings attached. We believe in our products and we
think you will too, once you give them a try.
Get A
FREE
Sample >>>
Product Description

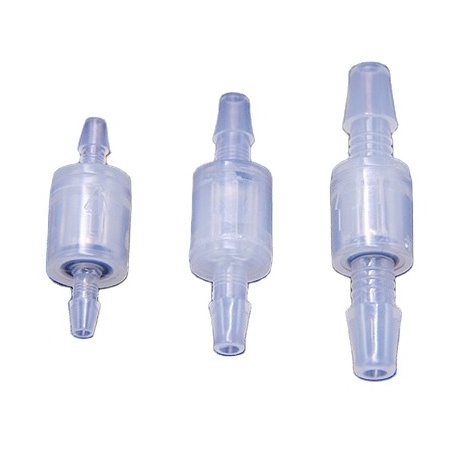

DCV0416DVN small plastic anti-ozone diaphragm check valve
Diaphragm check valves have three parts including inlet end, outlet end and diaphragm, it can be applied to industries such as automobiles, chemicals, and food...
Optional Materia
l
• Ozone sterilization system: FKM is always used as body material as it has excellent oxidation resistance.
• Fuel pipeline system: Nylon is always used as body material as it has excellent ability of high temperature resistance and anti-aging.
• Chemical reagent pipeline: PP is always used as body material as it has excellent ability of acid, alkali, and corrosion resistance.
• Ordinary air pipeline: ABS is always used as body material as it is economical and has good seal-ability.
|
Part number
|
Optional Material
|
|
|
|
||||
|
A
|
PA66
|
ABS
|
PP
|
PVDF
|
||||
|
B
|
PA66
|
ABS
|
PP
|
PVDF
|
||||
|
C
|
EPDM
|
VMQ
|
FKM
|
FFKM
|
||||
|
Material can be customized
|
|
|
|
|
||||
Under certain pressure, when medium re-flux is happening, it will push the diaphragm to seal the channel.
Under certain pressure，when medium comes from the inlet, it will flow around the diaphragm to the outlet end.
|
Code
|
Specification
|
a（±0.5）
|
b（±0.5）
|
d（±0.1）
|
|
0116
|
1/16"
|
ø19.0
|
ø2.8
|
ø1.5
|
|
0216
|
1/8"
|
ø19.0
|
ø4.5
|
ø1.9
|
|
0316
|
3/16"
|
ø19.0
|
ø6.0
|
ø3.1
|
|
0416
|
1/4"
|
ø19.0
|
ø7.8
|
Ø4.5
|
|
0516
|
5/16"
|
ø19.0
|
ø9.5
|
ø6.5
|
|
0616
|
3/8"
|
ø19.0
|
ø10.5
|
ø6.4
|
|
Code
|
Specification
|
a（±0.5）
|
b（±0.5）
|
c（±0.1）
|
d（±0.1）
|
|||||
|
0216
|
1/8"
|
32.6
|
ø19.5
|
ø4.5
|
ø1.9
|
|||||
|
0316
|
3/16"
|
43.0
|
ø19.5
|
ø6.4
|
ø3.3
|
|||||
|
0416
|
1/4"
|
42.9
|
ø19.5
|
Ø8.8
|
Ø4.5
|
|||||
|
Code can be customized
|
|
|
|
|
|
|||||
• Installation method: straight-in hose
• Opening pressure: less than 2kpa
• Maximum back pressure: 2kg
• Structure: diaphragm check valve
Hose connection size options
•
0116: Suitable for 1/16" inner diameter
hose interface 1/16"≈ 1.6mm
•
0216: Suitable for 3/32" inner diameter
hose interface 3/32"≈ 2.4mm
•
0316: Suitable for 3/16" inner diameter
hose interface 3/16"≈ 4.8mm
• 0416: Suitable for 1/4" inner diameter
• 0416: Suitable for 1/4" inner diameter
hose interface 1/4"≈ 6.4mm
• 0516: Suitable for 5/16" inner diameter
• 0516: Suitable for 5/16" inner diameter
hose interface 5/16"≈ 7.9mm
• 0616: Suitable for 3/8" inner diameter
• 0616: Suitable for 3/8" inner diameter
hose interface 3/8"≈ 9.5mm
• 0816: Suitable for 1/2" inner diameter
• 0816: Suitable for 1/2" inner diameter
hose interface 1/2"≈ 12.7mm
WHY AMBOHR OZONE GENERATORS ARE SUPERIOR
• B etter uniformity of dimension.
• The ultrasonic welding technique can make products solid and effectively.
• Reduce cost.
Product Application
ONE PASS & NON-RETURN
Auto Industry：Automobile fuel system, Wiper system and Carbon tank system
Chemical Industry：Pesticide mixture and irrigation
Food and Beverage：Coffee machine, Beer fresh-keeping, Liquid filling machine
Industrial Machinery：Ink supply system, Fuel supply system、Water cycle refrigerating system
Medical Auxiliary Instruments：Medical air bed、Oxygen generator, Rehabilitation system after
surgery, Ozone sterilization device
Swimming Pool and Hydrotherapy：Disinfecting system of circulating water
Water treatment：Ozone ions purify water
