Quick Details
-
Brand Name:
-
HongRui
-
Model Number:
-
HR500-AF-42
-
Place of Origin:
-
Guangdong, China
-
Product:
-
Industrial Switch
-
Type:
-
Unmanaged
-
Warranty:
-
5 Years Warranty
-
Certification:
-
3C,CE,FCC,ROSH, FCC, CE, RoHS
-
Input Voltage:
-
5-55V
-
Working Temperature Range:
-
-40℃-85℃
-
Industry Performance:
-
IP30 Protection
-
Double installation:
-
Din rail installation
-
Application:
-
6KV Lightning Protection
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
1.6Gbps
-
Brand Name:
-
HongRui
-
Model Number:
-
HR500-AF-42
-
Place of Origin:
-
Guangdong, China
-
Product:
-
Industrial Switch
-
Type:
-
Unmanaged
-
Warranty:
-
5 Years Warranty
-
Certification:
-
3C,CE,FCC,ROSH, FCC, CE, RoHS
-
Input Voltage:
-
5-55V
-
Working Temperature Range:
-
-40℃-85℃
-
Industry Performance:
-
IP30 Protection
-
Double installation:
-
Din rail installation
-
Application:
-
6KV Lightning Protection
|
General parameter |
||||||
|
Product name |

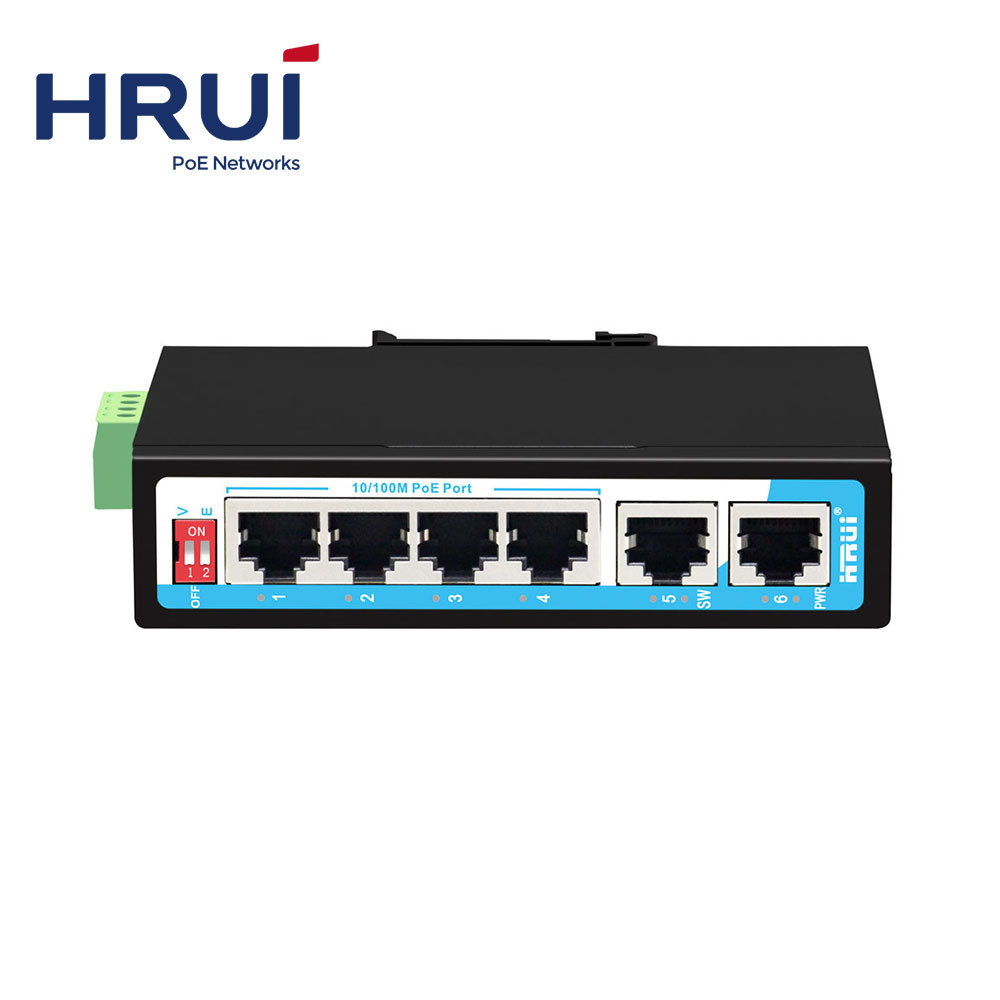

6 ports 10M/100M Industrial intelligence standard POE Switch |
|||||
|
Model |
HR500-AF-42 |
|||||
|
Connector Type |
4*10/100M POE ports +2* 10/100M Uplink Ethernet port |
|||||
|
Network Protocols |
IEEE802.3 IEEE802.3u IEEE802.3x |
|||||
|
POE Parameters |
POE Standard: IEEE802.3at (30W) and IEEE802.3af (15.4w) |
|||||
|
Each port Max:15.4 W (IEEE 802.3af) Each port Max:30 W (IEEE 802.3at) |
||||||
|
POE compatibility:IEEE 802.3af/at adaptive |
||||||
|
POE port output: DC 52V |
||||||
|
POE power supply core:1/2+ ; 3/6- |
||||||
|
Network Media |
10BASE-T: Cat3,4,5 UTP(≤100 m) 10BASE-T:Cat6 or more UTP(≤250 m) 100BASE-TX: Cat5 or more UTP(≤100 m) |
|||||
|
LED indicator |
PWR (Power supply indicator Red ) |
Lighting:Powered Un-Light:No Power |
||||
|
SW (DIP indicator Green) |
1 |
2 |
Indicate |
Mode |
||
|
off |
off |
No light |
Standard swapping |
|||
|
on |
off |
Lighting |
VLAN |
|||
|
off |
on |
Slow flash |
Extend |
|||
|
on |
on |
Quick flash |
VLAN+Extend |
|||
|
1-6 (Green) |
Lighting:Connecting Flashing:Data Transmit Un-Light:Disconnect |
|||||
|
Power Supply |
Power input: DC48~55V power supply wiring: 4 PIN terminal block (redundancyV1+V1-,V2+V2-) |
|||||
|
Working Environment |
Operating Temperature: -40~85℃ Storage Temperature: -40~85℃ Humidity: 5%~95 %( non-condensing) |
|||||
|
Industry Standard |
EMI: FCC Part 15, CISPR (EN55032) class A EMS: EN61000-4-2 (ESD) EN61000-4-4 (EFT) EN61000-4-5 (Surge) Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
|||||
|
Mechanical Structure |
Shell protect grade: IP40 Installation: DIN rail N.W:0.409KG G.W: 0.489KG(without power supply) Product Dimension (L×W×H): 119MM*87MM*28MM Package Dimension(L×W×H): 175MM*130MM*55MM |
|||||
|
Certification |
CE mark, commercial
|
|||||
|
Package Contents |
1. Industrial Switch: 1 unit 2. User Guide:1unit 3. Certificate warranty card:1unit |
|||||
|
MTBF |
100,000 hours |
|||||
|
Warranty |
5 years |
|||||
|
Hardware parameter |
||||||
|
Bandwidth |
1.6Gbps |
|||||
|
Cache |
512K |
|||||
|
Chipset |
RTL8309NI |
|||||
|
Package Forwarding Rate |
0.8928Mpps |
|||||
|
MAC address |
2K |
|||||
|
Forwarding mode |
Store-and-forward |
|||||
